Table 4 - Propane Restrictors Replacement Part

Numbers

Burner Model

Restrictor

Part Number

Restrictor

Inside

Diameter

O-Ring Part

Number

CG15.1S

3246709U

0.532

3226401U

CG15.2S

3246710U

0.576

3226401U

CG15.3S

3246711U

0.623

3226401U

CG15.4S

3246712U

0.677

3226401U

CG25.1S

3246713U

0.712

3226402U

CG25.2S

3246714U

0.742

3226402U

CG25.3S

3246715U

0.796

3226402U

CG25.4S

3246716U

0.833

3226402U

CG25.5S

3246717U

0.889

3226402U

CG50.1S

3246718U

0.925

3226403U

CG50.2S

3246719U

0.980

3226403U

CG50.3S

3246720U

1.031

3226403U

CG50.4S

3246721U

1.103

3226403U

CG50.5S

3246722U

1.150

3226403U

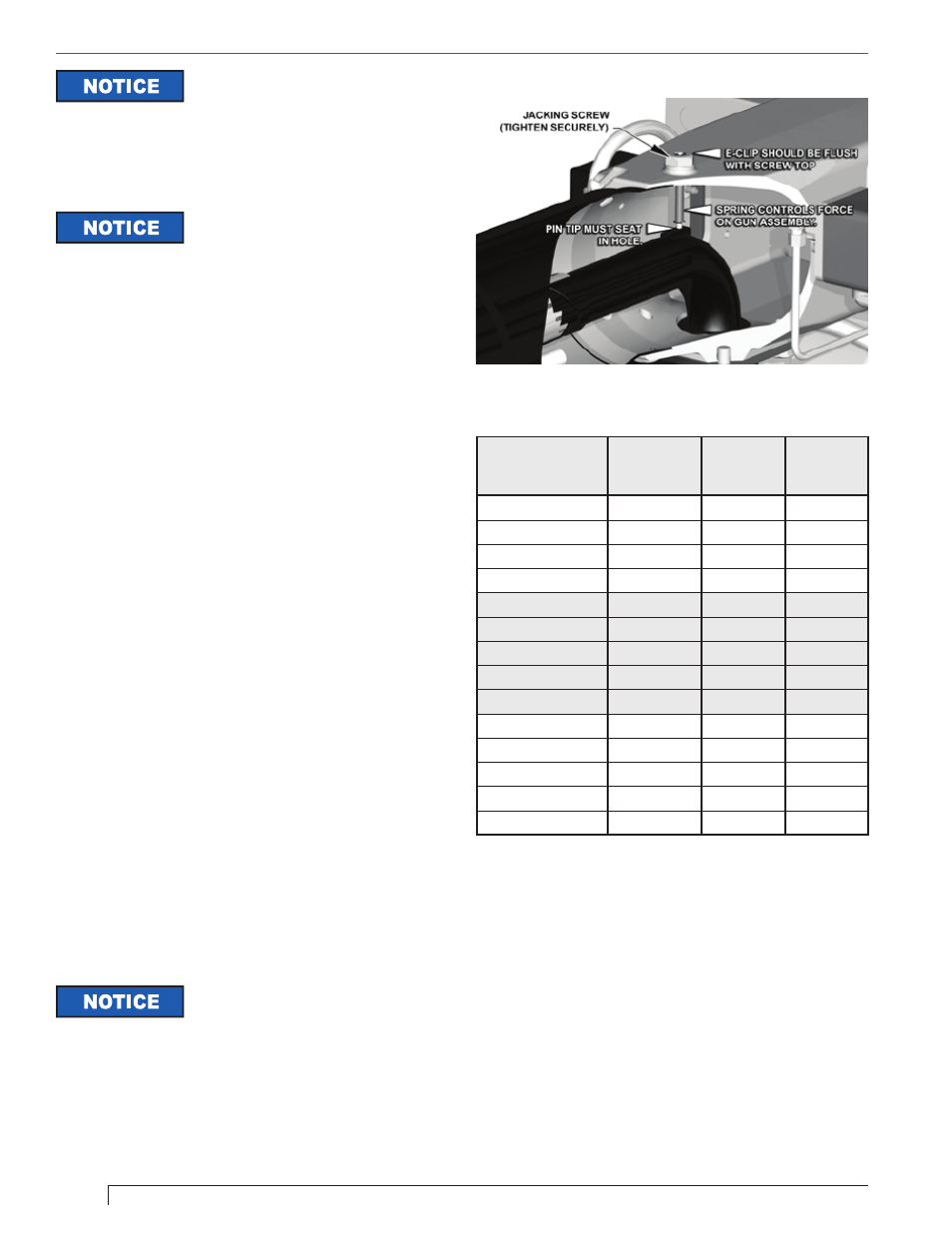

Figure 18 – Gas Gun Installation

Remove the jacking screw (B) from the housing to
free the internal gas tube (C).
Gently rock the internal gas tube (C) to loosen the
tube from the burner housing (D).
Inspect the O-rings and insure that they are
properly lubricated. (A silicon O-ring lubricant is
recommended, but automotive chassis or bearing
grease is an acceptable substitute.)
Referring to Figure 17, place the restrictor (F)
with pre-attached, pre-lubricated O-ring (G) into
the internal gas tube (C). Use your hand to press
the restrictor into the tube. The O-ring will hold the
restrictor in place.
Insure that the O-ring (H), attached to the outside
diameter of internal gas tube, is properly lubricated
and seated against the fl ange on the internal gas
tube.
Install the internal gas tube (C) back into the housing,
refer to Figure 16. Fit the end of the tube into the
external gas manifold (E).
Re-install the jacking screw (B). (Refer to the above
notice for installation details.)
Fill out and place the supplied Conversion Data Plate
adjacent to the rating plate.
Complete and attach the supplied Adjustment Data

1.

2.

3.

4.

5.

6.

7.

8.

9.

Use authorized replacement parts
only. Restrictors are precision-

machined parts and O-rings are rated for fuel contact.
Do not attempt to replicate or modify any parts. Refer to
Table 4.

The gun assembly is secured inside
the air tube by a spring-loaded

jacking screw. It is spring loaded in order to control the
force it can impose on the gun assembly. When installing
the jacking screw look inside the air tube to verify that
the pointed tip of the jacking screw pin is seated into the
small slot on the locating pad on top of the gun. There
is also an external verifi cation of correct assembly: when
the screw is fully tightened, the e-clip on the top of the
center pin should come fl ush with the top of the screw.
Refer to Figure 18.

With the gas restrictor installed, as
shown in Figures 16 & 17, all burner

air adjustments and gas manifold pressure adjustments
for propane will be approximately the same as the natural
gas adjustments shown in the burner manual, or printed
on the “Mfr’s Settings” label on the burner housing. For
a copy of the current burner manual go to http://www.
beckettcorp.com/protect/tech.asp. If furtherTechnical
assistance is required, call 800-645-2876, Monday thru
Friday, 8AM to 5PM EST.
