AudioCodes Mediant 1000 Installation Guide — Page 8

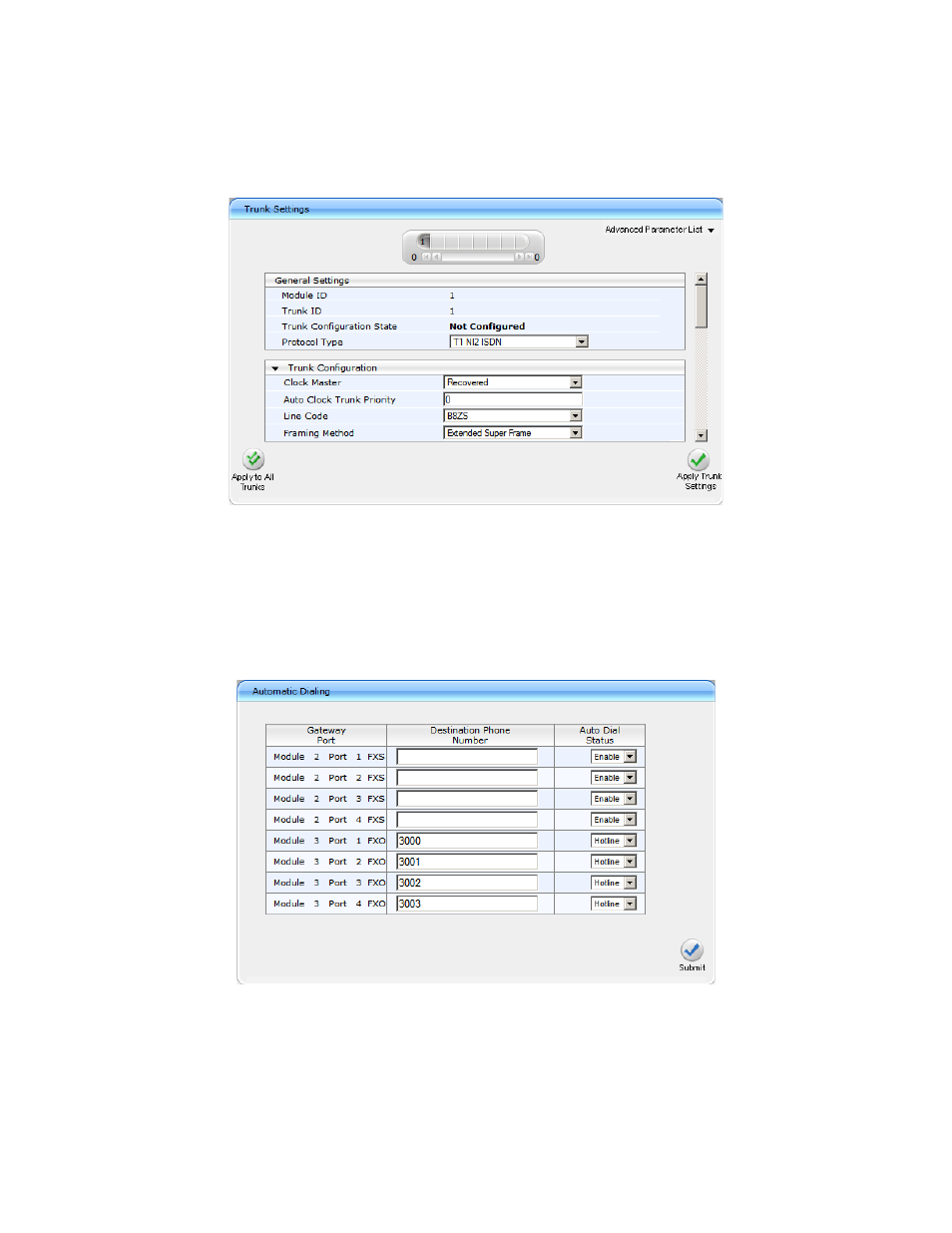

PRI or T1 Configuration
Configuration > PSTN Settings > Trunk Settings
Configure each trunk to match the PRI configuration specified by your service provider.
Click “Submit” when you are done. Click “Burn” at the top of the page.
FXO Configuration
Configuration > Protocol Configuration > Endpoint Settings > Automatic Dialing
NOTE: Do not configure automatic dialing for FXS ports; this will prevent you from faxing to any number but the
“Destination Phone Number.”
If you are receiving DTMF tones from a PBX on the FXO lines, it is not strictly necessary to configure automatic dialing. It is
recommended to configure automatic dialing so that the call is not lost if the PBX fails to send DTMF tones. For each FXO port,
enter the port’s corresponding phone number in the “Destination Phone Number” field. Set “Auto Dial Status” to “Hotline.”
If you are not receiving DTMF tones, you will need to configure a fixed phone number for each FXO port. Enter the port’s
corresponding phone number in the “Destination Phone Number” field. Set “Auto Dial Status” to “Enable.”
Click “Submit” when you are done. Click “Burn” at the top of the page.
