AudioCodes Mediant 1000 Installation Guide — Page 6

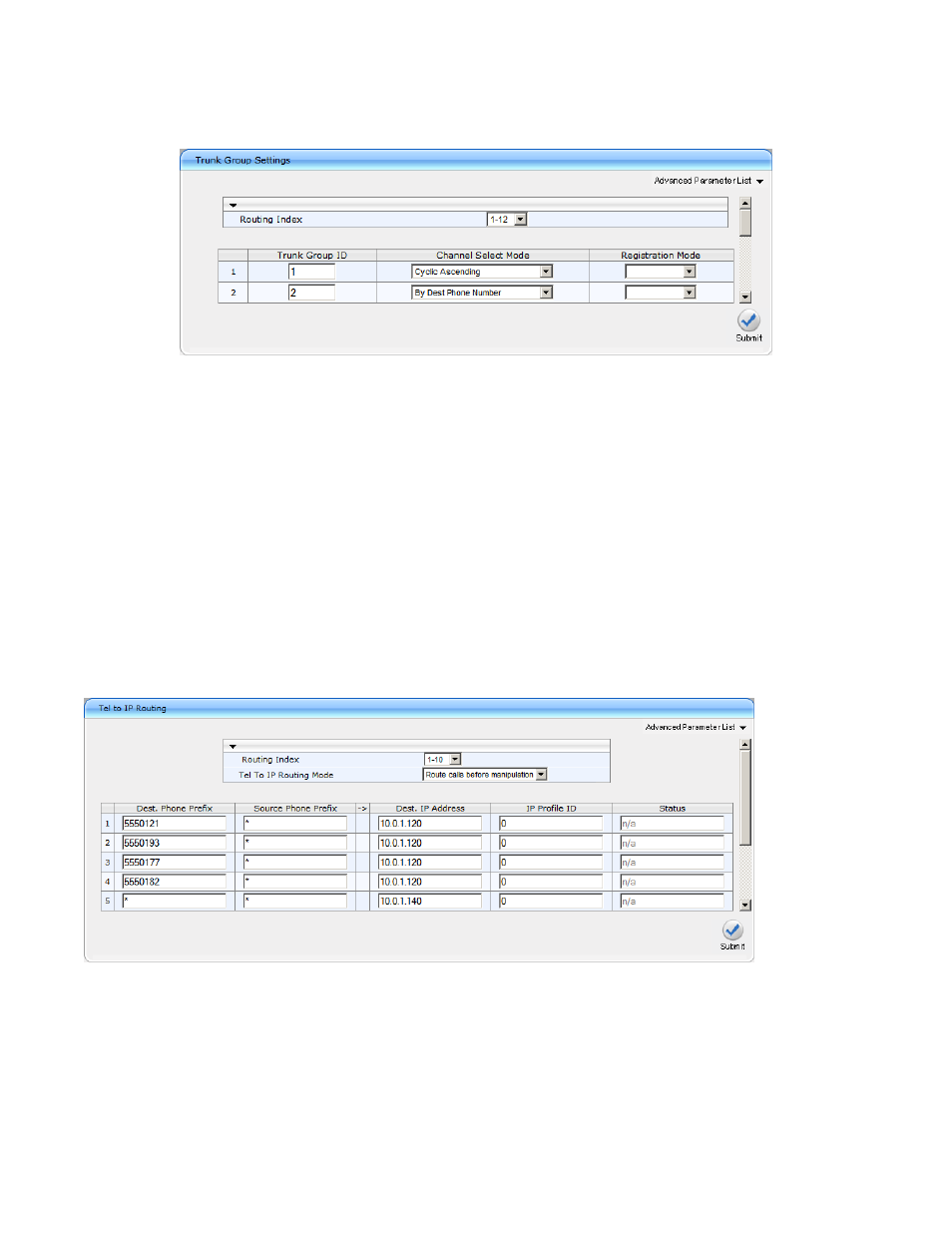

Configuration > Protocol Configuration > Trunk/IP Group > Trunk Group Settings
Create two trunk groups:
Trunk Group ID 1
Channel Select Mode Cyclic Ascending
Registration Mode (blank)
Trunk Group ID 2
Channel Select Mode By Dest Phone Number
Registration Mode (blank)
Click “Submit” when you are done. Click “Burn” at the top of the page.
Routing Table – Tel to IP
Configuration > Protocol Configuration > Routing Tables > Tel to IP Routing
This page allows you to route calls from the telephony interfaces to the IP address of the fax server. The following screen shot is
an example only, your hardware will need a different configuration. Read below for details. See also “Media Gateway Configuration
Examples” for sample configurations.
