Cs-34aparts – Belt Drives CS-34A User Manual
Page 4

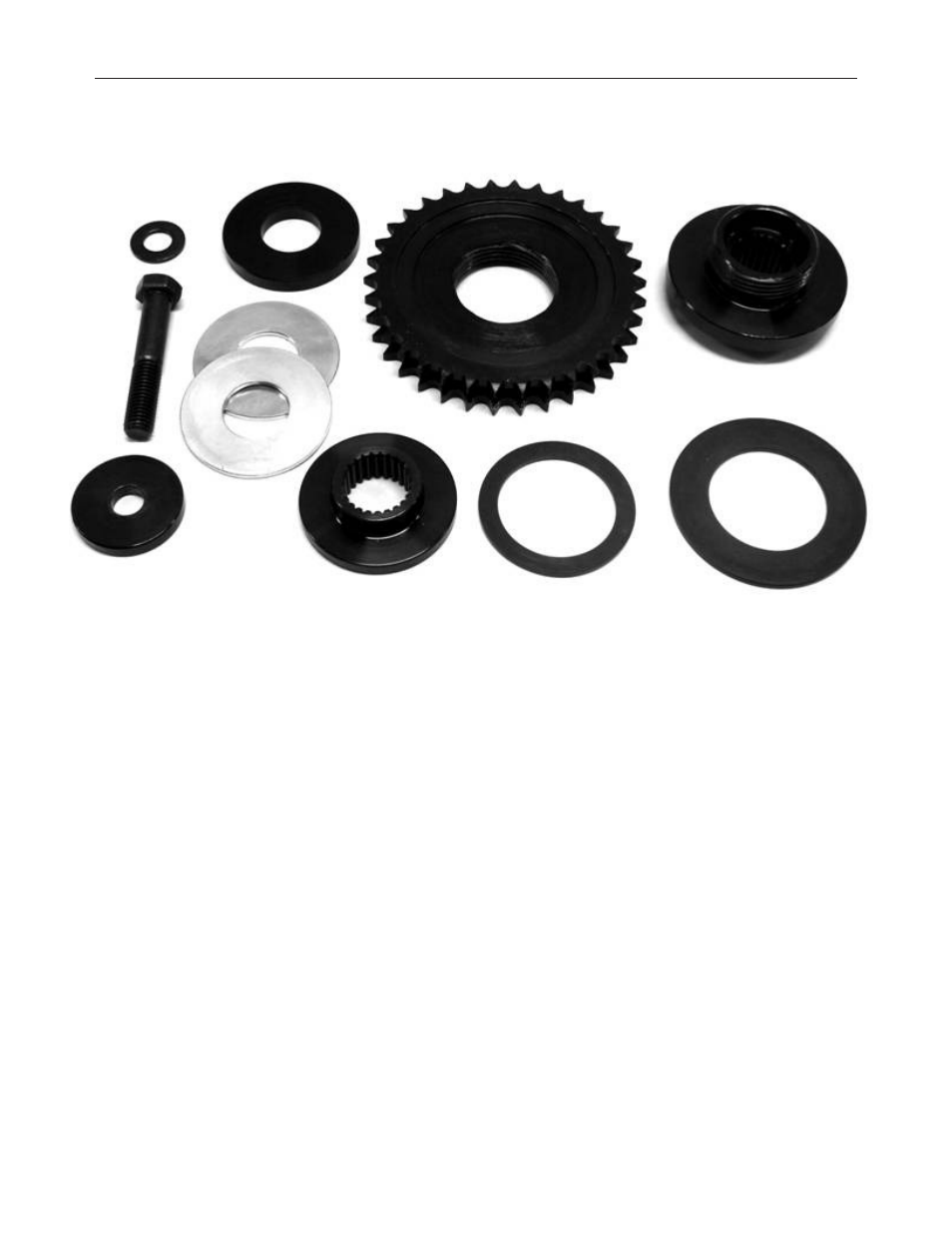

CS-34A Compensator Sprocket Complete Parts List Breakdown
CS-34A-TW-1 Thick Washer, 1ea.
CS-34A-TW-2 Thin Washers, 2ea.
CS-34A-SP, Sprocket
CS-34A-SC-1 Sprocket
Carrier Body
NW-200, Large
Nylatron Washer
NW-100, Small
Nylatron Washer
CS-34A, OF-1,
Outer Flange
SSBW-1, Sprocket Shaft
Bolt Washer “Thin”
SSB-3250, Sprocket Shaft
Bolt, 9/16-12x3.250
SSBW-2, Sprocket Shaft
Bolt Washer “Thick”
