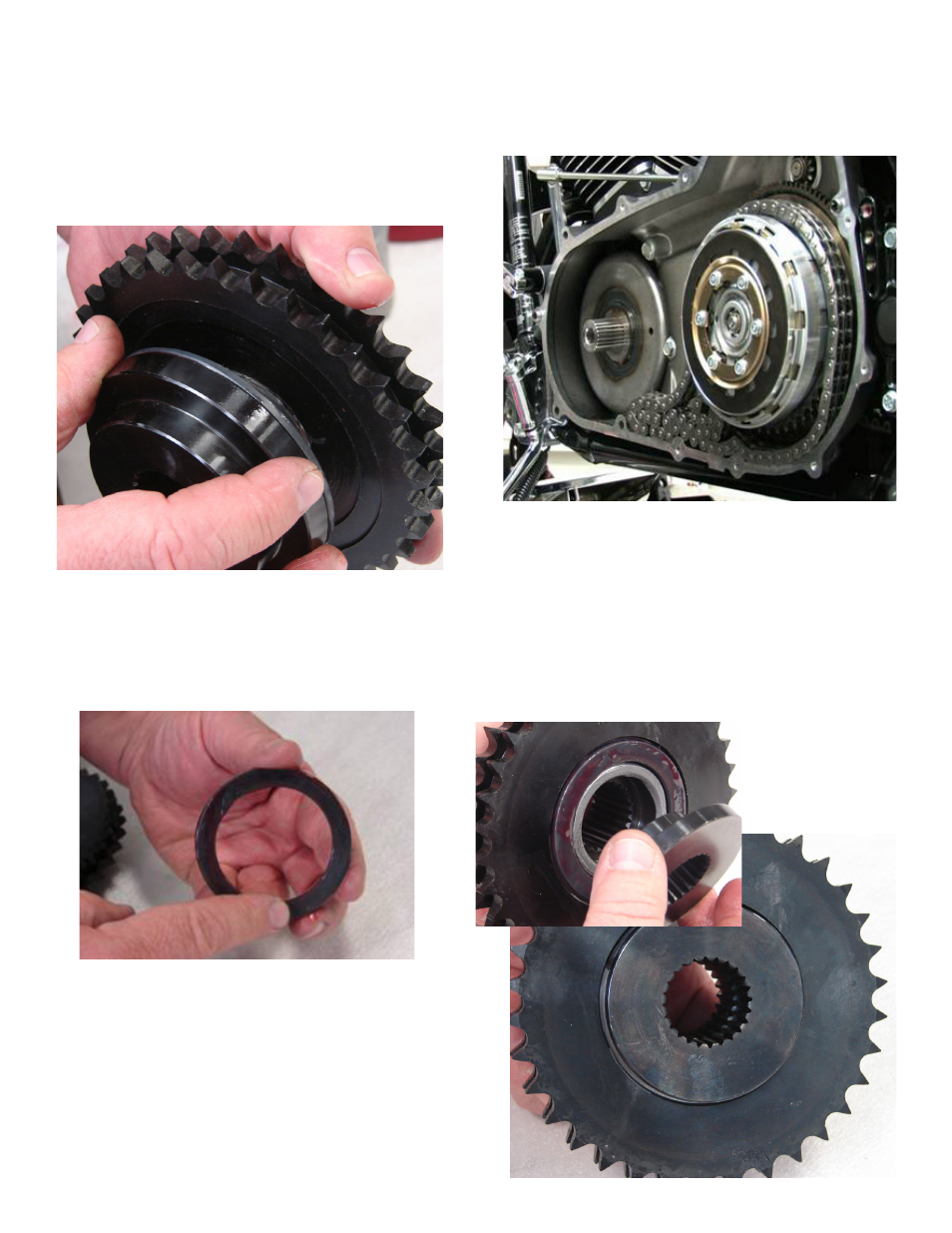

9. Install clutch basket and primary chain back onto

motorcycle.

10. Apply a thin coat of assembly lube to the smaller

Nylatron washer.

11. Fully seat smaller Nylatron washer into recess

on CS-34A sprocket, then install outer flange. Align

CS-34A assembly and outer flange with splines on

sprocket shaft and install.

8. Thread sprocket onto carrier body until

sprocket stops against the carrier body flange, fully

seating Nylatron washer into recess of sprocket. DO

NOT PINCH NYLATRON WASHER BETWEEN

FLANGE AND SPROCKET this can / will cause

compensator to operate incorrectly, and may cause

compensator failer.

Note: DO NOT PINCH EITHER OF THE

NYLATRON WASHERS BETWEEN SPROCKET,

CARRIER BODY, AND THE OUTER FLANGE.
