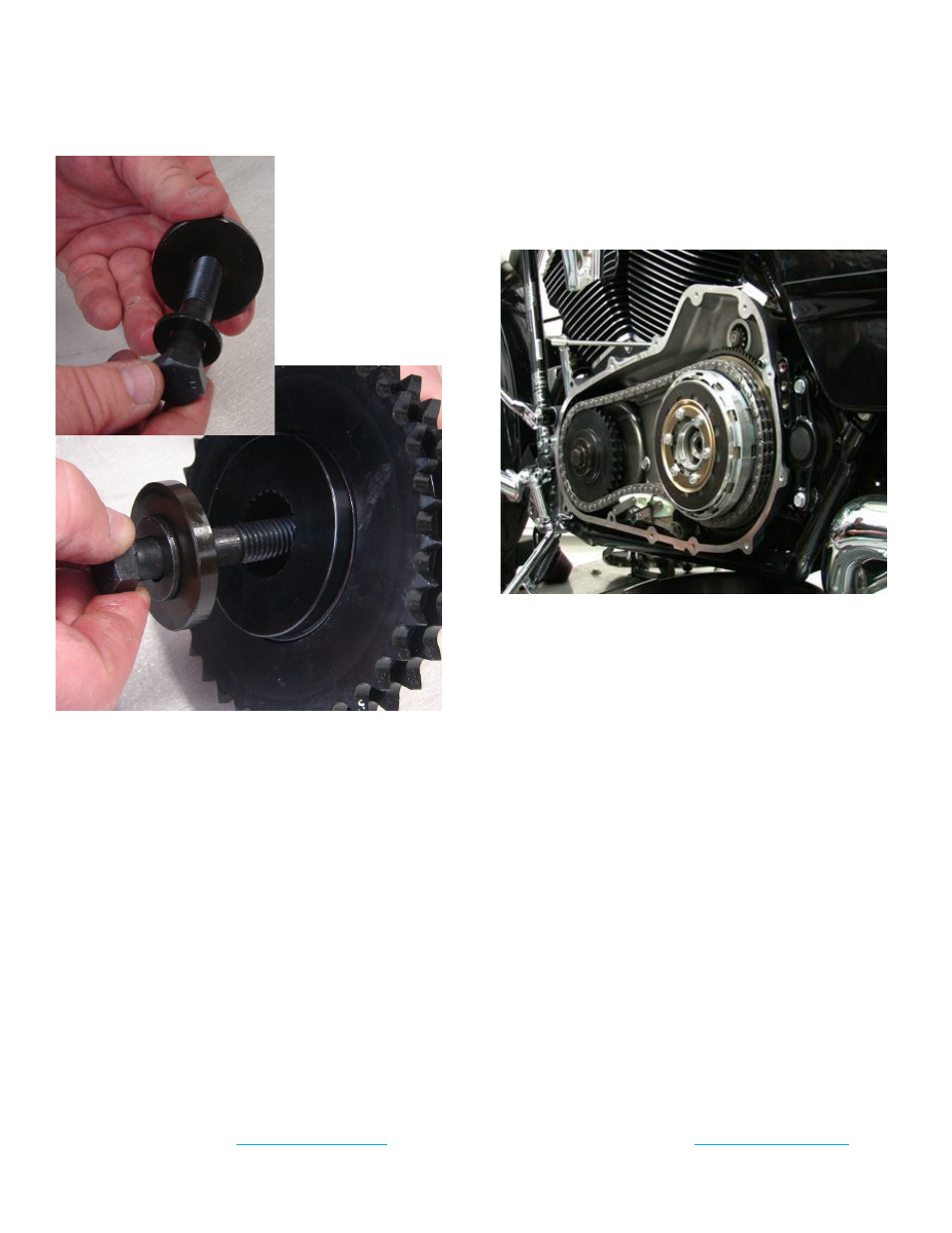

13. Install primary chain tensioner, clutch components,

adjust clutch, install new primary cover gasket, outer

cover, torque to H-D specifications, install drain plug

and fill with H-D approved primary fluid. Any

questions on reinstallation of H-D parts, refer to the

OEM service manual.

12. Install the “thin” then “thick” sprocket shaft bolt

washers onto bolt. Install bolt using OEM

recommended thread locker and torque to H-D

specifications.

Belt Drives Ltd. Patent # US 6,234,909

IMPORTANT NOTE FOR ALL 2007 - 2014 MODELS!!!

YOU MUST USE THE SUPPLIED STEEL SPACER / SPACERS AS NEEDED FOR

THE CORRECT PRIMARY CHAIN ALLIGNMENT, YOU ALSO MUST USE THE

SUPPLIED 9/16-12 X 3.250 LONG HEX HEAD BOLT.

THE STEEL SPACERS GO BETWEEN THE STATOR ROTOR AND

OUR CS-34A CARRIER BODY AND ASSEMBLY.

Belt Drives Ltd.

www.beltdrives.com

Technical Support

[email protected]
