English
2.

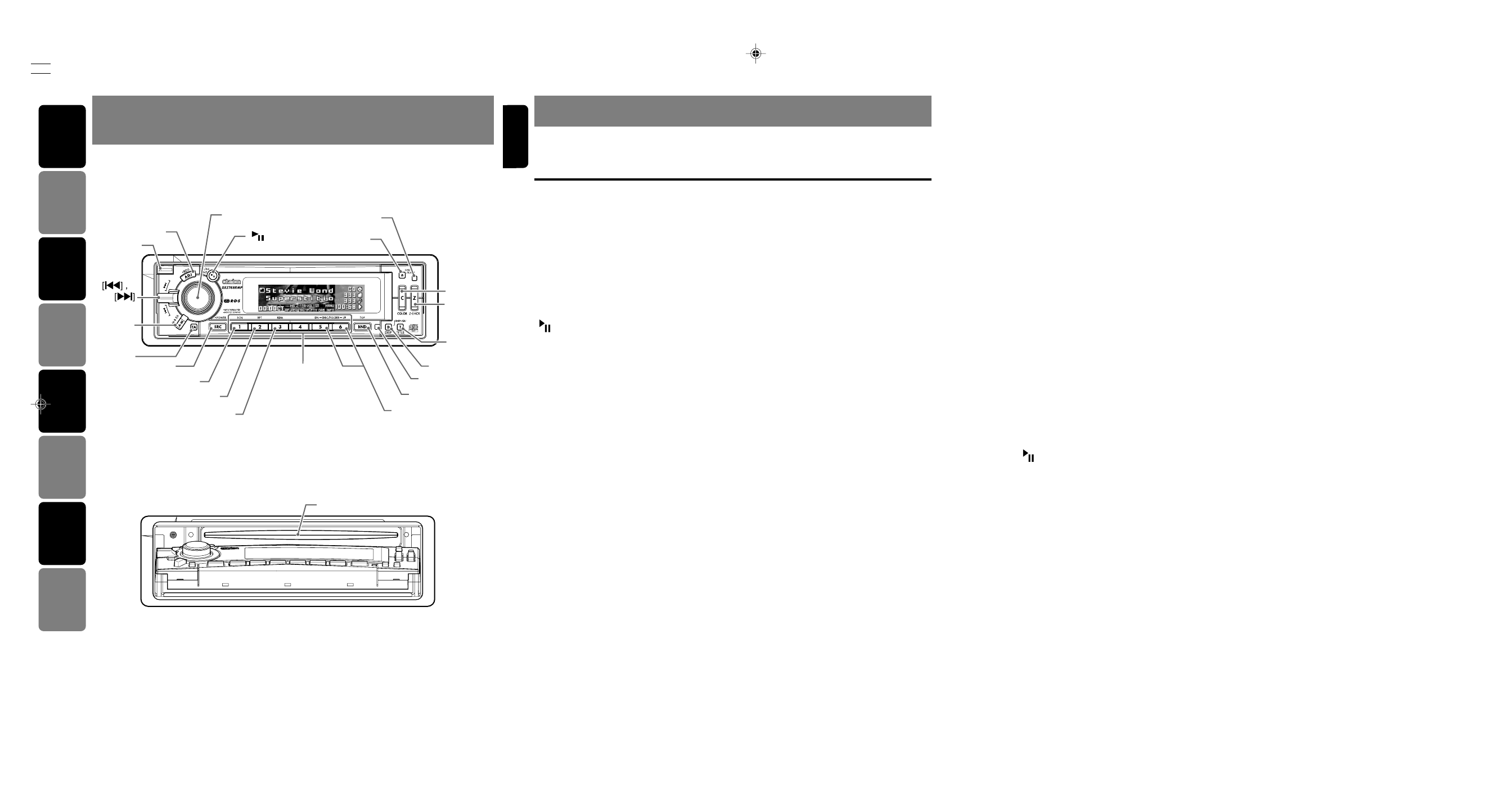

CONTROLS / LES COMMANDES / REGLER / CONTROLLI
REGELAARS / CONTROLES / KONTROLLER / CONTROLOS
Main unit / Appareil principal / Hauptgerät / Apparecchio principale
Hoofdtoestel / Unidad principal / Huvudenhet / Unidade principal
With the SLOPING CONSOLE opened / Ouvrez la CONSOLE RABATTABLE
ÖFFNUNG DER SCHRÄGKONSOLE / Apertura della CONSOLE INCLINATA
Met het KANTELEND BEDIENINGSPANEEL geopend / Apertura de la CONSOLA INCLINABLE
DEN LUTANDE KONSOLEN öppen / Com a CONSOLA INCLINÁVEL aberta
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez déplier cette page et vous référer aux schémas quand vous lisez chaque chapitre.
Hinweis: Bitte diese Seite ausfalten und beim Lesen der einzelnen Kapitel die Frontdiagramme beachten.
Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitolo.
Opmerking: Vouw deze pagina uit en zie tevens de afbeeldingen van het voorpaneel tijdens het doorlezen van de volgende hoofdstukken.
Nota: Cuando lea los capítulos, despliegue esta página y consulte los diagramas.
Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen.
Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo.
[ROTARY]
[ ]
[C]
[DIRECT]
[SCN]
[SRC]
[RPT]
[RDM]
[RELEASE]
[A-M]
[ADJ]
[TA]
[BND]
[DN], [UP]
[Z]
[T]
[D]
[CD SLOT]
[PHOTO SENSOR]
[IR RECEIVER]
[ Q ]
3. NOMENCLATURE
Note:
• Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold).
[RELEASE] button
• Deeply push in the button to unlock the DCP.
[ADJ] button
• Press the button to enter the adjust mode.
• Press and hold the button for 1 second or
longer to switch to the adjustment mode or
RDS adjustment mode (in Radio FM/DAB
mode).
[ROTARY] knob
• Turn to adjust the volume.
• Perform various settings.
[ ] button
• Perform preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
• Play or pause a CD while in the CD/MP3/
WMA mode.
• Confirms various settings.
[ Q ] button
• Press to open the SLOPING CONSOLE and
insert a CD into the CD SLOT.
• Press to eject a CD loaded in the unit.
[PHOTO SENSOR]
• This sensor detects the brightness inside your
car. When the auto-dimmer function is set to
“AUTO”, the brightness of the display is
dimmed according to the brightness detected
by this sensor.
[C] button
• Button’s color change to multicolor.
• Press and hold the button for 1 second or
longer to go into the user color adjustment.
[Z] button
• Use the button to select one of the 3 types of
sound characteristics already stored in
memory.
[T] button
• Use the button to input a title in the CD
mode.
• Use the button to switch the user titles or
track titles, while in the CD/MP3/WMA mode.
• Use the button to scroll the title during the
CD-text play, while in the CD/MP3/WMA
mode.
Names of the Buttons and their Functions
● When the CD/DVD changer /
iPod interface is connected
∗
For details, see the section “CD Changer
Operations”. For the DVD changer, refer
to the Owner’s Manual provided with the
DVD changer. For the iPod interface, refer
to the Owner’s Manual provided with the
iPod interface.
∗
Hereinafter, “iPod interface” is abbreviated
as iPod BB.
[
Connected to This Unit
[D] button
• Switch the display indication (Main display,
Title display)
• Press and hold the button for 1 second or
longer (do not over 4 seconds) to enter the
display adjust mode.
• Press and hold the button for 4 seconds or
longer to turn off the display while in the
usual play.
[IR RECEIVER]
• Receiver for remote control unit
(Operating range: 30° in all directions)
[BND] button
• Switch the band, or seek tuning or manual
tuning while in the radio mode.
• Play a first track while in the CD/MP3/WMA
mode.
• Press the button to change the character.
Press and hold the button for 1 second or
longer to delete the title.
• Press and hold for 1 second or longer to
switch the track type to play in the CD/MP3/
WMA mode.
[UP], [DN] buttons
• Select the folder while in the MP3/WMA mode.
[DIRECT] buttons
• Store a station into memory or recall it
directly while in the radio mode.
[RDM] button
• Perform random play while in the CD/MP3/
WMA mode.
• Press and hold the button for 1 second or
longer to perform folder random play while in
the MP3/WMA mode.
[RPT] button
• Perform repeat play while in the CD/MP3/
WMA mode.
• Press and hold the button for 1 second or
longer to perform folder repeat play while in
the MP3/WMA mode.
[SCN] button
• Perform scan play for 10 seconds of each
track while in the CD/MP3/WMA mode.
• Press and hold the button for 1 second or
longer to perform folder scan play while in the
MP3/WMA mode.
[BND] button
• Move the next disc in increasing order.
[UP], [DN] buttons
• Select the disc.
[RDM] button
• Perform random play. Also perform disc
random play when the button is pressed and
held.
[RPT] button
• Perform repeat play. When this button is
pressed and held, disc repeat play is
performed.
[SCN] button
• Perform scan play for 10 seconds of each
track. Disc scan play is performed when the
button is pressed and held.
[ å , ∂ ] lever
• Select a track when listening to a disc.
• Press the lever upward or downward and hold
in position for 1 second or longer to enter the
fast-forward or fast-backward mode.
