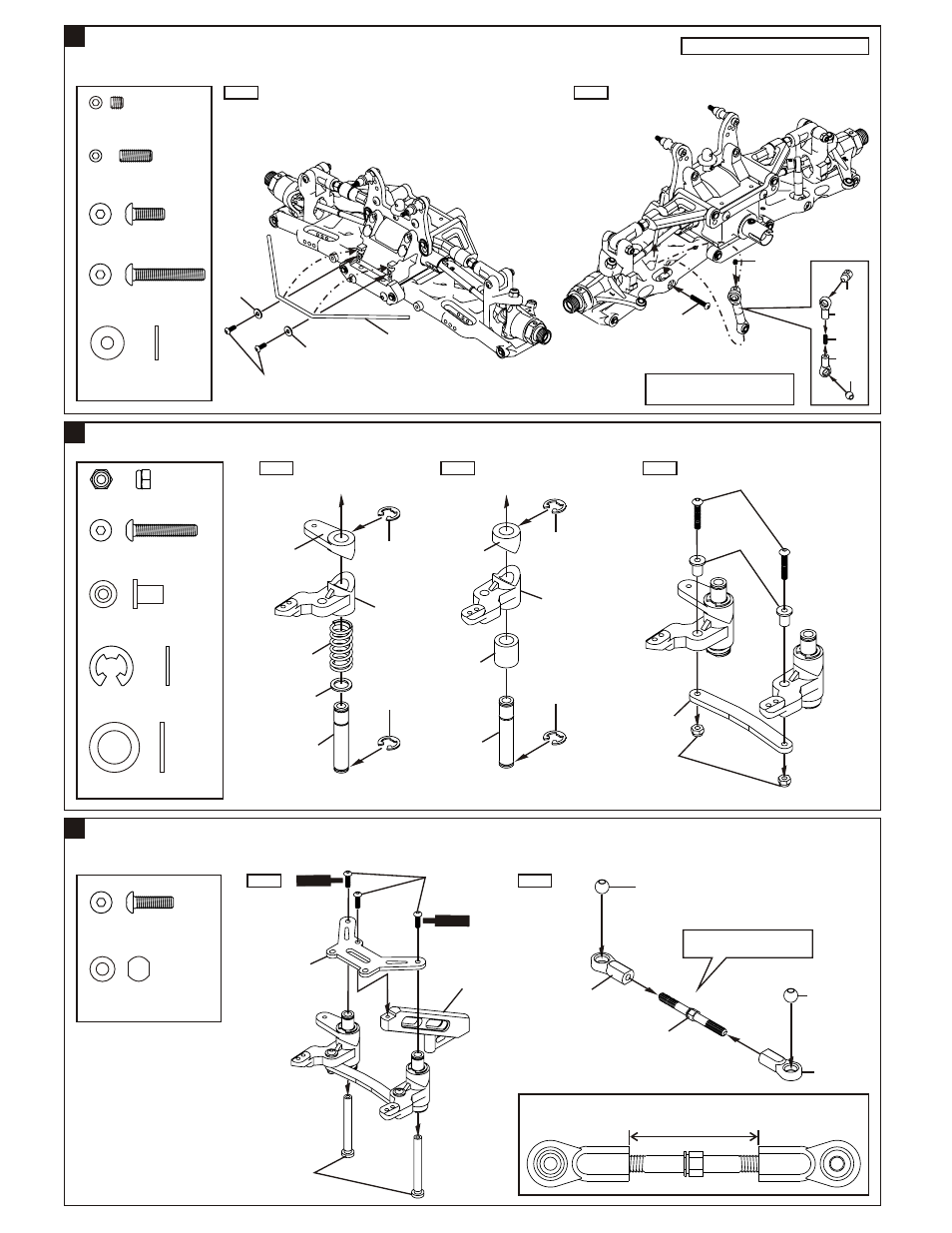

ASSEMBLY OF THE FRONT STABILIZER

Step 1

Step 2

3x8mm

3x8x0.8mm

34027

3x8x0.8mm

3x3mm

3x18mm

30341

30403

3x8mm

40199

94006
3x18mm
Hex Screw

.....x2

94002
3x8mm
Hex Screw

.....x2

94040
3x8x0.8mm
Washer

.....x2

94033
3x3mm
Set Screw

.....x2

94035
3x8mm
Set Screw

.....x2

*Makes two rods for left and right
hand-side

ASSEMBLY OF THE SERVO SAVER

Step 1

Step 2

Step 3

36743

36742

36743

30674

36743

30674

8x12x1mm

36741

3mm
Nylon Nut

30658

3x16mm

30361

30674

.....x2

94005
3x16mm
Hex Screw

94041
3mm Nylon Nut

.....x2

36742
Servo Saver Bushing

.....x4

36743
6mm E-Ring

8x12x1mm Washer

.....x1

ASSEMBLY OF THE SERVO SAVER AND STEERING TIE-ROD

Step 1

Step 2

¡G

*Approx. 31mm

*Made two steering rods
for left and right hand-side.

3x10mm

30659

34014

30380

40038

36700

Screw

m nt

Ce e

Scr w

Ce e

m nt

94003
3x10mm
Hex Screw

.....x3

40038
7mm Ball

.....x4

40038

36790

Assemble both right and left side.
