46 body install 17 – OFNA Racing Ultra LX 1e User Manual
Page 22
45

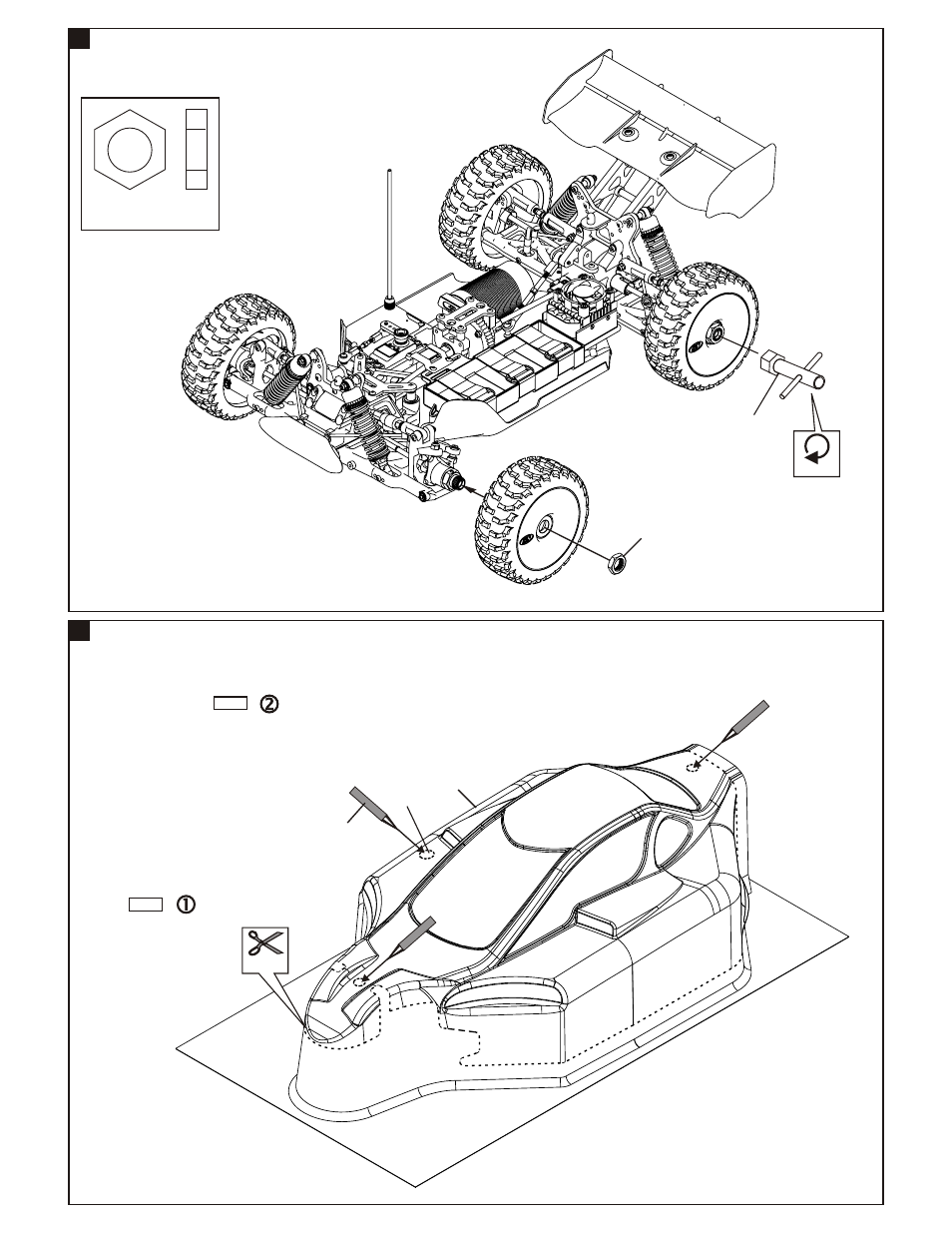

ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB
40550
Wheel Nut
.....x4
40550
46
BODY INSTALL
17
30677
Cut Out
Body Reamer
(Not included.)
Step 1
Step 2
Cut out the body as shown.
Before cutting and making holes in the body, put the unpainted body on the chassis to
confirm the mounting position for front and rear holes.
Use body reamer or drill to make two 8mm holes in the front and two 8mm holes in the rear.
Antenna
Hole
Wheel Nut
Wrench
Tighten
