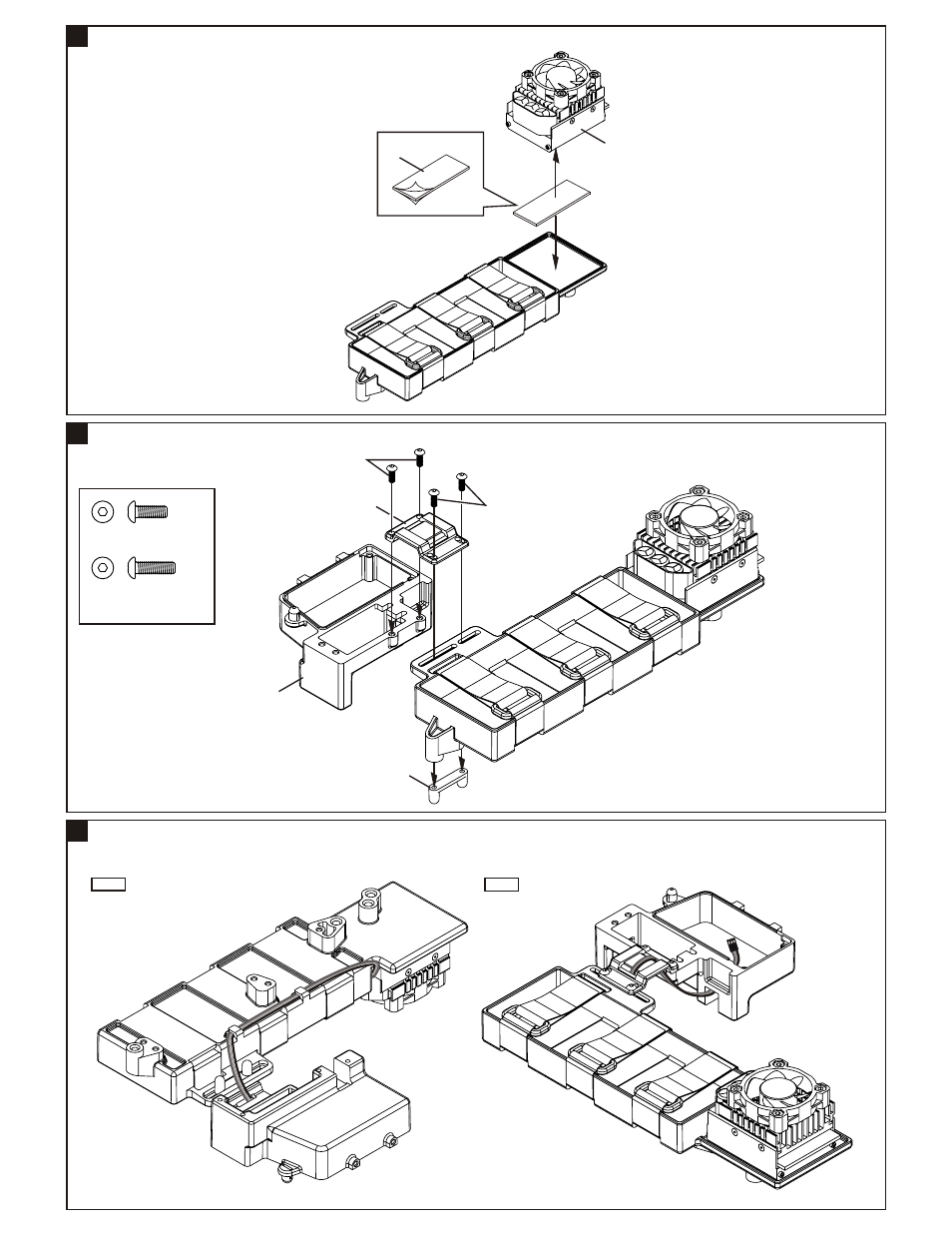

ASSEMBLY OF THE BATTERY TRAY BRIDGE ONTO BATTERY CASE

29

ASSEMBLY OF THE SPEED CONTROL RECEIVER WIRE INTO RADIO CASE

ASSEMBLY OF THE SPEED CONTRTOL RECEIVER ONTO BATTERY CASE

Step 1

Step 2

3x10mm

94002
3x8mm
Hex Screw

.....x2

11

Speed Contrtol Receiver(Option)

30662

30662

DOUBLE SIDED
TAPE

30662

3x8mm

94003
3x10mm
Hex Screw

.....x2
