Page 21

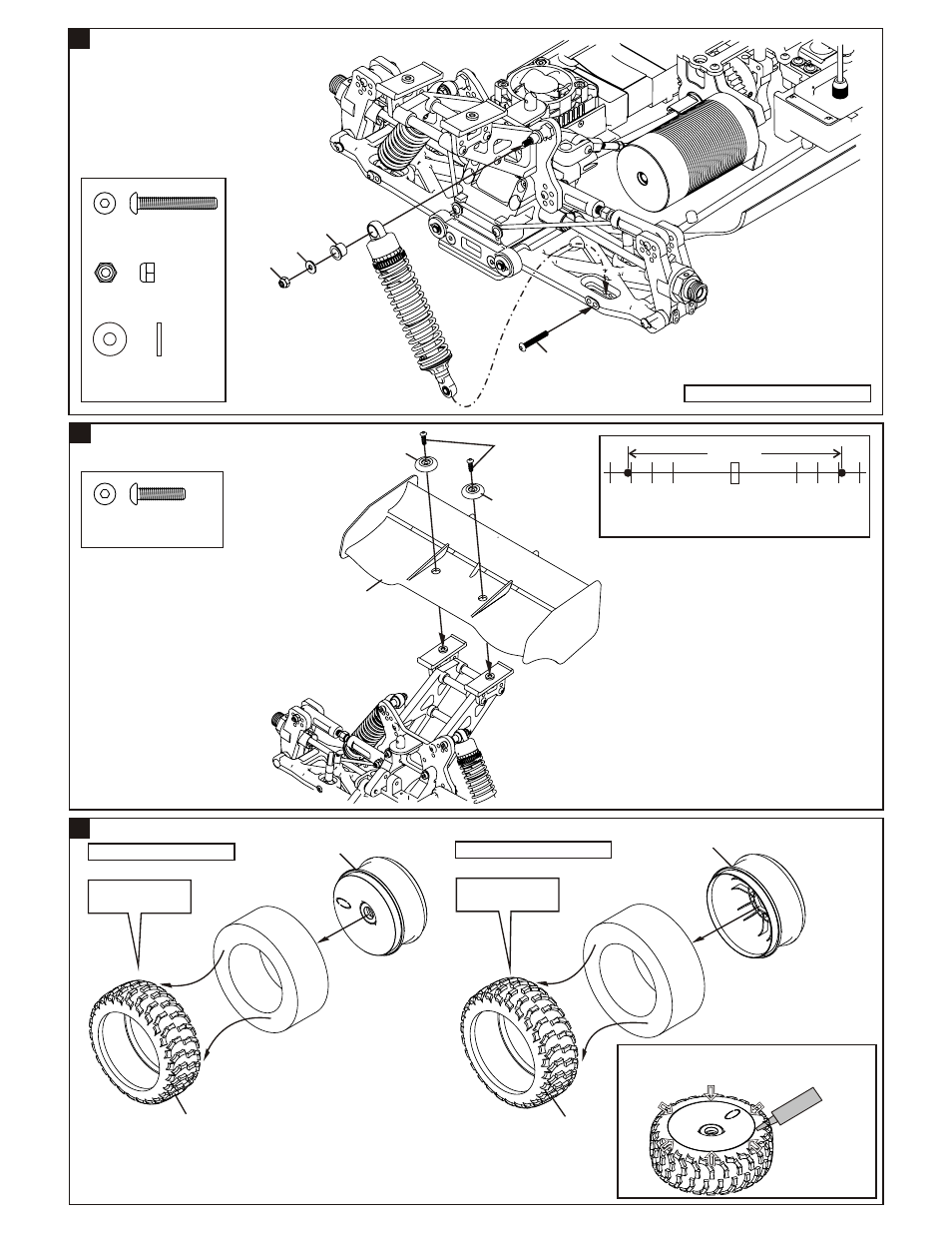

ASSEMBLY OF THE REAR SHOCK ABSORBER

Assemble both right and left sides.

94040
3x8x0.8mm
Washer

.....x2

94041
3mm Nylon Nut

.....x2

94007
3x20mm
Hex Screw

ASSEMBLY OF THE WING

94004
3x12mm
Hex Screw

.....x2

ASSEMBLY OF THE TIRES AND WHEELS

86082

86056

3x20mm

3mm

3x8x0.8mm

40643

3x12mm

30270

16016

*Check the hole spacing on the underside.

*Drill two 7mm holes for mounting.

51.5mm

*Make two left tires are the same.

*Make two right tires are the same.

* Notice the direction
of the tires.

*Apply instant glue
into the groove of
the wheel.

*Pull back the tire bead slightly and spot glue in four
spots as shown. When dry, glue the rest of the wheel
between the spots. Repeat the procedure on the other
side of the wheel until fully glued.
