33

34

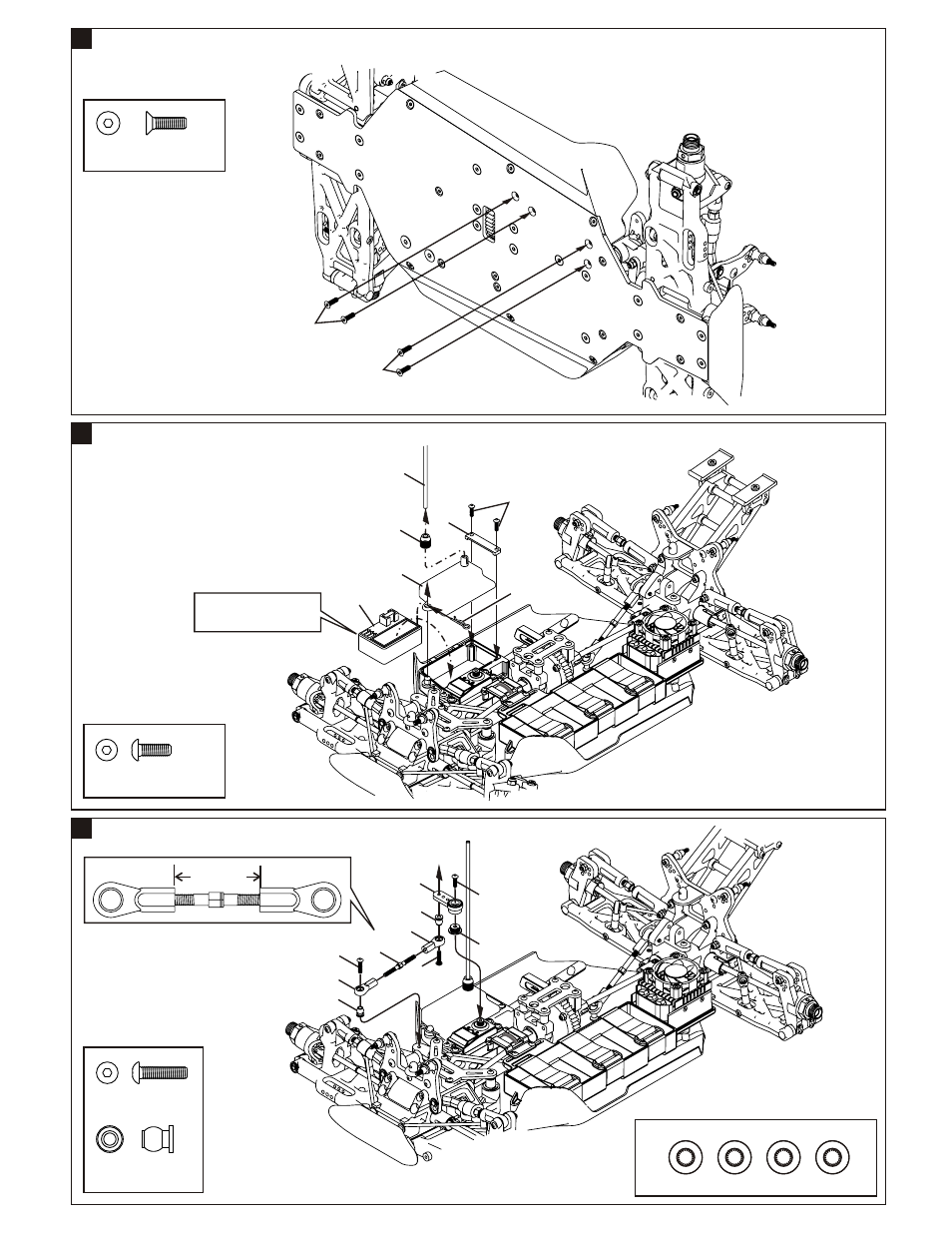

ASSEMBLY OF THE RECEIVER INTO RADIO CASE

35

ASSEMBLY OF THE STEERING ROD ONTO REDIO CASE

ASSEMBLY OF THE RADIO CASE ONTO CHASSIS

13

94019
3x10mm
Flat Head Hex Screw

.....x4

3x10mm

3x10mm

Receiver

*Plug in your Steering servo
to CH1 and speed control to
CH2.

94002
3x8mm
Hex Screw

.....x2

37410

40642

30560

* Choose the right servo horn adapter for your servo.

S

J

F

H

Sanwa/Airtronics JR

Futaba

HiTech

*Approx. 19mm

Use the screw
provided with
your servo.

30661

30401

30401

3x12mm

30661

38280
(3x36mm)

3x12mm

30411

30411

30662

94004
3x12mm
Hex Screw

.....x2

30411
6mm Ball Socket .....x2

3x8mm

30662
