Page 12

background image

18

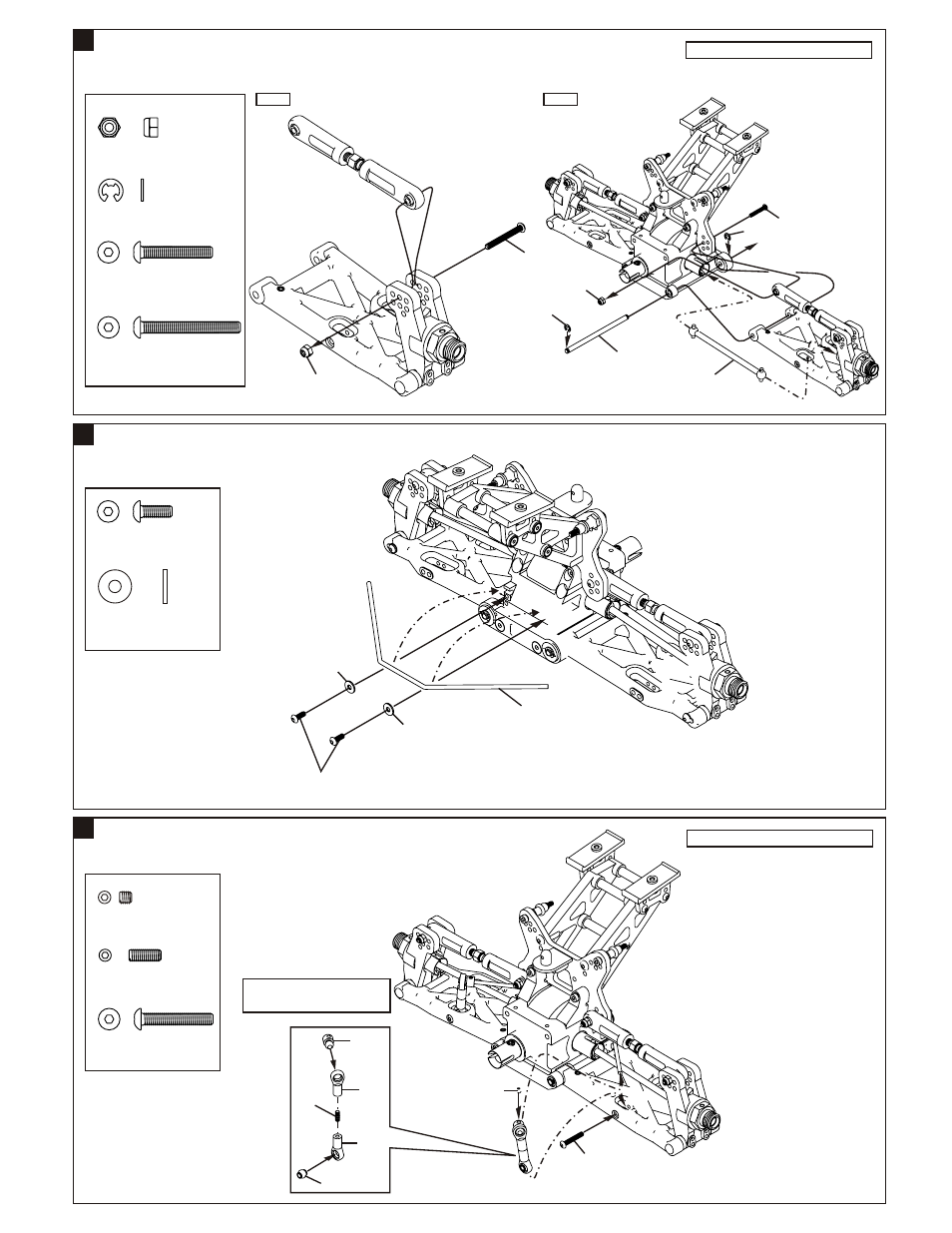

ASSEMBLY OF THE REAR LOW ARMS INTO GEAR BOX

Assemble both right and left side.

3mm

3x25mm

94008
3x25mm
Hex Screw

.....x2

94006
3x18mm
Hex Screw

.....x2

34054

36171

3mm

3mm

3x18mm

3mm

Step 2

Step 1

7

19

ASSEMBLY OF THE REAR STABILIZER

94040
3x8x0.8mm
Washer

.....x2

94002
3x8mm
Hex Screw

.....x2

3x8x0.8mm

3x8x0.8mm

34027

3x8mm

20

ASSEMBLY OF THE REAR STABILIZER RODS

30403

3x8mm

40199

30341

40199

3x3mm

3x18mm

94006
3x18mm
Hex Screw

.....x2

94033
3x3mm
Set Screw

.....x2

94035
3x8mm
Set Screw

.....x2

*Makes two rods for left and right
hand-side

Assemble both right and left side.

90021
3mm E-Ring

.....x4

94041
3mm Nylon Nut

.....x4
