Rane ECS RaneWare - Manual (Page 17)

RW Manual-17

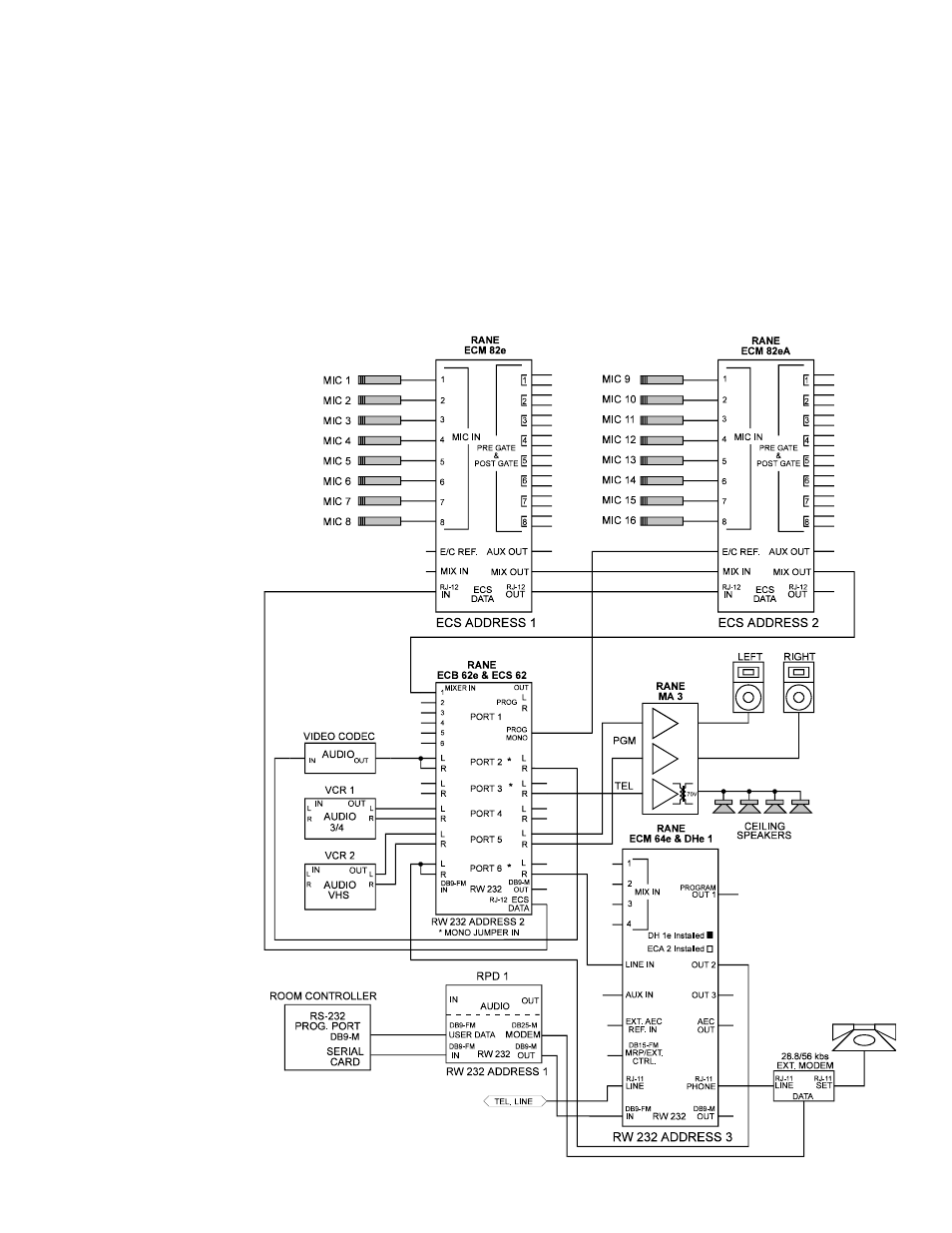

System 2: Boardroom with Program Stereo
The following illustrates an ECS with 16 mics, stereo program speakers, mono ceiling
speakers, a digital hybrid, a video codec, 2 VCRs, and a telephone connection.
Rane Equipment
1 ECB 62e Base with ECS 62 Stereo Module
1 ECM 82eA Mixer with Echo Canceller
1 ECM 82e Mixer
1 ECM 64e Conference System with DH 1e Digital Hybrid
1 RPD 1 Programmable Diagnostics Unit
1 MA 3 Multichannel Amplifier with TF 407 transoformers
RaneWare Setup
The file for this application is
called AP2V2.ECS, located on the
RaneWare disc. This file has six
preset operational Memories.
Memory 1 - Room Controller
operational mode. In this mode
all Port Outputs have their Input
select checkboxes cleared and
all Mic Inputs are
Active and
set to Automatic operation. This
is performed by selecting the
Port Memory settings from
Preset Memory 1 at
start-up, allowing the
Room Controller to
know the start-up
condition of ECS.
Memory 2 - Selecting this
Memory connects the
Conference Room (Port
1 In) to the ECM 64e
(Port 6 Out) and Port 6
In to Port 3 Out.
Memory 3 - Selecting this
Memory connects the
Conference Room (Port
1 In) to the Codec (Port
2 Out) and Port 2 In to
Port 3 Out.
Memory 4 - Selecting this
Memory allows the
VHS (Port 5 In) to be
heard at the Program
loudspeakers (Port 1
Out).
Memory 5 - Selecting this
Memory bridges the
Conference Room (Port
1), Codec (Port 2) and
ECM 64e (Port 6)
together.
Memory 16 - Precondi-
tions the Port Inputs
and the Mic Inputs for
alignment.
