Park Tool PCS-10 - Manual (Page 4)

Park Tool Co. 6 Long Lake Rd. St. Paul, MN 55115 (USA) www.parktool.com
PCS-10 Home
Mechanic Repair Stand
© 2012 Park Tool Co. / ® PARK TOOL and the color BLUE are registered trademarks of Park Tool Co.
Part No. Description Qty.
1451 leg clip 1
1456-10 extension collar assembly 1
1458-10 top tube assembly 1
1685 spring button 3
1780-2 leg cap 2
1781-2W leg 2
1782-2 leg bolt, nut and washer 2
1786 yoke QR assembly 1
1787 upright cap 1
1788 yoke sleeve 1
1792W extension tube 1
1793 swing handle 1
1795W complete clamp 1
1796 yoke 1
1797 upright tube 1

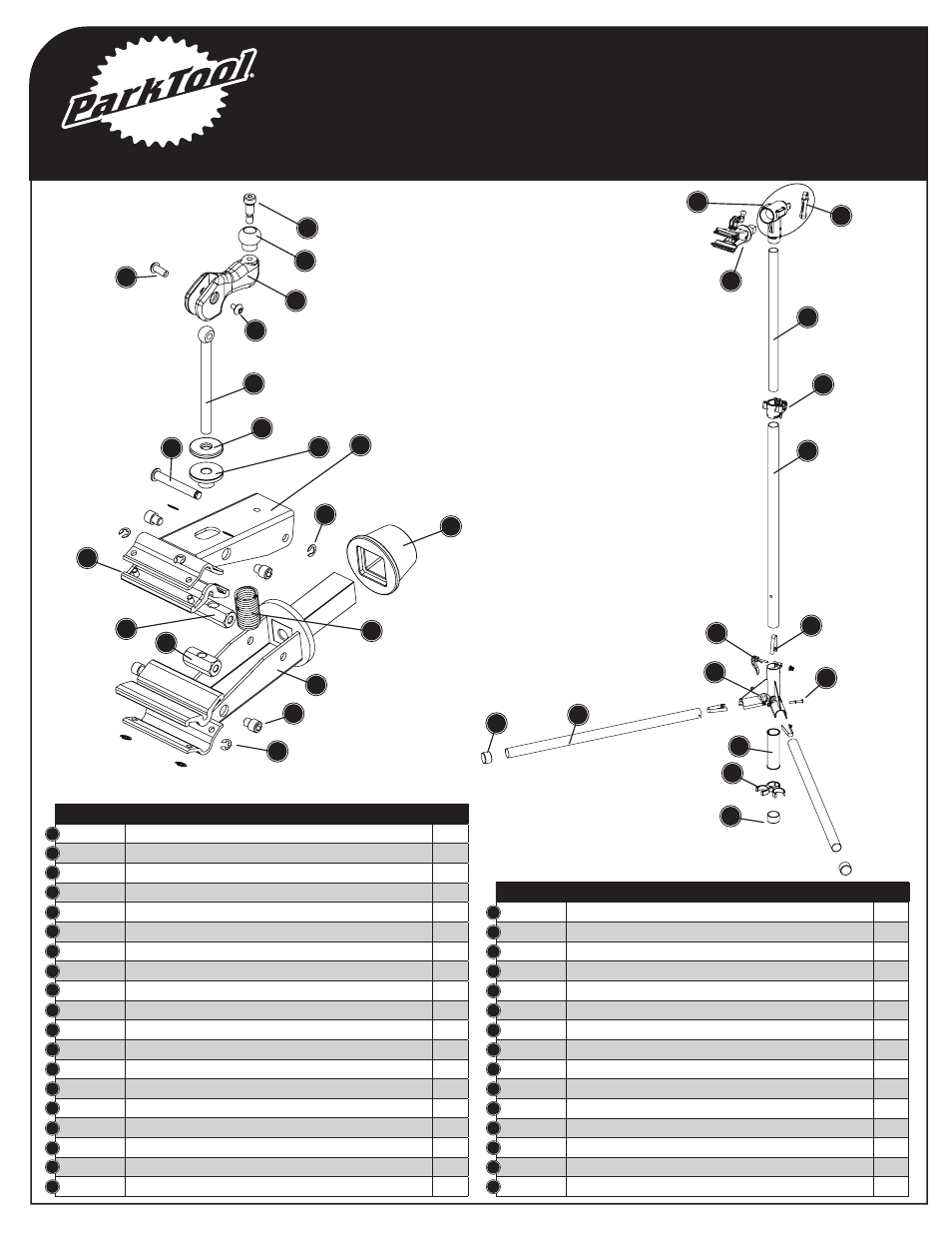

PCS-10 Stand
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Part No. Description Qty.
107-2 clevis pin c-clip 1
1184 jaw e-clip 4
1185K jaw cover set (includes e-clips) 1
1800 tapered compression cone 1
1801W rotating jaw 1
1802W moveable jaw 1
1803 hex barrel - rotating jaw (threaded center hole) 1
1804 hex barrel - moveable jaw (unthreaded center hole) 1
1805-4 cap screw 4
1806 spring 1
1807 clevis pin 1
1808 step bushing 1
1809 nylon washer 1
1810 clamp screw 1
1964 handle screw 1
1965 handle screw cap 1
1966 cam handle 1
1967 cam handle knob 1
1968 cam handle knob screw 1
PCS-10 Clamp
16
25
26
27
28
29
30
31
32
33
34
30
21 26
23
18
22
24
17
20
25
19
27
28
16
29
31
32
33
34
13
3
12
11
2
15
4
1
9
10
5
6
7
14
8
17
18
19
20
21
22
23
24
