HTR-1/HTR-1B Head Tube
Reaming & Facing Set
© 2014 Park Tool Co.
PARK TOOL® and the color BLUE are registered trademarks of Park Tool Co.
Part No. Description
Qty.
736
Handle Weldment
1
674
Spring Retainer
1
737
Retaining Nut
1
735
“E” Clip Retainer
1
743/743-1 Quick Release Set & socket head cap screw
1
745
Radial Centering Cone
1
741
Nylon Bearing
1
748
Thrust Bearing
1
749
Thrust Washer
2
742
Cassette Arbor
1
739
Acme Threaded Shaft
1
746
Tension Spring
1
747
Quick Release Spring
1
690
Facing Cutter
1
751.2
30.1mm Reamer (HTR-1 only)
1
762
29.8mm Pilot
1
763
30.0mm Pilot
1
765
33.8mm Pilot
1
766
36.8mm Pilot
1
754.2
33.9mm Reamer (HTR-1B only)
1

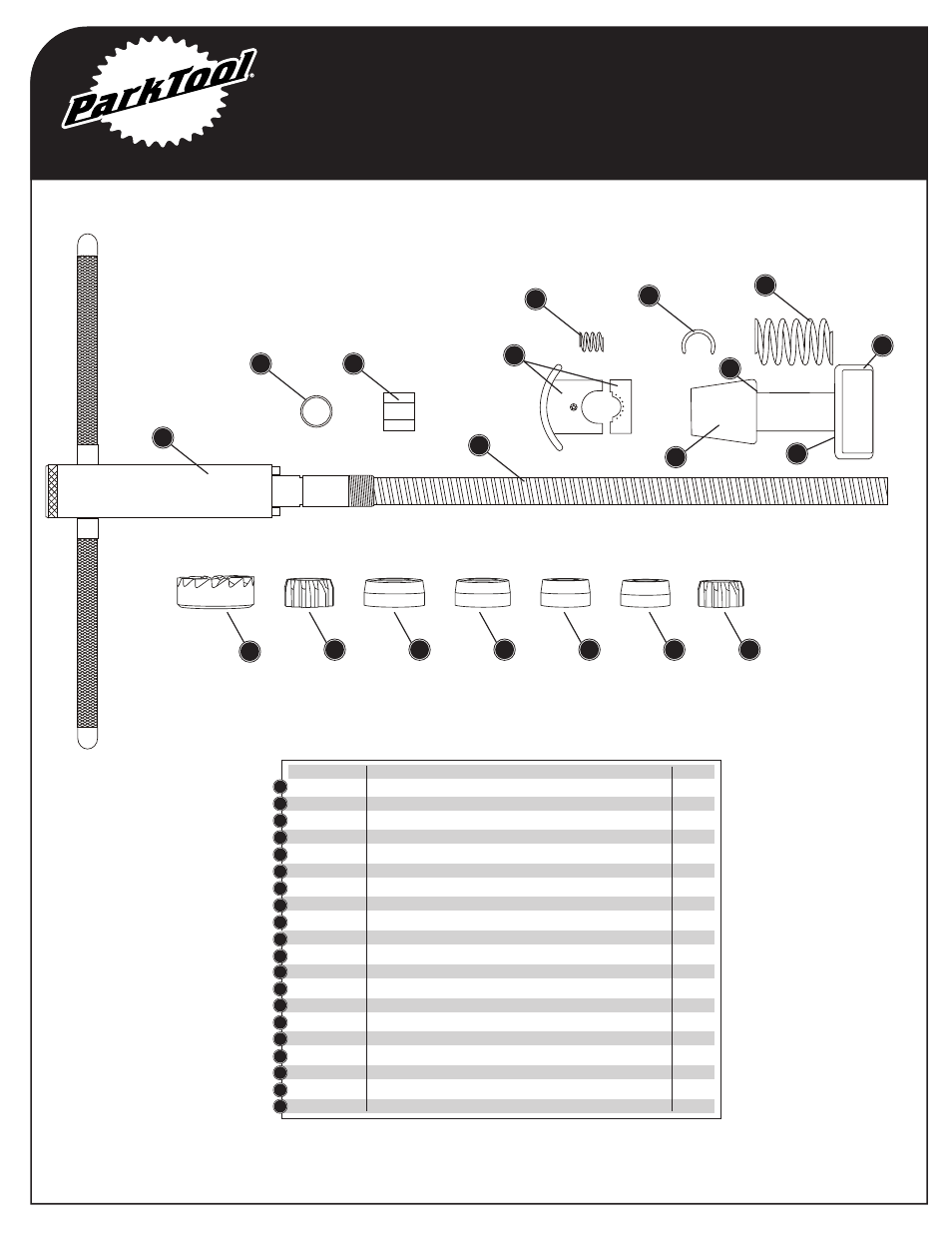

HTR-1 & HTR-1B part numbers
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
5
12
4
10
11
6
7
8
9
13
14
15
16
17
18
19
For information on additional reaming cutters, facing cutters, and pilots available
for use with the HTR-1 and HTR-1B visit www.parktool.com.
