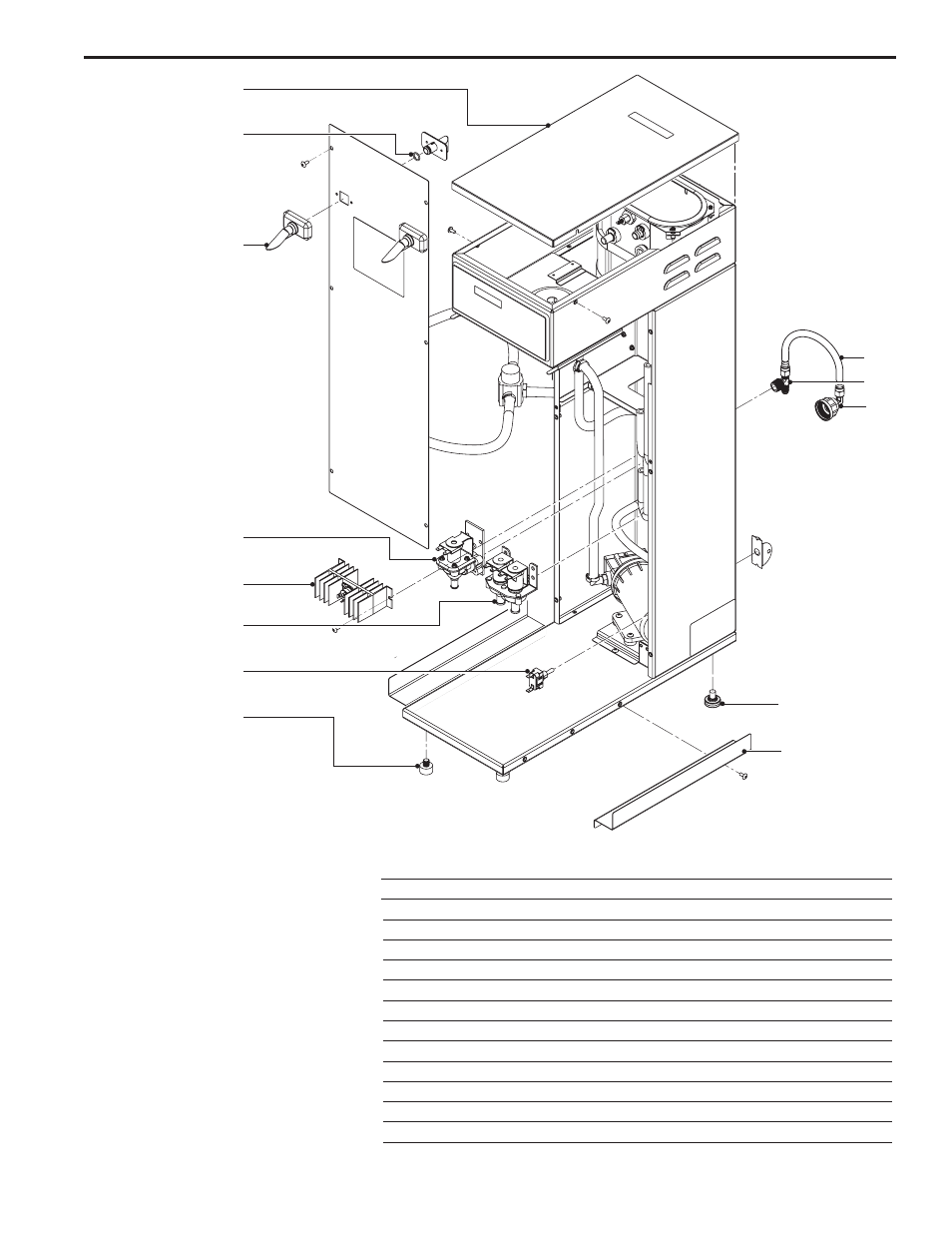

ILLUSTRATED
PARTS LIST
Main View
COVER, TOP BREWER
O’RING, .426 X 9/16 O.D X .070 WALL EDPM TCTS
SPOUT ASSY , DILUTION PLASTIC
VALVE, INLET 1 GPM 120V 10W (OLDER UNITS)
HEAT SINK ASSY DV
VALVE, DUAL DISPENSE 120V-10W .5GPM x .5GPM
SWITCH, TOGGLE SPST 25A 125/250VAC RESISTIVE
LEG, 8-32 STD SCREW BUMPER
TUBING, NYLON BRAID ¼” FLARE X 11 ⅛” LG FLEXIBLE
TEE, FLARE ¼ x ¼ x ⅜ BRASS
KIT, DUAL VALVE WATER INLET
LEG, GLIDE 3/8”-16 STUD SCREW
RAIL, BASE TCTD
DESCRIPTION PART № ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
WC-58117
WC-43134
WC-66079
WC- 826L*
WC-8556*
WC-895-104
WC- 102*
WC-3503
WC-53038
WC-2707
WC-37255
WC-3518
WC-8531-101
* RECOMMENDED PARTS TO STOCK
