Assembly Instructions 5/5

(Figure 1)

(Figure 2)

MAKE SURE ROLLER
IS ON THE BACK

Drawer

Part List

Q1.

Front Part
2 pcs.

Q5.

Base Part
2 pcs.

Q2.

Back Part
2 pcs.

Q3.

Side Part

2 pcs.

Q4.

Side Part

2 pcs.

* If you are missing any
of these parts, please
contact our DMI
Customer Service
Department at
1-877-831-0319 or fax
us at 1-800-755-2878.

(Figure 3)

(Figure 4)

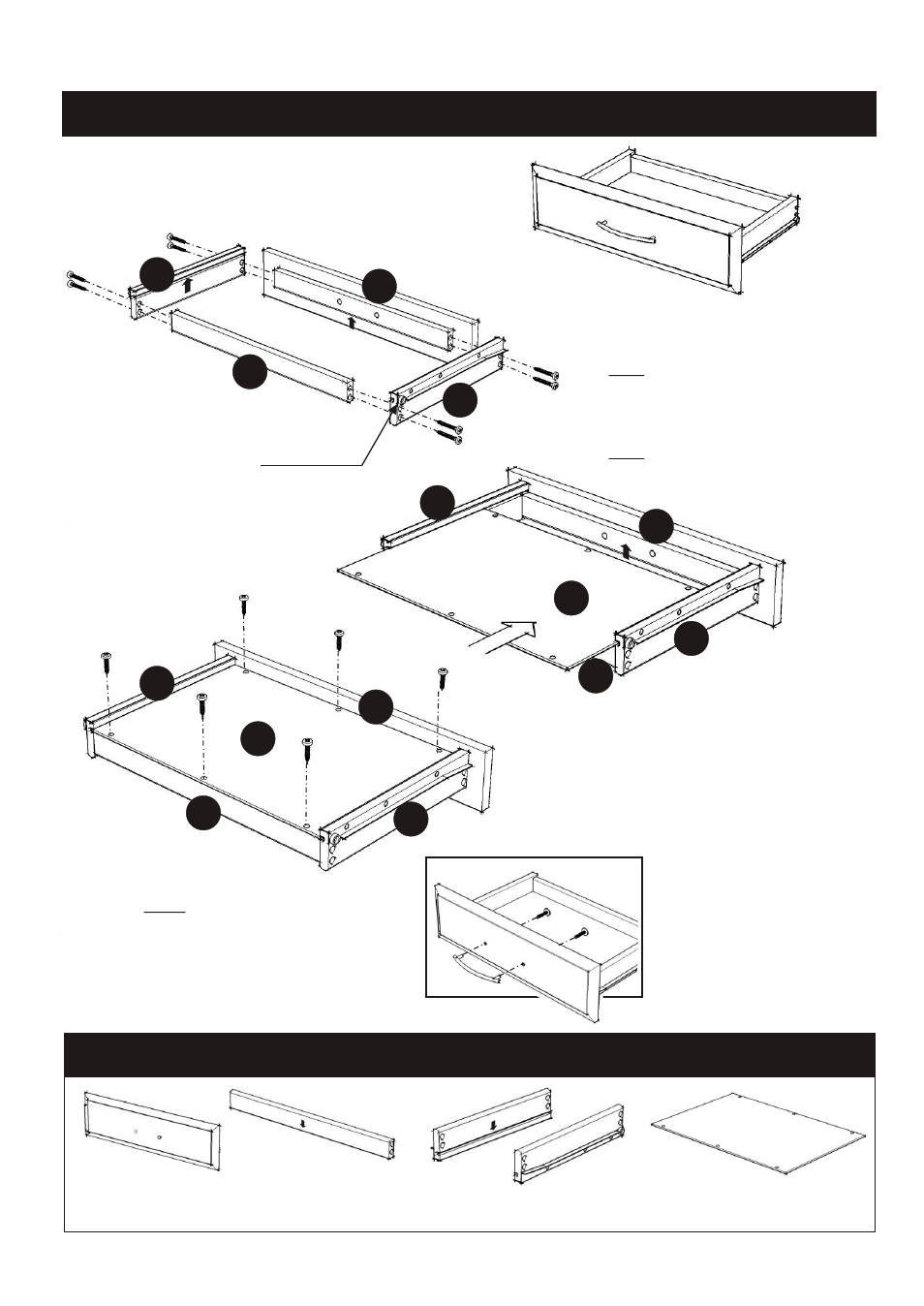

Attach Q1 to Q3 and Q4, using
a

Phillips screwdriver and

the long wood screws (4X),
tighten halfway.

Attach Q2 to Q3 and Q4 using
the long wood screws (4X),
tighten halfway. (See figure 1)

Insert the short wood screws (6X)
into the pre-drilled holes in Q5,
tighten screws. (See figure 3)

Tighten all screws used in
drawer assembly.

Attach hardware pulls with
machine screws.
(See figure 4)

Slide Q5 into the grooves in Q3
and Q4. Be sure to push the
Q5 all the way forward so
it meets the Q1. (See figure 2)

STEP 1

STEP 2

STEP 3

STEP 4
