B&C Technologies IP Series Commercial Ironer - Manual (Page 20)

STOP START
FAST
EMERGENCY STOP
SLOW
ADJUST SPEED
JOG REV.
OFF
TEMPERATURE CONTROL
HEATING
EMERGENCY STOP
ON
° C 1 3 0
set
on

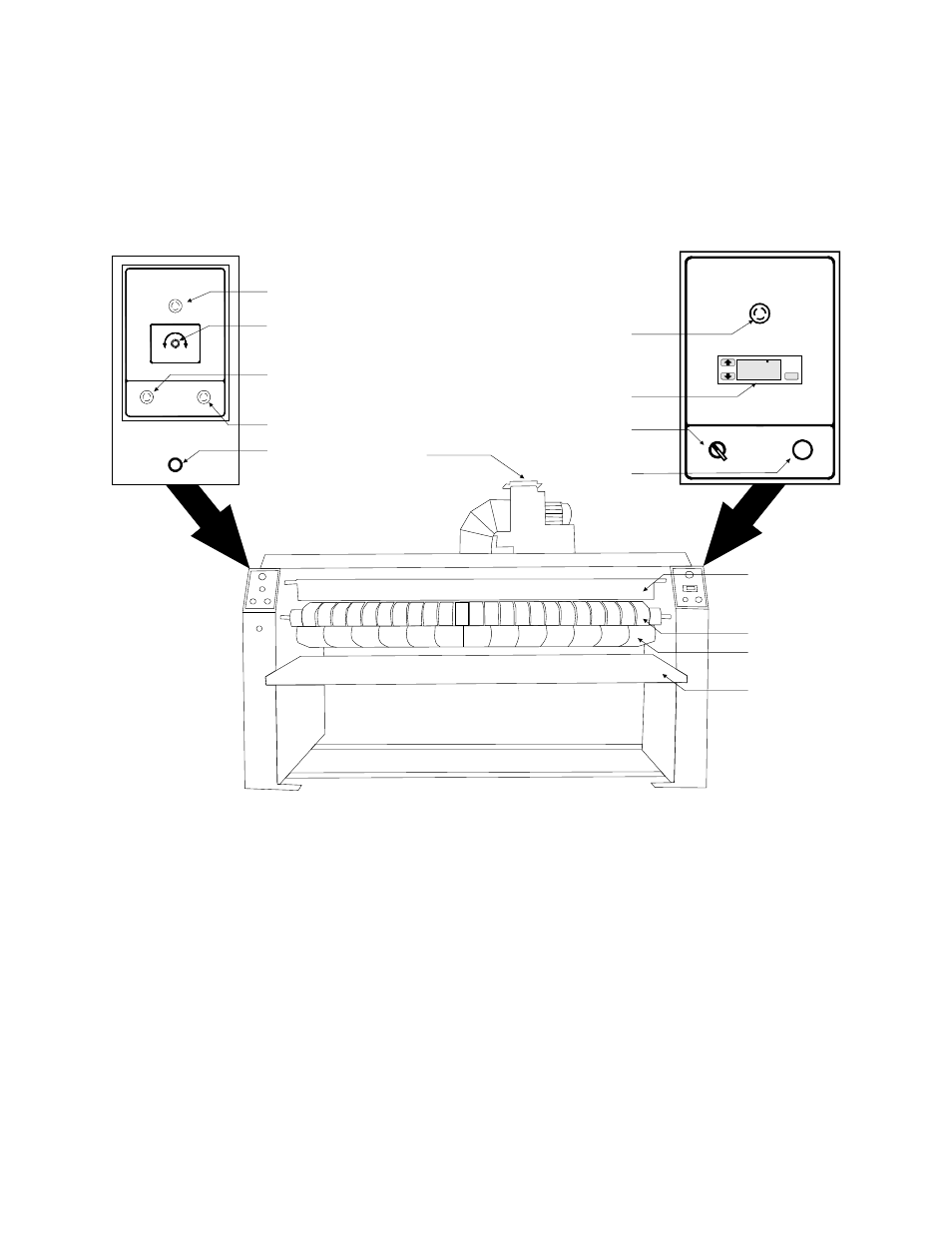

Operation
Controls
20
1
2
3
4
5
1
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
Emergency Stop Button
Speed Control
Stop Button
Start Button
Reverse Jog Button
Temperature Controller
Heat Control Switch
8
9
10
11
12
13
Heat Indicator Lamp
Exhaust Outlet
Finger/Hand Guard Safety Panel
Feed Belts
Return Belts
Output Table
