Installation
Exhaust Requirements
17
For best results, install the ironer near an
outside wall in order to keep the exhaust
duct length as short as possible, and to
provide a source of make-up air. Neither
the rear nor the sides of the ironer should
be blocked. Blocking the air inlets prevents
proper combustion, and will yield poor
results, and possibly harmful combustion
byproducts.

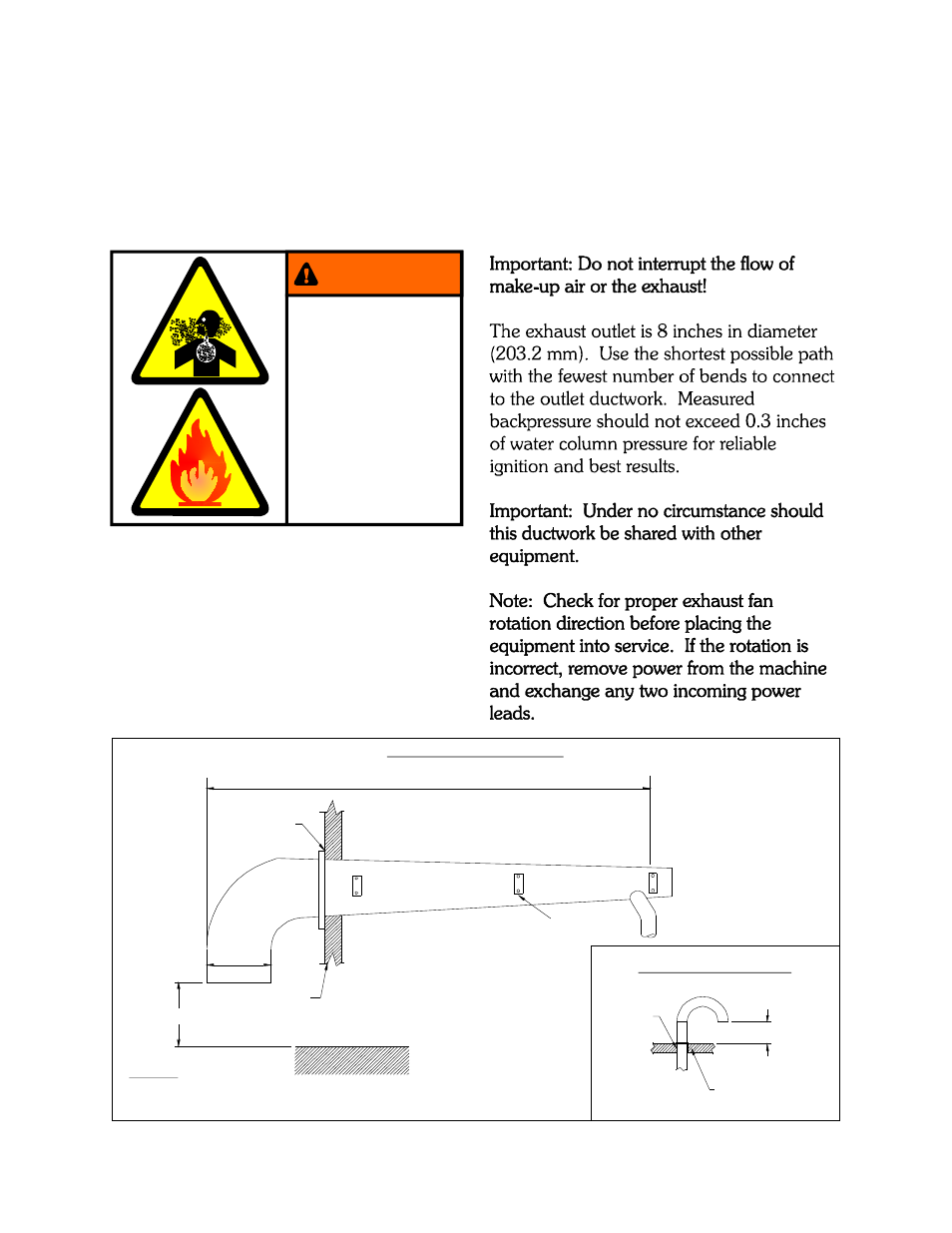

HORIZONTAL EXHAUST
SHOULD NOT EXCEED 20 FEET
NOTE A
INSPECTION
DOORS
2 X D CLEARANCE
D
WALL EXHAUST MUST ENTER MAIN
DUCT AT A 45° ANGLE
NOTE A:
THE DUCT MUST BE CENTERED WITHIN THIS OPENING
OPENING MUST BE 2 INCHES LARGER THAN DUCT ALL THE WAY AROUND
VERTICAL EXHAUST
NOTE A
ROOF
2 X D CLEARANCE
D
WARNING
Toxic and fire hazzards.
Machine produces gases,
fumes and lint which may
be toxic or catch fire and
could result in serious
injury or death.
Vent exhaust outdoors and
regularly clean lint away
from machine.
