The SmartSwitch 2000 Chassis View
2-68 Managing the Hub

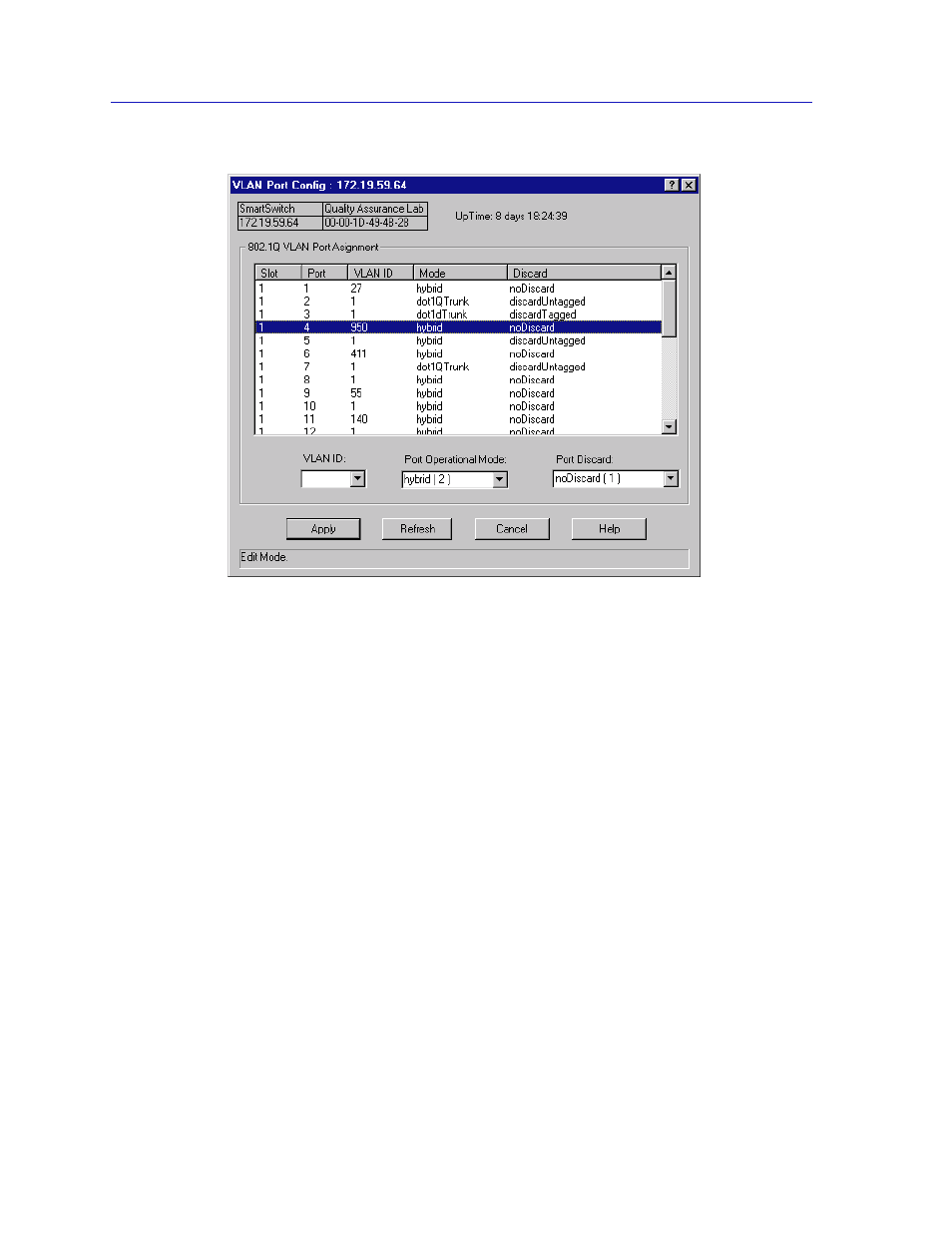

Figure 2-25. The VLAN Port ConÞg Window
The 802.1Q VLAN Port Assignment list box in this window displays the
following information about ports on your 802.1Q switch:
Slot/Port
These Þelds display the slot and port index for each port on your 802.1Q switch.
For the SmartSwitch 2000, the slot index will always be 1.
VLAN ID
This Þeld displays the VLAN ID of the VLAN to which the port is currently
assigned.
Mode
This Þeld displays the portÕs current mode of operation. Port operational modes
include:
¥ Dot1DTrunk mode, which is used for ports that are to connect to a traditional
(802.1d) switch fabric. These ports transmit only untagged frames. 1d Trunk
ports are conÞgured to be members of all VLANs.
¥ Dot1QTrunk mode, which is used for ports used to connect 802.1Q-aware
devices if VLAN membership is to apply to users across several switches.
These ports transmit only tagged frames. 1Q Trunk ports are conÞgured to be
members of all VLANs.
