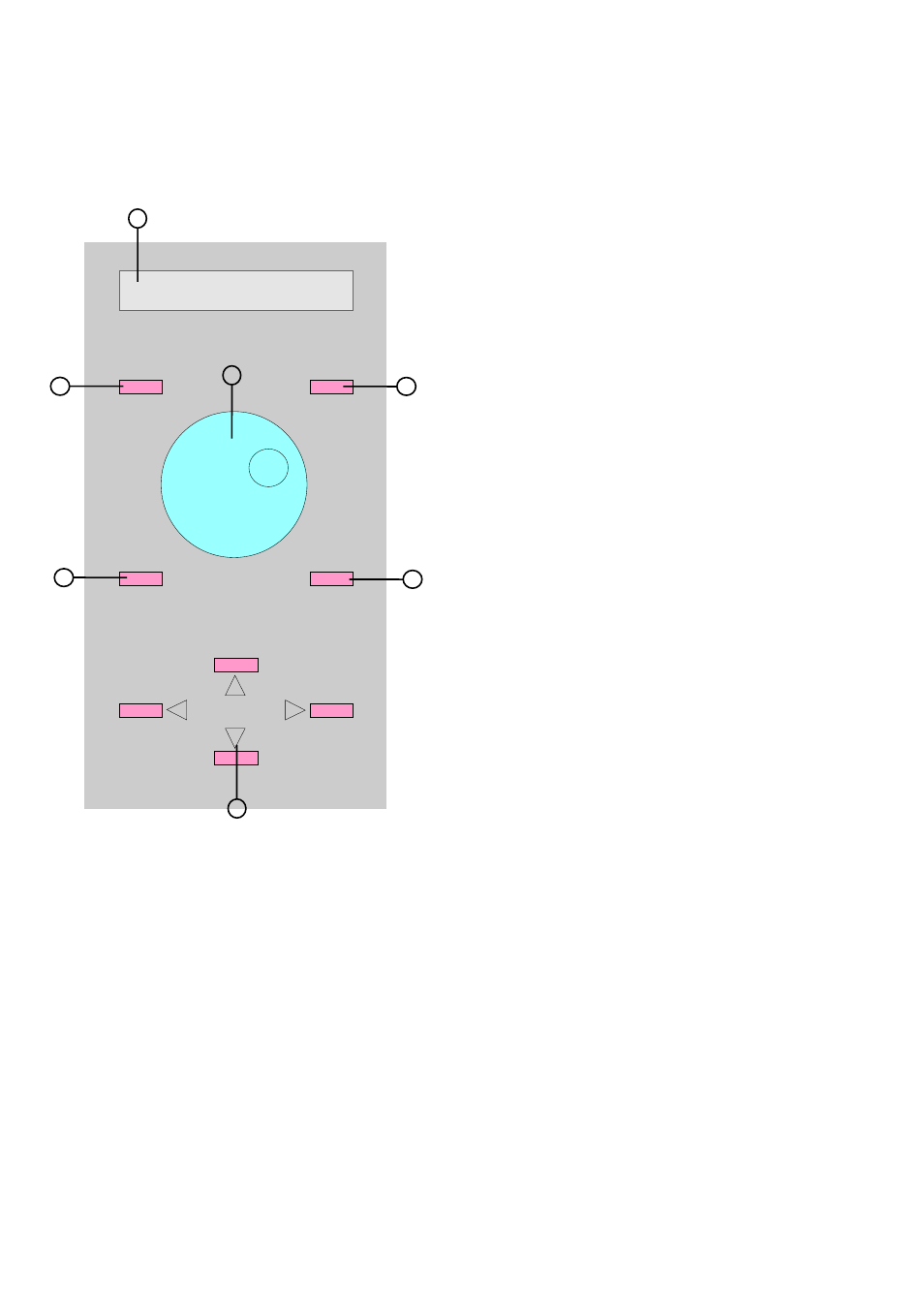

Roland CX-24 front panel
overview
1. Display Panel
The display panel indicates settings,
functions and error messages.
2. Jog Wheel
This wheel is used for adjusting any
settings and modes on the machine
in conjuction with the display panel.
3. Menu key
This key will allow you access to all
of the settings for the machine and to
adjust the settings within menus.
4. Enter Key
This key is used to confirm your
selections.
5. Test Key
This key will produce a test cut into your
material and let you check the cutting
pressure is high enough.
6. Origin Key
This key is used to set the start position of the blade when loading a new piece
of material into the cutter (textile vinyl only - not for Ultragraphics use).
7. Cursor Keys
These keys are used for moving both the material forward & backward in the
cutter and also to move the cutting head from side to side (textile vinyl only -
1
2
3
5
4
6
7
not for Ultragraphics use).
