8
You will need to use the templates that were provided during your installation or on your
installation CD, they should be saved to your PC in a folder called Ultragraphics or Xpres
on your desktop. To use the templates open CorelDRAW and click File | Open, and browse

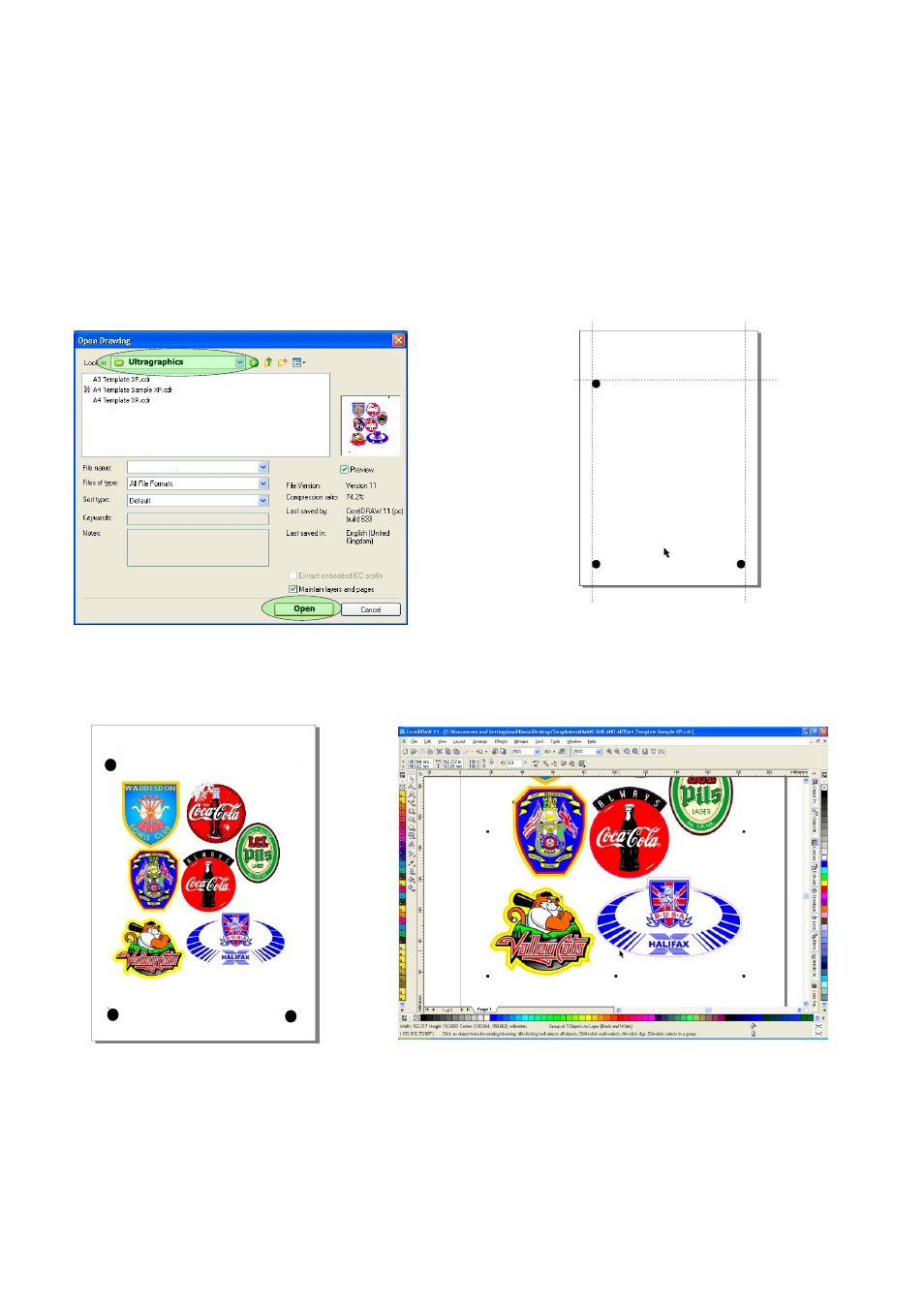

(Step 1)
Select either the A4 or A3 template depending
on the job that you are producing, then click open.
This is how the template will look once
it has opened. Import your design into the
template by clicking on File | Import. Select
Position your design then produce a
cut line. See page 12 & 13 for
instructions on how to do this.
Once you have produced your cut lines, you can either save
the image and use at a later time or continue. If you need to
produce more than one image, press Ctrl + D on the keyboard
to duplicate, then position on page.
(Step 2)
(Step 3) (Step 4)
Ultragraphics
Open
A4 Template final XP.cdr
Ultragraphics
Over the next few pages you will learn how to place your images into CorelDRAW, print
them, then cut them out on the Roland CX-24 cutter.
to the above location to open the template.
your design and import this into the template.
