Workrite Sierra HXL™ 3-Leg Crank Workcenters - Assembly Instructions

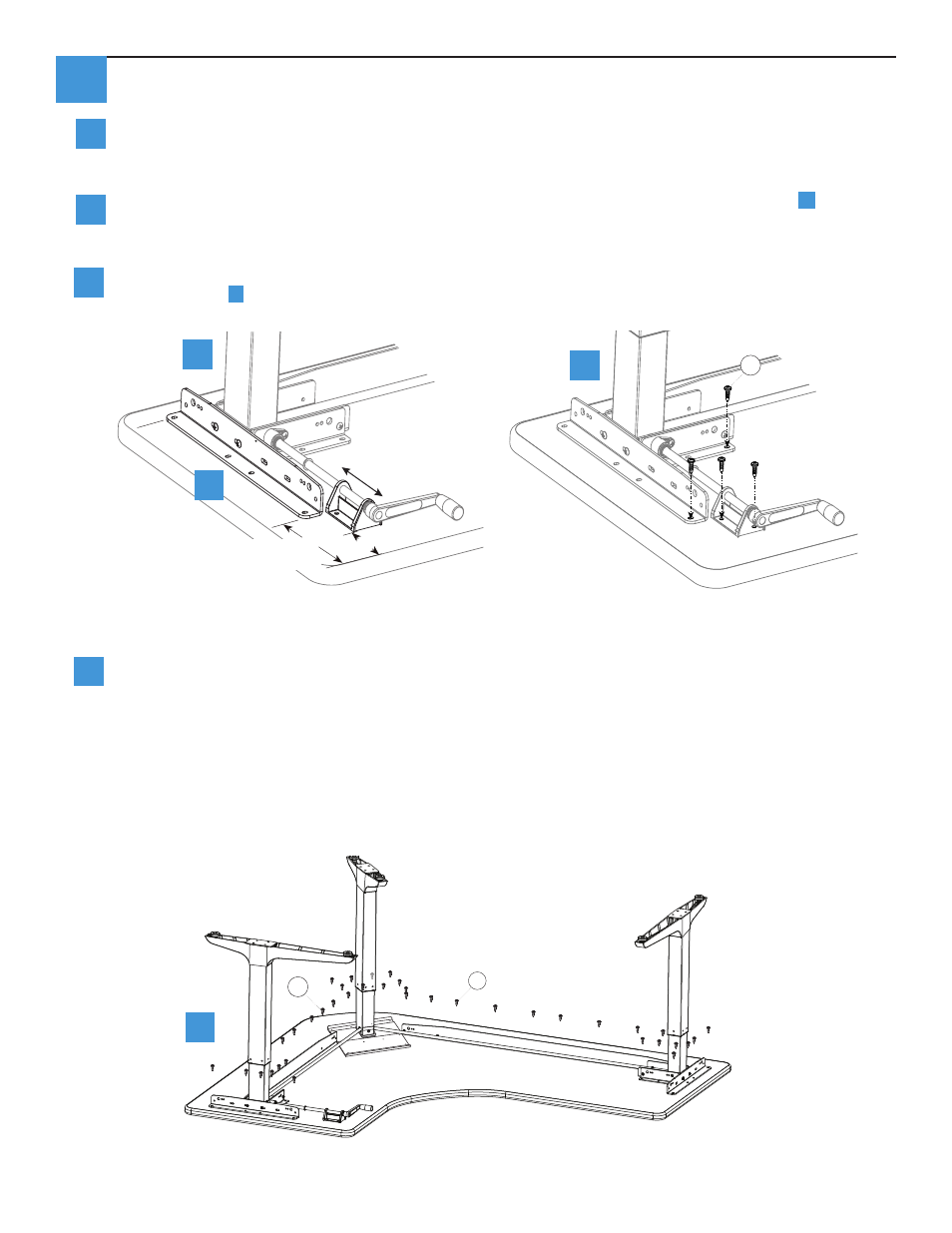

Base-Only Models: Loosely Secure Table Base to Tabletop
Position the leg assembly on the face-down table top. Center the assembly on the table so that
neither of the side legs overlap the edge. Measure carefully to ensure that your table will be
positioned correctly as detailed below before drilling.
With the Crank Handle pushed all the way in, position the Medium Bracket as shown in b below,
based on your table depth. Then pull the Crank Handle out until its bracket is 3½" from the table
edge.
Drill the two leg assembly holes and the two holes for the Crank Handle corresponding to the
screws in step c . Insert these four Pan Head Screws (M) and be sure the handle turns smoothly.
Use the other screw holes to drill the remaining holes for each leg and the Crank Handle. Attach
the desk loosely at all points using Pan Head Screws (M).
c
c
d
Left Leg
assembly
Right Leg
assembly
Center Leg
assembly
Note: The Crank Handle can be installed on either side of the table. It is shown being connected to
the right leg.
M
M
M
b
a
10½" for 30
6¼" for 24"
d
3½
12
a
b
