Workrite Sierra HXL™ 3-Leg Crank Workcenters - Assembly Instructions
24" deep
30" deep

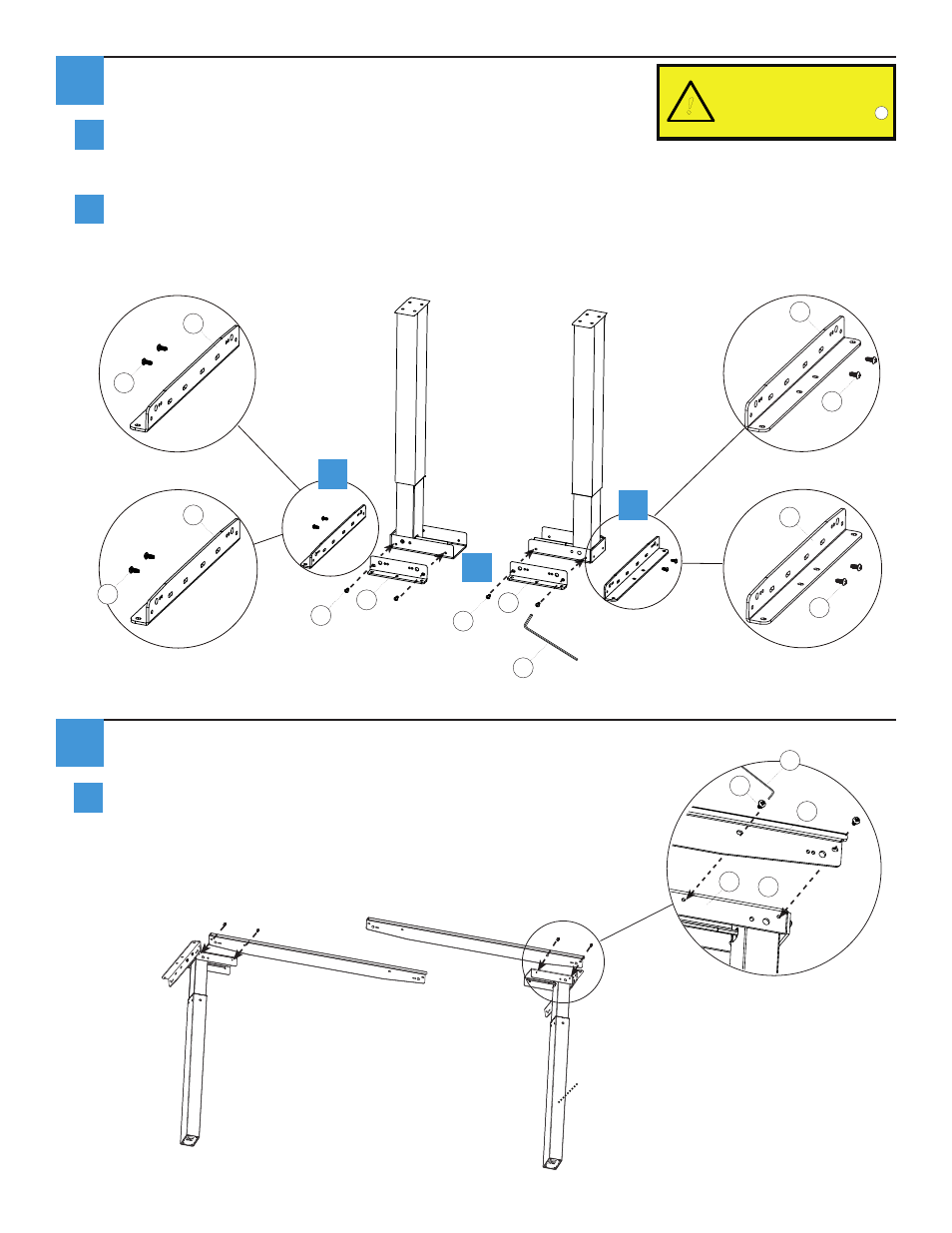

Attach Short and Medium Brackets to Side Legs
Attach both Short Brackets (B) using M6 × 8 mm Button Head
Screws (J). Do not tighten screws completely - allow them to
slide left and right in Bracket.
Attach both Medium Brackets (C) to sides of Legs using M6 × 8 mm Button Head Screws (J). If you
have a 24” deep or less worksurface, use the holes to the rear of the Bracket as shown. For deeper
worksurfaces, use the center holes of the Bracket as shown. Do not tighten screws completely -
allow them to slide left and right in Bracket.
24" deep
30" deep
Attach Long Bracket to Outside Legs
With legs on their sides, attach Long Bracket (S) to back of both
Outside Leg Brackets (D) & (O) using M6 × 8 mm Button Head
Screws (J). The Bracket should have the lip on top, facing away
from the leg. Do not tighten screws completely - allow them to
slide left and right in Bracket.
NOTE: Long Brackets do not attach to Center Leg.
back
Left Leg
Right Leg
&
To avoid stripping the threads,
always insert and make the
first few turns of the screw BY
HAND with an Allen wrench H
ensuring it is in straight.
!
B B
C
C
C
C
J
J
J
J
J
J
H
S
H
D
O
J
b
b
a
3
a
b
a
4
