Workrite Ergonomics | 800.959.9675 www.workriteergo.com

5 of 10

Workrite Sierra HXL™ 3-Leg Crank Workcenters - Assembly Instructions

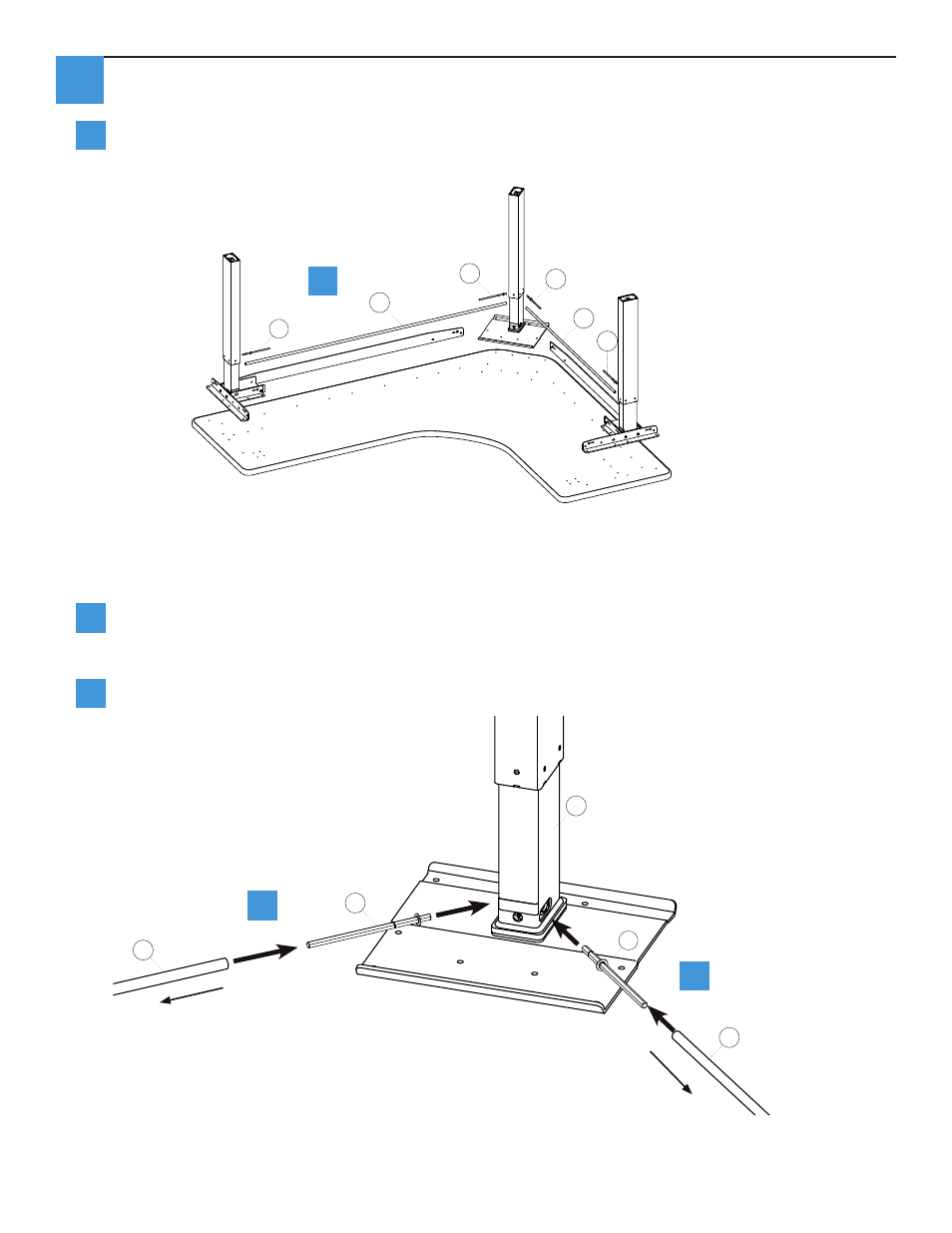

Attach Center Leg to Hex Shafts and Crank Tubes

Lay out the leg assemblies, 4 Hex Shafts (F) & (G), and Crank Tubes (T) in the proper locations for

assembly. Orient the leg assemblies on top of your work surface using the pre-drilled holes on your

Workrite worksurface to align the legs and brackets but do not attach the top yet!

a

Left Leg

assembly

Right Leg

assembly

b

Left Leg

Right Leg

c

Center Leg

assembly

Use one Shallow Hex Shaft (F) to connect Crank Tube (T) to gear mechanism in the side of the

Center Leg (P) pointing to the Right Leg. The shorter end of the hex shaft should be inserted into

the Center Leg.

Use one Deep Hex Shaft (G) to connect Crank Tube (T) to gear mechanism in other side of Center

Leg (P).

F

F

G

G

P

F

G

T

T

T

T

5

a

b

c
