Mobile Acuity LT Wireless System Installation Guide
WARNING Position the Access Point so that it is at least 2 feet away from where people are frequently located.
Installation closer than 2 feet could result in exposure to levels of radio frequency energy that are higher than
recommended by the Federal Communications Commission (FCC).
WARNING Before setup, inspect all equipment for any signs of damage, cracks, improper mechanical function,
exposed wires, or bent connnectors. Replace any damaged equipment.

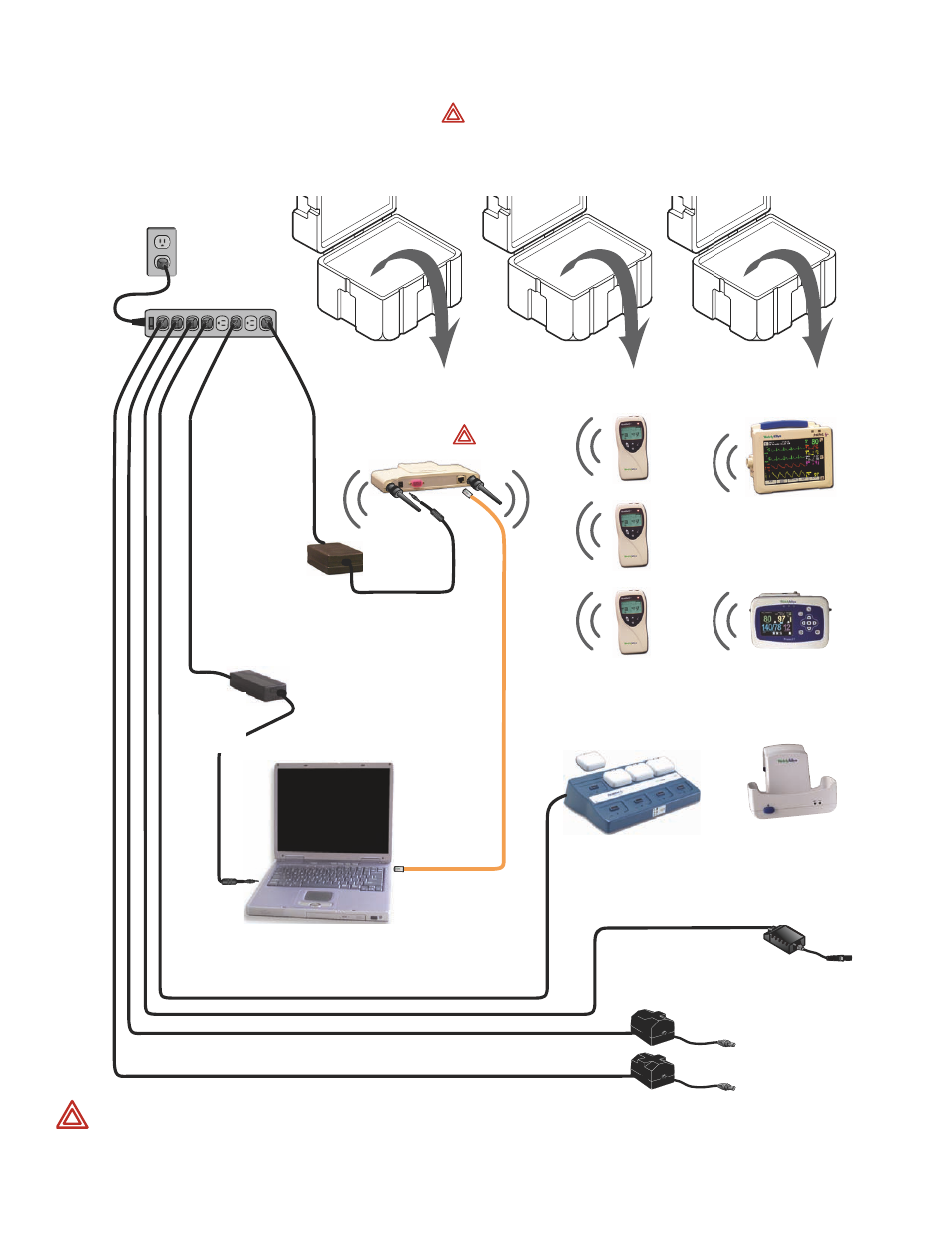

1. Locate AC Power
Source On Site
2. Unpack, Setup, Connect Equipment
AC
Power
Source
Access
Point
Access
Point
Power
Supply
Laptop
Computer
Micropaqs
Micropaq
Battery Charger
Propaq
Wireless CS
Propaq CS
Power
Adapters
To Propaq CS
To Propaq CS
Laptop
Power
Supply
“Crossover”Dat
a
Micropaq
Batteries
Wireless
Case
Micropaq
Case
Propaq CS
or Propaq
LTR Case(s)
See Warning
below
See Warning
below
Propaq LTR
Propaq LTR
Charging
Propaq LTR
Power
To Charging
