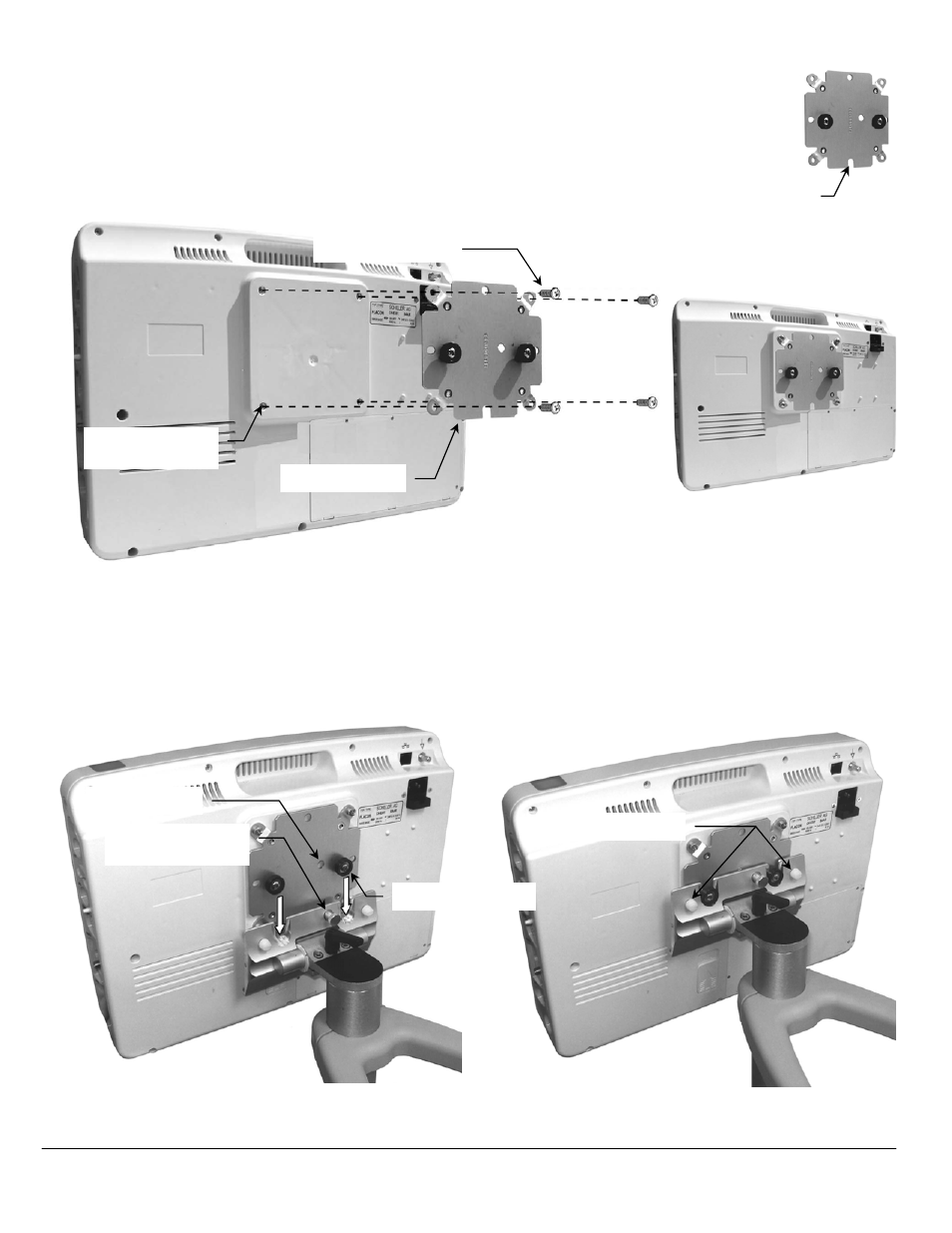

Attaching Mounting Adapter to Monitor
Installation Note: When Installing Mounting Adapter, Guide Slot must be positioned down.
1. Using a Phillips screwdriver, fasten Mounting Adapter to the four (4) threaded
mounting holes on the back of the Monitor with four (4) M4 x 8mm PHMS (below left).
Guide Slot
M4 x 8mm PHMS (4)
Threaded Mounting
Holes (4)
Mounting Adapter
Mounting the Monitor
1. Lower Monitor with Mounting Adapter onto Mounting Plate by guiding the two (2) Guide Bushings into slots in Mounting
Plate (below left). Plunger must snap into clearance hole to secure the monitor (below left).
2. Tighten by hand the two (2) Nylon screws to further secure the Monitor (below right). To remove Monitor, pull Plunger
and lift.
Plunger must snap
into clearance hole
Clearance Hole
Nylon Screws (2)
Guide Bushings (2)
DU-WA-0014-60 Rev A 4/27/10 GCX Corp. Page 4 of 5
