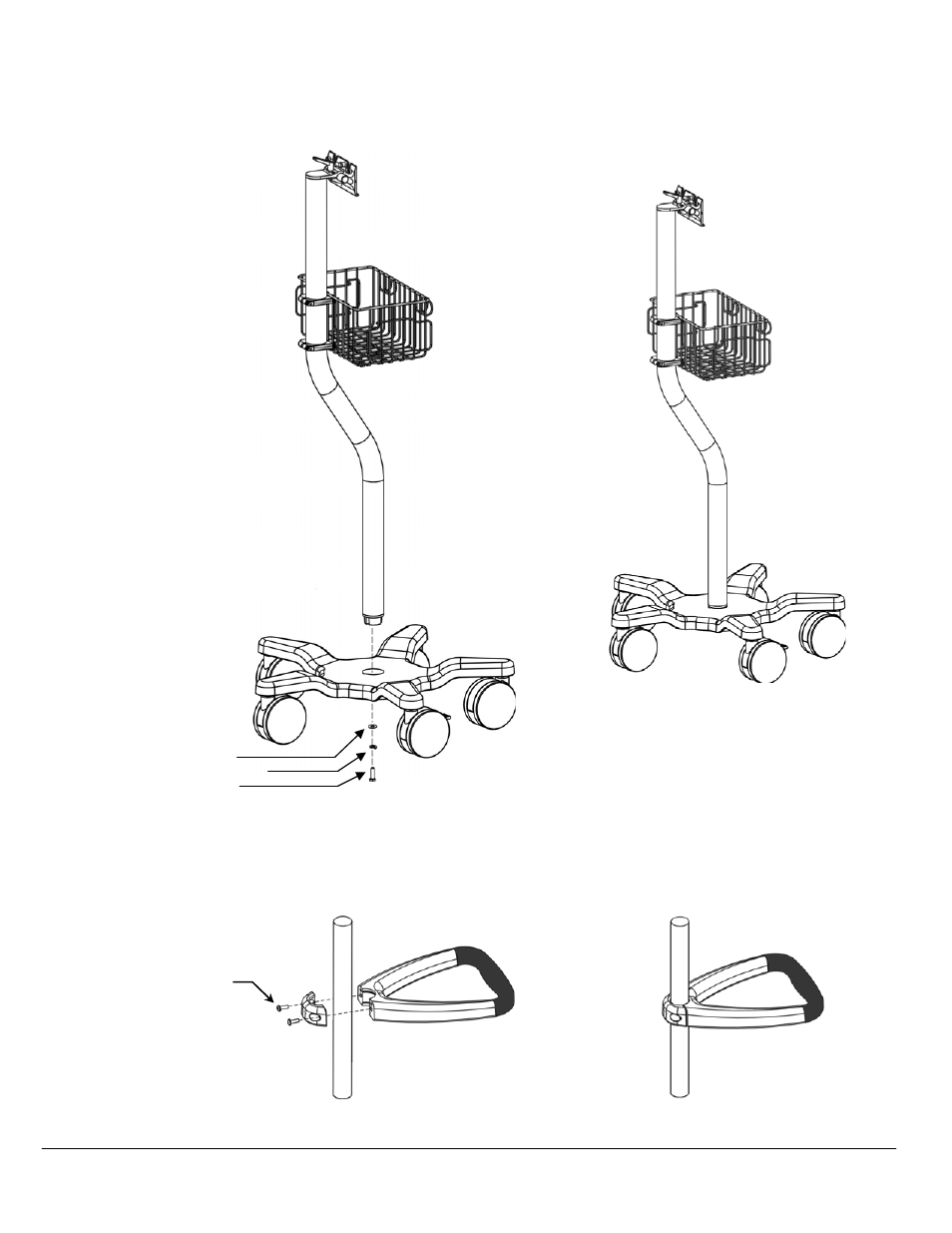

Assembling the Roll Stand (Post to Base)
1. Using a 1/2'' [13mm] wrench, fasten Post to Base with one (1) 5/16-18 x 1'' HHCS, 5/16 split lock washer, and 5/16''
flat washer as shown below.
5/16 Flat Washer (1)
5/16 Split Lock Washer (1)
5/16-18 x 1” HHCS (1)
Attaching the Roll Stand Handle
Using a Phillips screwdriver, fasten Handle to Roll Stand Post with two (2) #10-32 x 9/16'' PHMS as shown. Alternately
tighten Handle screws until Handle does not rotate around Post.
10-32 x 9/16 PHMS (2)
