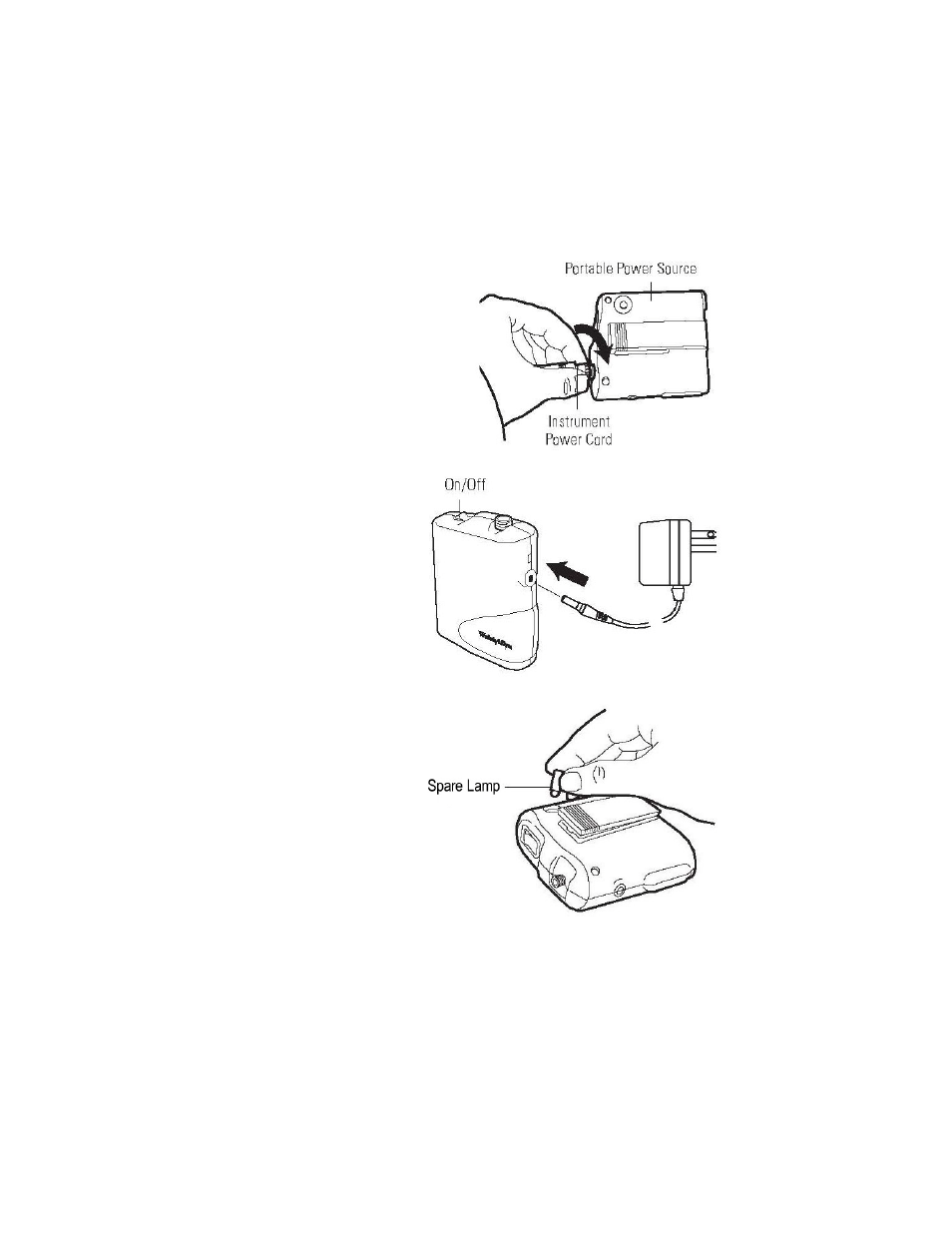

Connecting Instrument to Portable Power Source:

• Plug instrument power cord into the

power cord connector port on top of
the power source.

• Push in until firmly in place.

• Gently screw the external

connector sleeve clockwise to secure
(optional).

Recharging the Portable Power Source:

• Turn portable power source off.

• Disconnect instrument from

power source.

• Plug charging transformer into

portable power source.

• Plug charging transformer into

wall socket. LED light
indicates unit is charging.

• Disconnect charging

transformer from power source
when fully charged, after 14-
16 hours.

Accessing Spare Lamp

• Lift the spare lamp out of its

receptacle and use.
