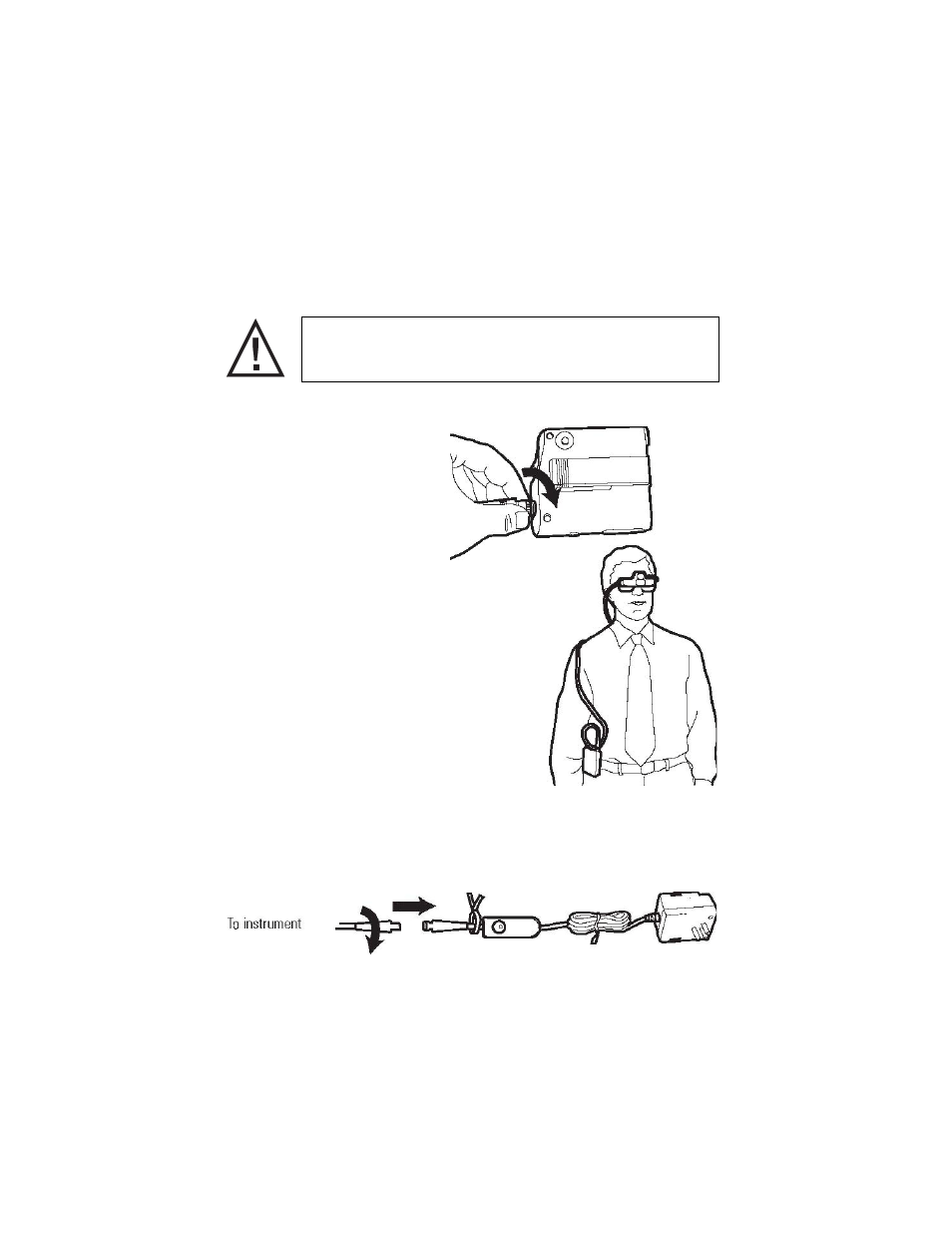

Connecting to the Power Source
NOTE: The instrument power cord must be plugged into either a Welch Allyn
Portable Power Source No. 75260 or a Welch Allyn Direct Plug-In Power
Source No. 75210.
Portable Power Source
• Plug instrument power cord into
the power cord connector port on
top of the power source.
• Push in until firmly in place.
• Gently screw the external
connector sleeve clockwise
to secure (optional).
• Attach the Portable Power
Source by using the belt clip.
• The instrument is now ready
for use.
Direct Plug-in Power Source
• Plug Power cord from the
Binocular microscope into
the Direct Plug-in Power cord.
• Push in until firmly in place.
• Gently screw the external

connector sleeve clockwise to sec
ure (optional).
• Plug direct power source into a nearby receptacle.
• The instrument is now ready for use.
CAUTION: The lamp housing becomes hot when the lamp is on for
more than 5 minutes and can cause a burn if it contacts the skin. Allow
at least 10 minutes for cooling between the uses of the illuminator.
