Accessories

Pneumatic Speculum Holder

• A pneumatic speculum holder with a

4x’s magnification lens can be used
to aid in examination of the ear.

Lamp Replacement

• To change the lamp, flip the binocular assembly into its up position.

• Remove the reflector assembly by placing the thumb on the notch located on the

bottom of the reflector housing and pushing the reflector assembly. (Step 1)

• Remove lamp and insert a new Welch Allyn lamp No. 08500 into the back of the

reflector. (Step 2)

• Replace reflector housing into instrument and push until it snaps into place.

NOTE: Reflector assembly air vents should be positioned top and bottom.

CAUTION: Lamps may become very HOT. Be sure to allow lamps to
cool before changing.

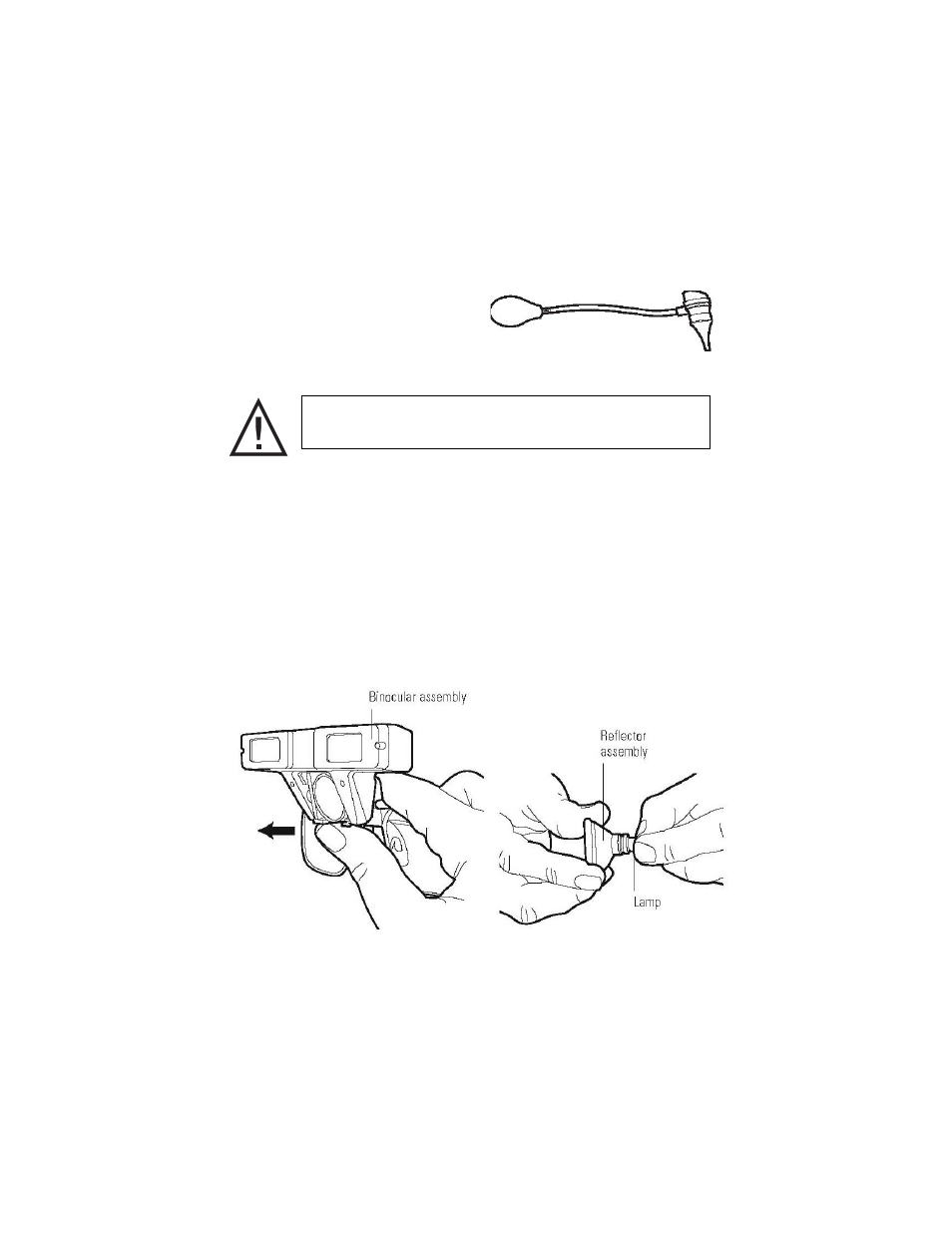

Step 1

Step 2
