Chapter 2: Welch Allyn OAE Hearing Screener
Components and Hardware Setup
Cable Connections
The cable connections to the Welch Allyn OAE Hearing Screener box are described in the figure
and the instructions below.

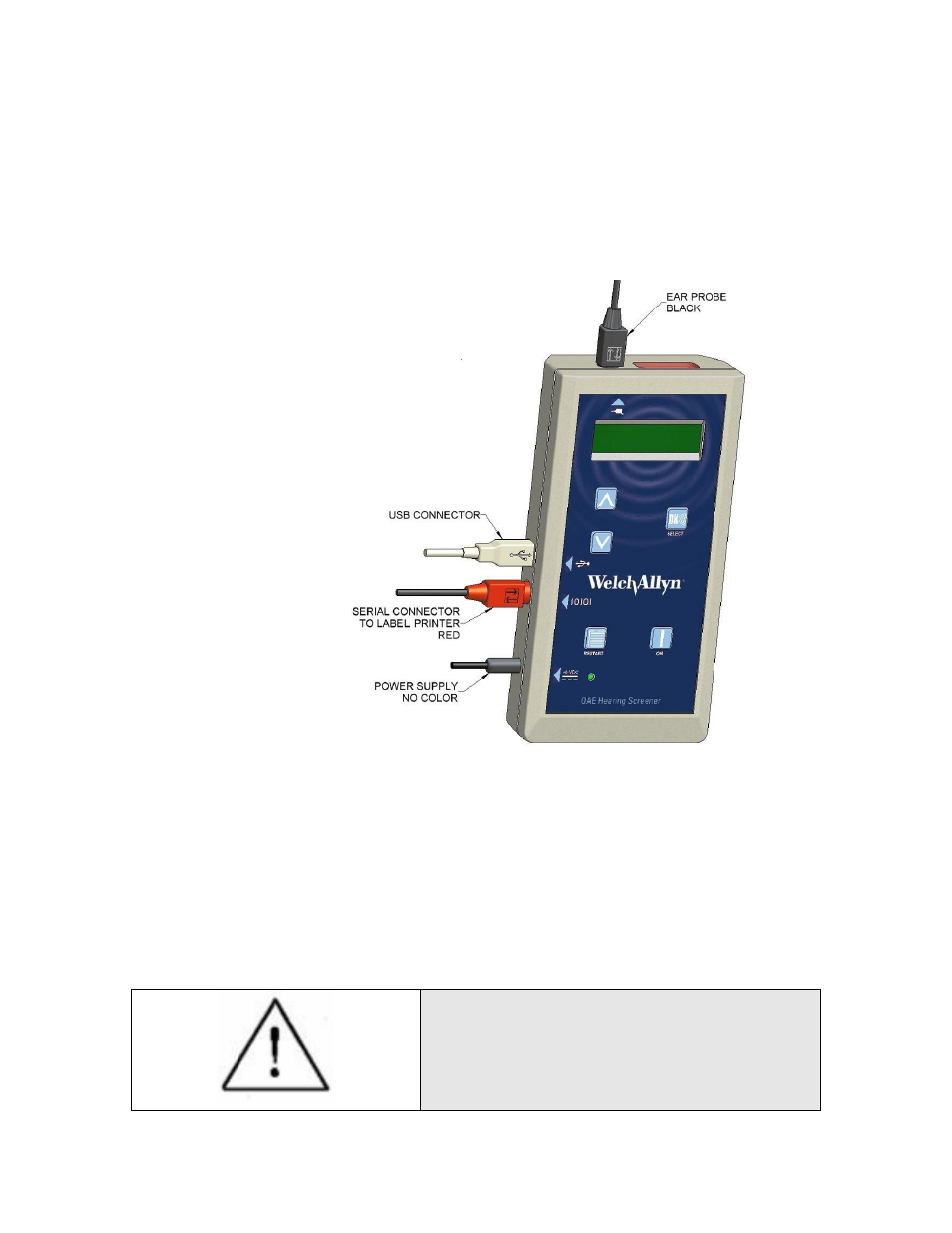

Welch Allyn OAE Hearing Screener Box with Cable Connections Indicated
Probe Cable Assembly
1. Align the pins in the connector end of the probe cable to the holes in the jack on the top of the
Welch Allyn OAE Hearing Screener box. An arrow on the connector shows the correct
orientation of the probe connector to the Welch Allyn OAE Hearing Screener.
2. After verifying the connector is properly aligned, slide the probe connector end securely into
its matching connector.
CAUTION
No other probes are compatible with the Welch Allyn
OAE Hearing Screener (blue) hardware 29400/29401.
The connectors do not match and attempting to force
the connectors together may damage pins in the
connector.
