Configuration

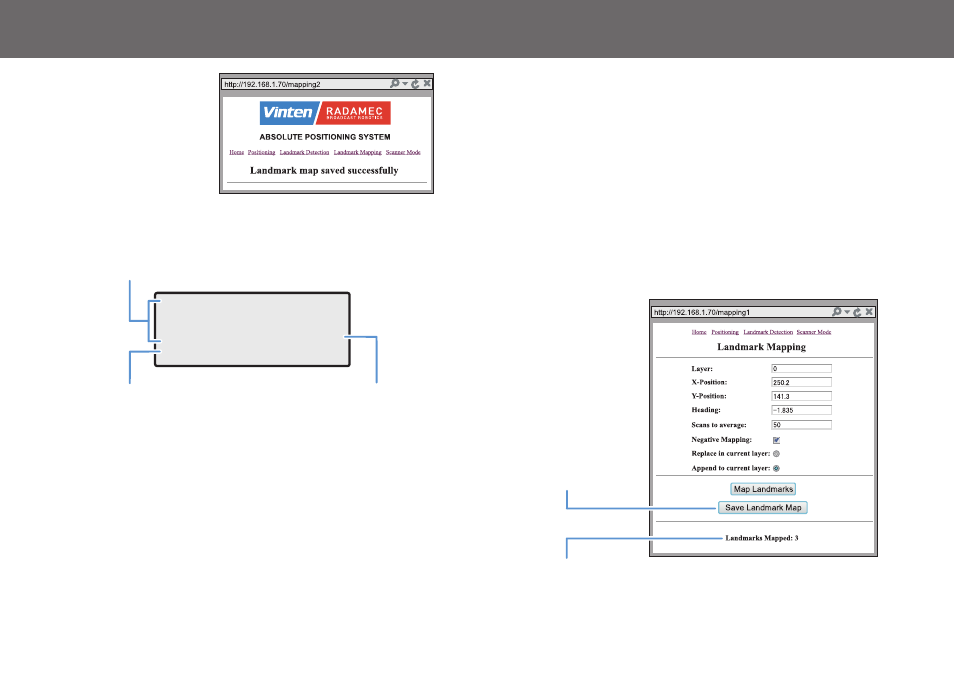

5. Click the Save
Landmark Map to store
the scanned information.
A confirmation page
opens.
6. This returns the APS scanner unit to normal operation. The LCD
display will now show the following information:
Adding Additional Targets to a Landmark Map
Additional reflective target locations can be added to the current
landmark map at any time. Common scenarios for this requirement are:
• Additional reflective targets have been installed in the studio
• Previously obscured reflective targets have come into view of the
APS scanner at the current pedestal location in the studio
• Additional previously unmapped reflective targets have come into
view at a different position in the studio
The APS scanner can be instructed to scan for previously unmapped
targets and add them to the current landmark map.
1. Click to select the Landmark Mapping link from any page in the
APS user interface.
2. On the landmark mapping page, tick to select Negative Mapping
and Append to current layer.
3. Click the Map Landmarks button. The APS scanner unit will only
scan for previously undetected targets. When the scan is
complete:
The current position
of the pedestal
The number of landmarks
(reflective targets)
currently visible to the
APS scanner unit Current mode is
navigation mode
X: 1120.7
Y: 1905.5
Q: -12.697
Mode: Nav
layer
dev
lmark
: 0
: 2
: 6
Click to store the new
targets to the current
landmark map
The number of new
targets detected
