Configuration
Target Type Selection
Before a landmark map can be created, the type of reflective targets
used in the studio installation must be programmed into the APS
scanner.
1. From the home page, click to select Landmark Detection from
the row of page links above the information table.
2. On the landmark detection page, select the reflector type being
used in the studio:
Landmark Map Scanning
1.
Click to select the Landmark Mapping link.
2. Check that the option Replace in current layer is selected.
3. Click the Map Landmarks button to begin the scanning process.
4. When the scan has been completed, the landmark mapping page
updates with the following information:

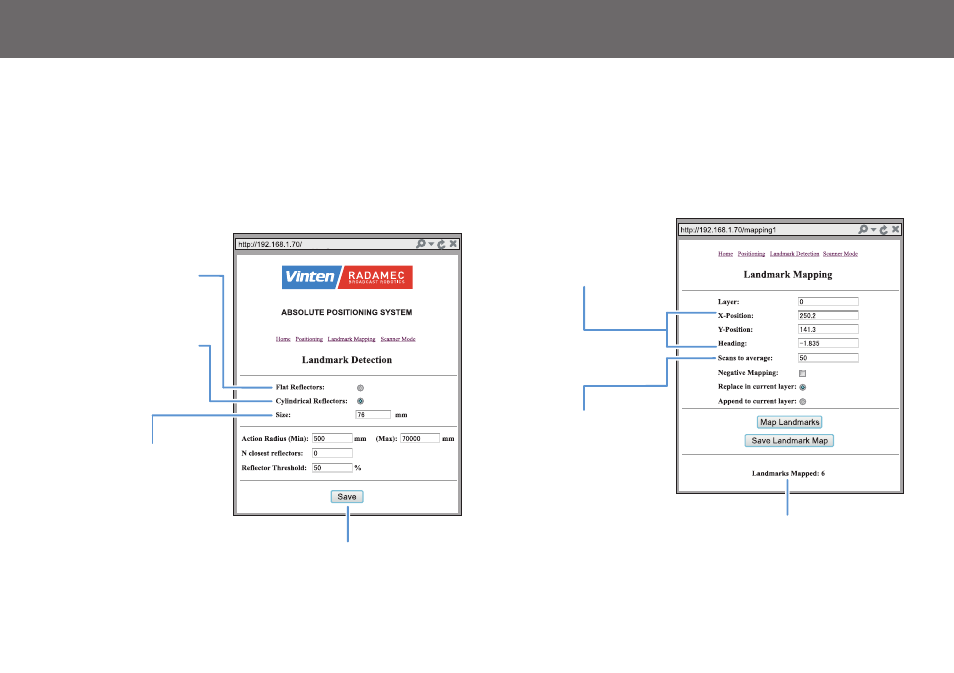

The size of the
installed reflectors can
be change if required
(default sizes are 76
mm diameter for the
bollard and 75 mm
width for the flat
targets)
Select if the
studio is using
the wall mounted
flat reflectors
Click to store any
changes to the
target settings
settings2
Select if the
studio is using
the cylindrical
bollard reflectors
The position of
the pedestal
The number of
scans performed
to create the
landmark map
The number of landmarks
(reflective targets) detected
during the mapping process
