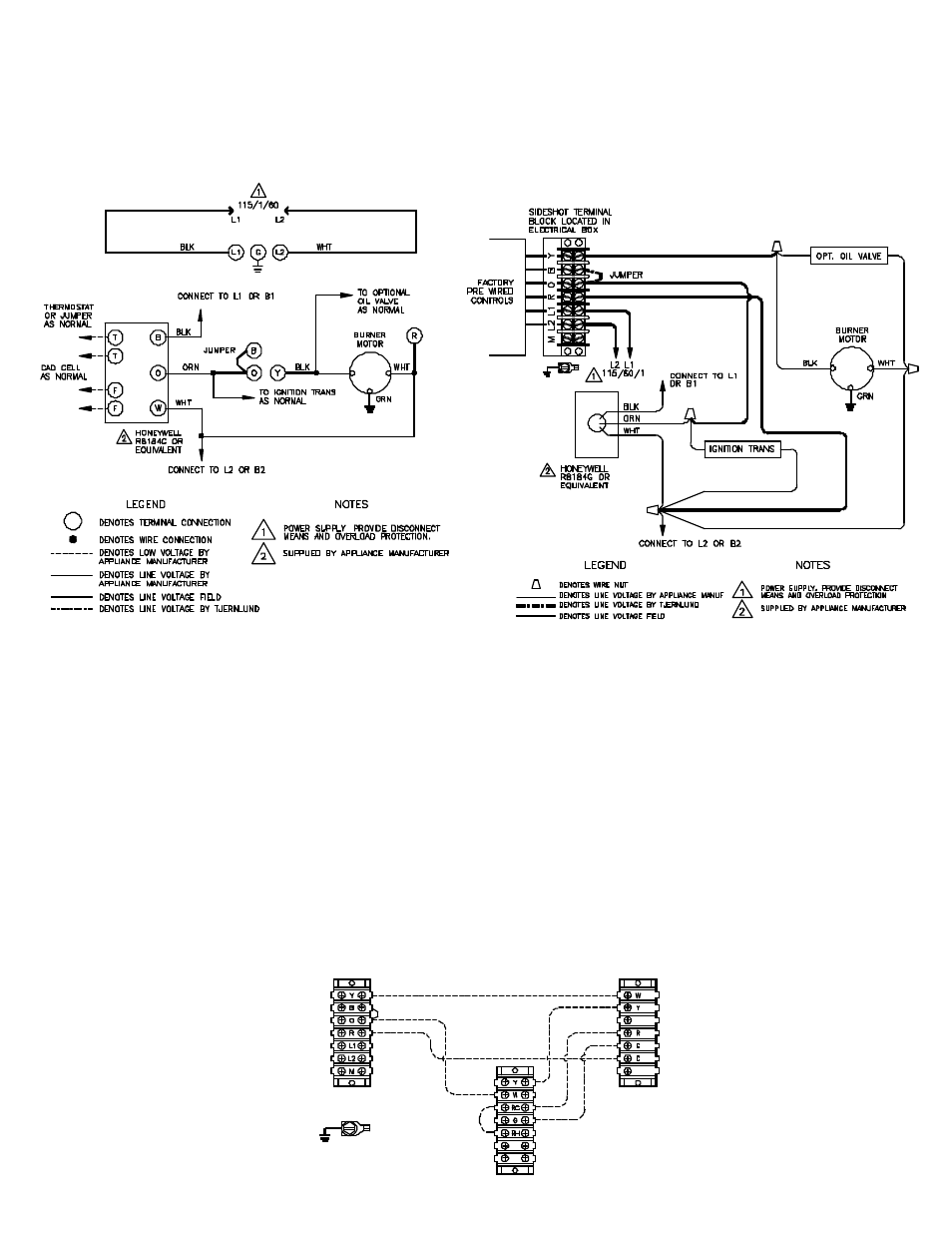

SIDESHOT CONNECTED TO AN R8184G WITH THE APPLIANCE

BURNER MOTOR LESS THAN 6.2 AMPS @ 120 VAC

12

1. Separate the black burner motor wire from the Orange wire of

the R8184G. NOTE: Do not separate ignition transformer wire
or the optional oil valve wire from the Orange.

2. Connect the Black burner motor wire to terminal Y on the

SideShot terminal strip.

3. Connect the Orange wire of the R8184G to the O terminal on

the SideShot terminal strip.

4. Connect the White wire of the R8184G to the R terminal of the

SideShot terminal strip.

NOTE: The White wire from the R8184G will also be connected to

L2 or B2 as normally done when conventional venting.

5. Connect L1 terminal of the SideShot terminal strip to L1.

6. Connect the L2 terminal of the SideShot terminal strip to L2.

7. Connect the Ground to grounding screw in SideShot electrical box.

NOTES: When interlocking the SideShot with the primary control of the appliance, wire all other furnace/boiler controls as

normally done when conventional venting before continuing. Disconnect power from the appliance before attempting to
interlock the SideShot.

LADDER DIAGRAM

SIDESHOT CONNECTED TO A 24 VAC THERMOSTAT CIRCUIT

FURNACE

TERMINAL

STRIP

SIDESHOT
TERMINAL

STRIP

THERMOSTAT

TERMINAL

STRIP

CONNECTION DIAGRAM
