Printer Options
ZebraNet® 10/100 Internal Print Server Option 44
980608-001 Rev. A GK420d User Guide 12/14/07

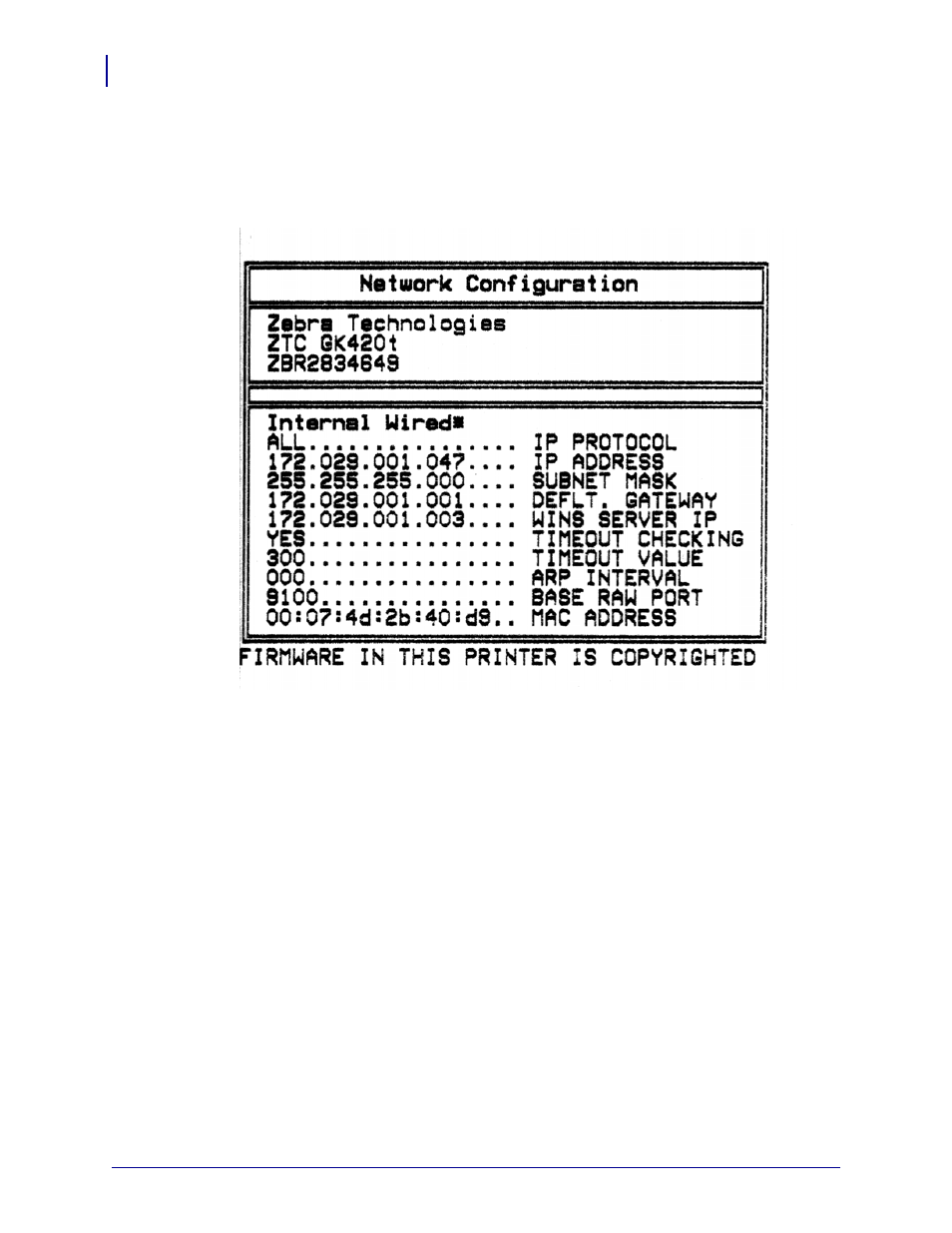

Printer Network Configuration Status Label
G-Series printers with the ZebraNet® 10/100 Internal Print Server option on-board print an
additional printer configuration status label for information needed to establish and trouble
shoot network printing. The following printout is printed with the ZPL
~WL
command.
The regular printout of the configuration status label has some of the printer’s network settings
such as IP Address, on the lower half of the printout.
The printer’s IP address is needed to identify and configure the printer for operations on your
network. See the ZebraNet® 10/100 Internal Print Server manual for more information.
