A-5

APPENDIX A SERVICE TOOL INSTRUCTIONS

5.

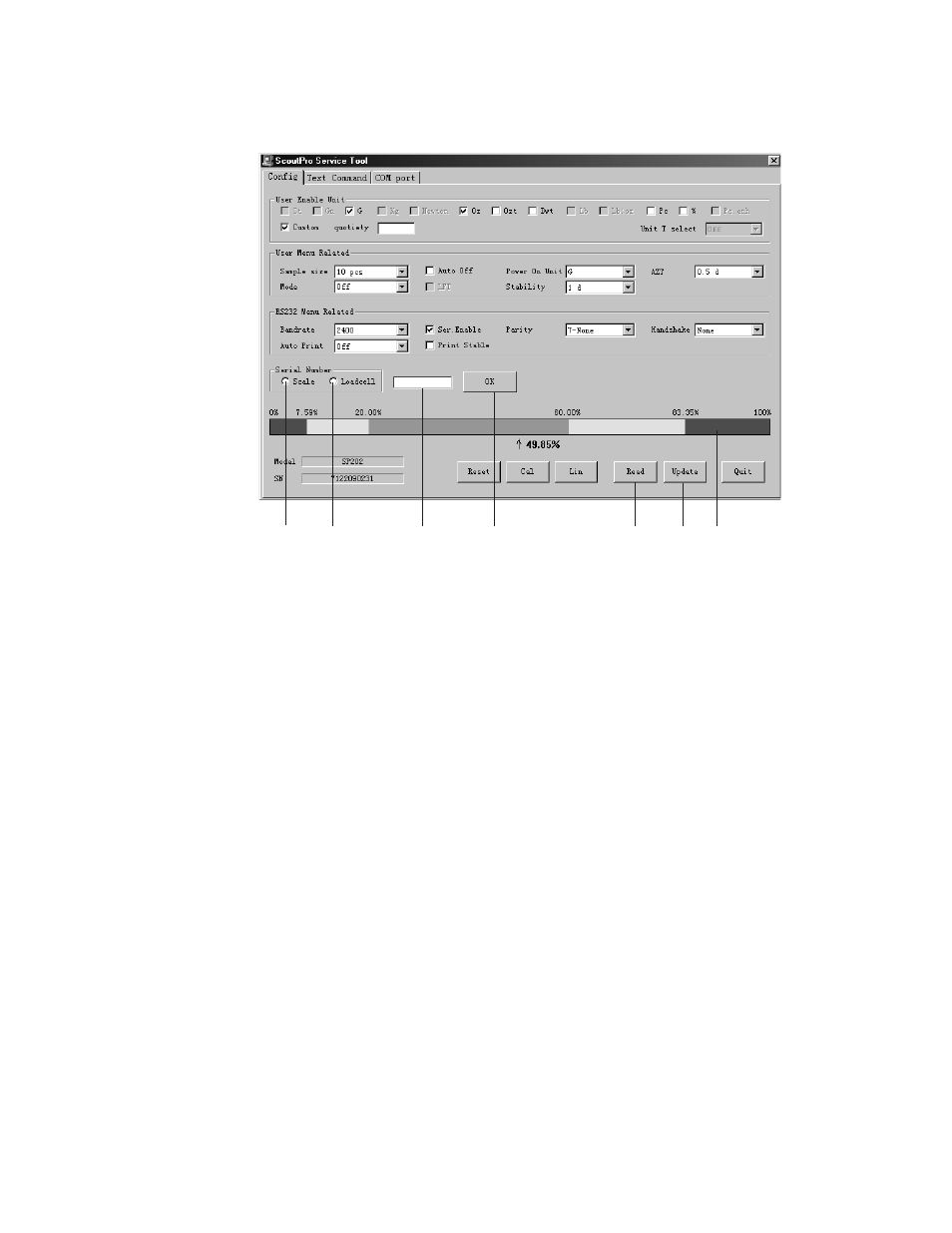

When communications are reliable return to the Config tab. Press the read button (A) and

the data will be read from the balance. See Figure A-7.

Figure A-7.

B

C

D

E

A

F G

A.5 USING CONFIGTOOL.EXE. (CONT.)

6.

If the PC Board has been replaced, refer to A.6.

7.

If the load cell was replaced, follow the same procedure as above except enter the load

cell serial number and click on Load cell (C) in the serial number box.

8.

The bar (G) is a graphical indication of the portion of the transducer output that is being

used.

A.6

USING CONFIG TOOL AFTER REPLACING THE MAIN PC BOARD

1.

Using ConfigTool after a new Main PC board has been installed, make sure the balance

lockout switch is in the unlocked position.

2.

Install an RS232 option with the factory jumper (J2 on the RS232 option) in the balance.

3.

The AC adapter must be used

4.

Turn the balance on.
