9

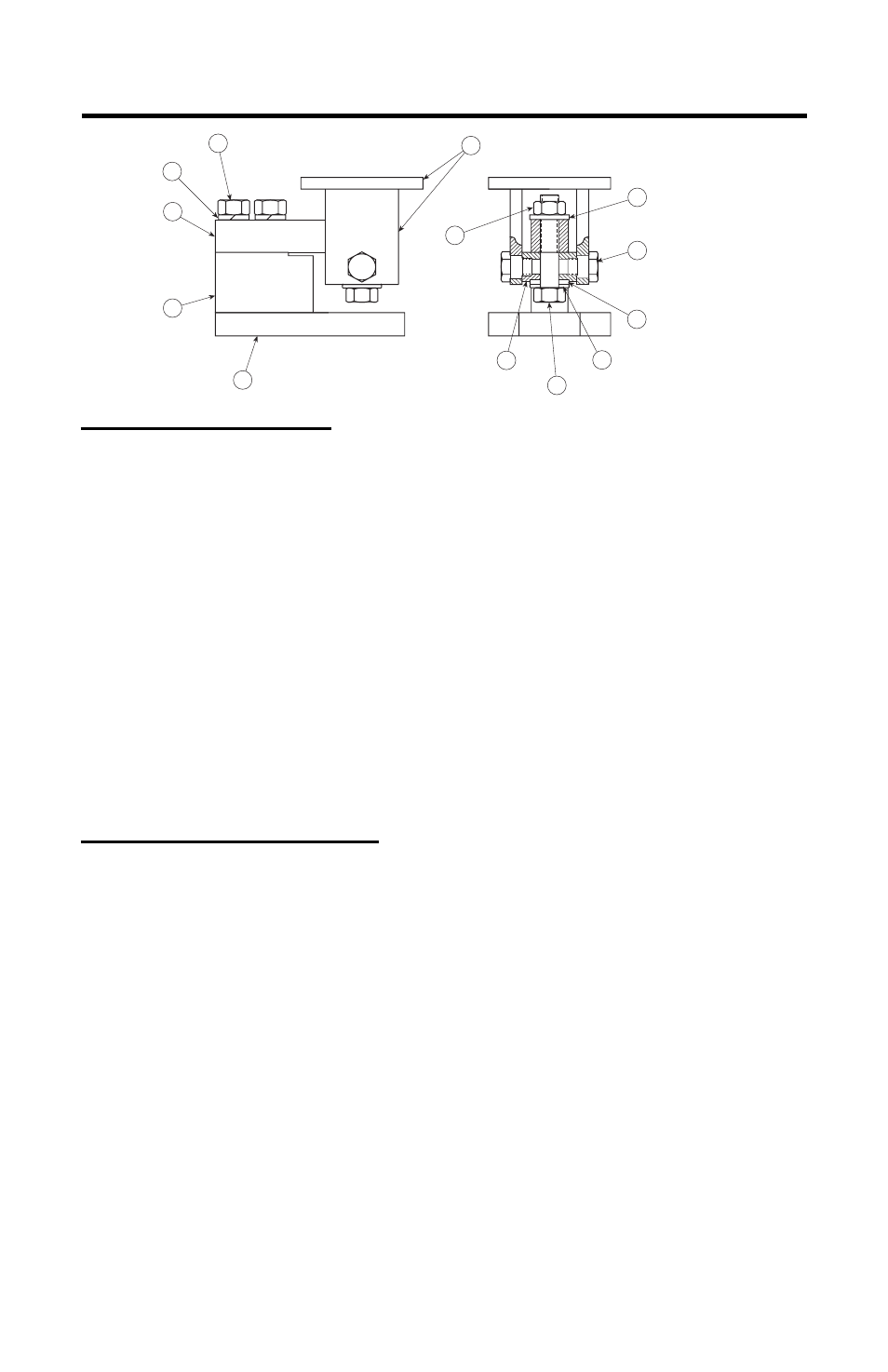

6. Maintenance and Replacement Parts
RL1800 Tool Steel Modules
No. Description No. Req. Replacement Part Numbers
250lb-5,000lb
5,000lb-10,000lb
1 Base Plate .................................... 1 ............ 22723 ..................... 22728
2 Load Cell Mounting Block ............ 1 ............ 22724 ..................... 22729
3 Lock Washer ................................ 2 ............ 15167 ..................... 15181
4 Load Cell Bolt ............................... 2 ............ 14765 ..................... 14788
5 Upper Support ............................. 1 ............ 22725 ..................... 22730
6 Jam Nut ........................................ 1 ............ 14664 ..................... 14687
7 Flat Washer .................................. 1 ............ 15173 ..................... 15179
8 Shoulder Bolt ................................ 2 ............ 22726 ..................... 22726
9,10 Spherical Washer Set ................... 1 ............ 15198 ..................... 15120
11
Hex Head Loading Bolt ................ 1 ............ 14759 ..................... 14786
12 Upper Support Mounting Block .... 1 ............ 22727 ..................... 22731
13 Load Cell ...................................... 1 ............ See Load Cell Selection Guide
RL1800 Stainless Steel Modules
No. Description No. Req. Replacement Part Numbers
1,000lb-4,000lb
5,000lb-10,000lb
1 Base Plate .................................... 1 ............ 22732 ..................... 22739
2 Load Cell Mounting Block ............ 1 ............ 22733 ..................... 22740
3 Lock Washer ................................ 2 ............ 15168 ..................... 15182
4 Load Cell Bolt ............................... 2 ............ 14766 ..................... 14789
5 Upper Support ............................. 1 ............ 22734 ..................... 22741
6 Jam Nut ........................................ 1 ............ 14766 ..................... 14688
7 Flat Washer .................................. 1 ............ 15175 ..................... 15180
8 Shoulder Bolt ................................ 2 ............ 22735 ..................... 22735
9 Concave Washer .......................... 2 ............ 22736 ..................... 22742
10 Convex Washer Set ...................... 2 ............ 22737 ..................... 22743
11 Hex Head Loading Bolt ................ 1 ............ 14760 ..................... 14787
12 Upper Support Mounting Block .... 1 ............ 22738 ..................... 22738
13 Load Cell ...................................... 1 ............ See Load Cell Selection Guide
2
3
4
1
5
6
7
8
9
10
11
12
13
