Page 3: Reconnect the j-box cable to the j-box

AC/DC POWER SUPPLY ADAPTOR BOX KIT
3

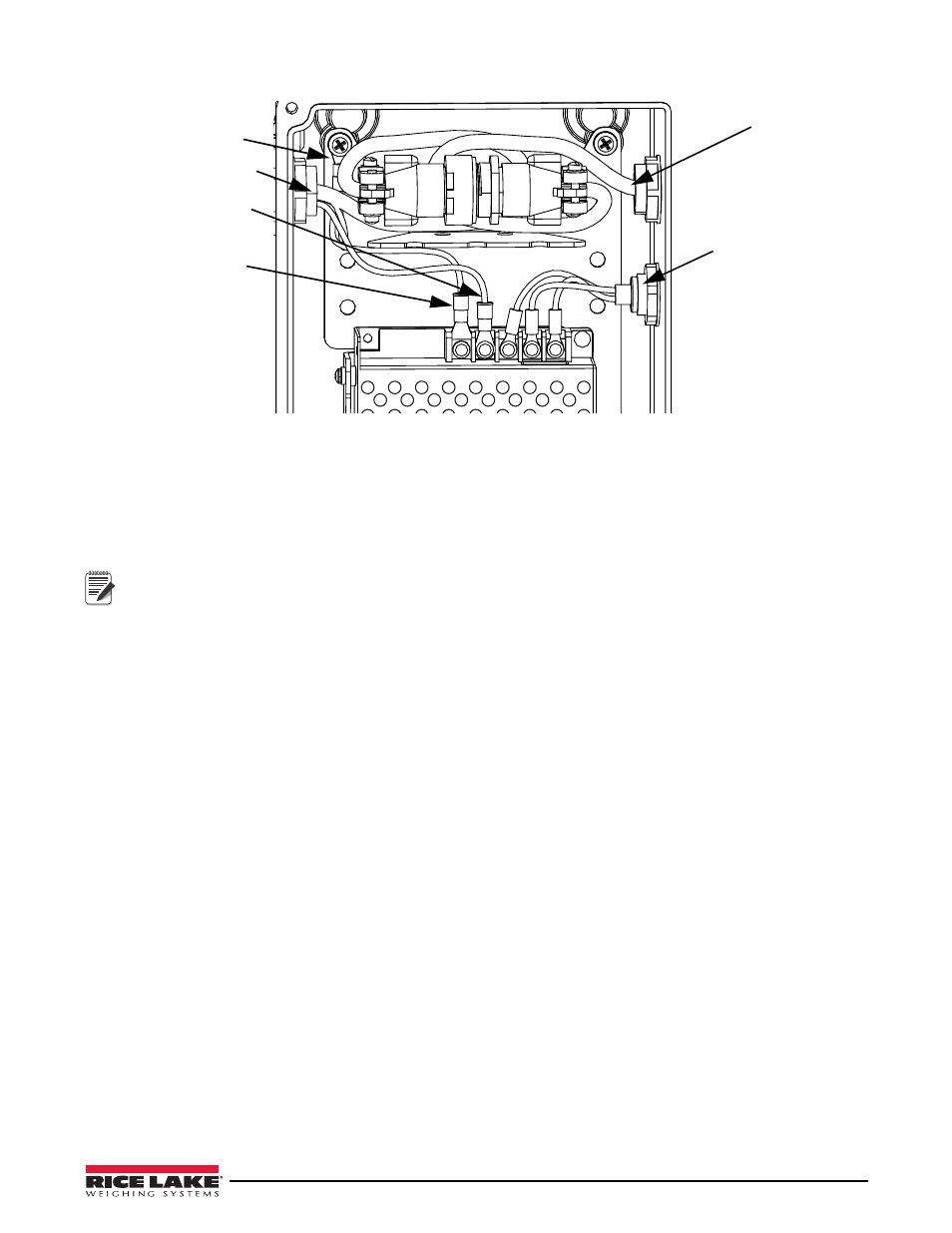

Figure 5. Power Supply Connections
4. Disconnect the homerun cable from the weighcenter (see weighcenter manual PN 156758) and pull it out of the
conduit and conduit elbow.
5. Insert the conduit elbow into the designated hole in the enclosure. Secure with nut.
6. Pass the weighcenter cable from the inside of the enclosure through the conduit elbow and conduit to the
weighcenter.
7. Reconnect the cable to the weighcenter.
The cable to the weighcenter is part of existing assembly and runs through existing conduit retrofitted to
power supply box.
8. Disconnect the cable from the j-box.
9. Connect conduit elbow to the enclosure at designated hole and secure with nut.
10. Connect the other conduit elbow to the frame near the j-box.
11. Pass the j-box cable through the conduit elbow, supplied conduit and conduit elbow on the frame.
12. Reconnect the j-box cable to the j-box.
13. Connect the j-box cable connector and the weighcenter cable connector inside enclosure.
14. Secure connectors and excess cable with zip-ties inside the enclosure.
Ground (Green)
-12V (Black)
+12V (Red)
Power Cord
To J-Box
J-Box to Weighcenter
+V -V GND L N
Note
