Rice Lake EL204 Signal Trim User Manual
Installation instructions, El-204

January 2007
98088
EL-204
Installation Instructions
For PN 73428
The EL-204 is a signal trim junction box that can accommodate up to four load cells.
It has an ABS molded enclosure and molded-in nylon compression cable fittings that provide an extra waterproof
seal. Figure 1 illustrates the EL-204 junction box with its six-screw attachment lid removed.

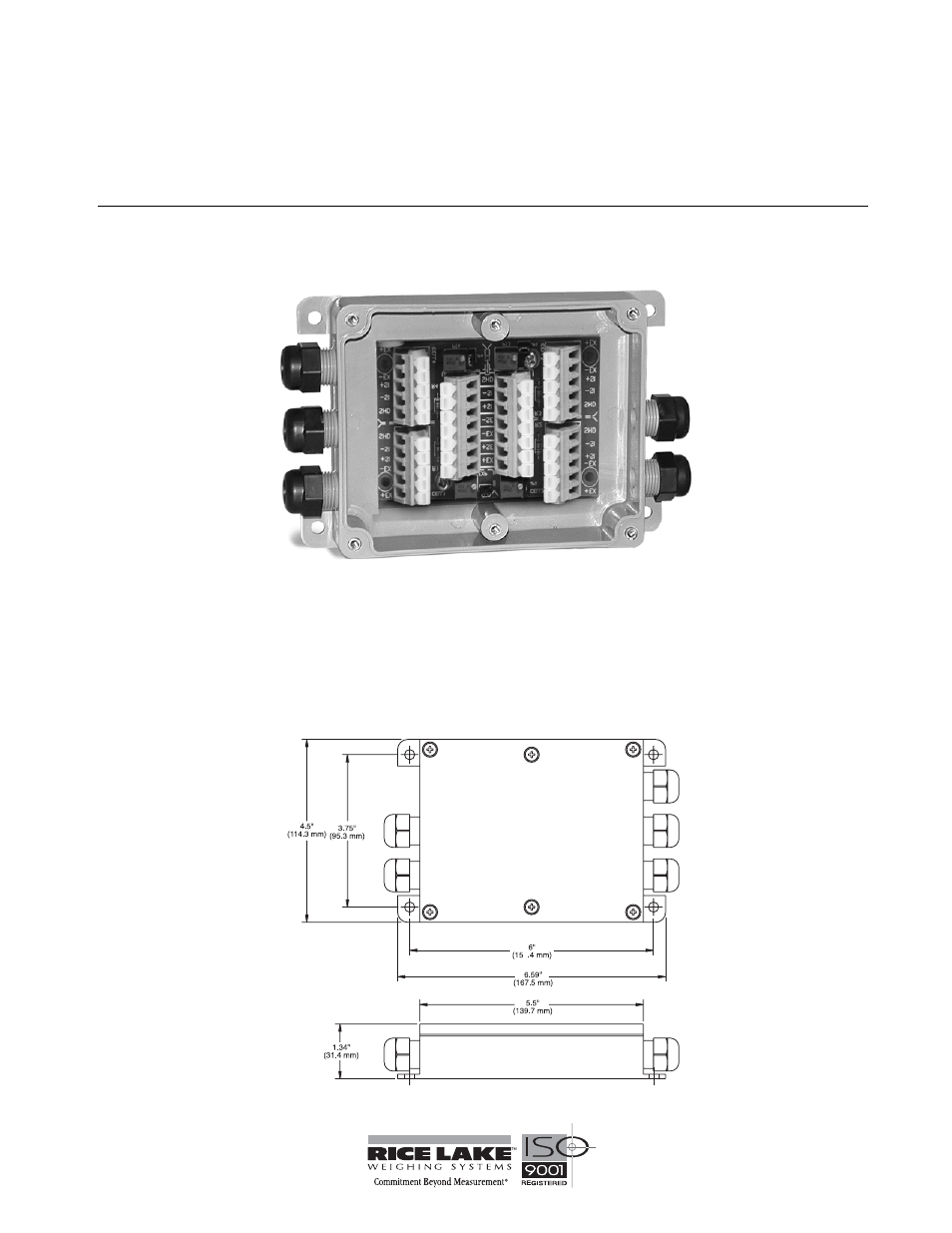

Figure 1. EL-204 Junction Box
EL-204 Junction Box Mounting Procedure
Mount the junction box in a location convenient for servicing and away from standing water. Try to mount the
enclosure in a location so that the load cell cables need not be cut, nor length added. Load cell output is
temperature compensated for the supplied cable length. Altering that length can change the cell’s signal output.
Depending on the mounting surface, the EL-204 enclosure can be attached using two pan-head screws, bolts or
other suitable fasteners. Figure 2, below, shows the dimensions for mounting the enclosure.
Figure 2. EL-204 Enclosure Dimensions
