9. Once installing the power supply is complete, position the backplate over the enclosure and reinstall the
backplate screws. Use the torque pattern shown in Figure 7 to prevent distorting the backplate gasket.
Torque screws to 15 in-lb (1.7 N-m).
1
3
5
14
17
16 12
9
8
7
10
11
18
15
4
2
6
13
T o r q u e b a c k p l a t e s c r e w s
t o 1 5 i n - l b ( 1 . 7 N - m )

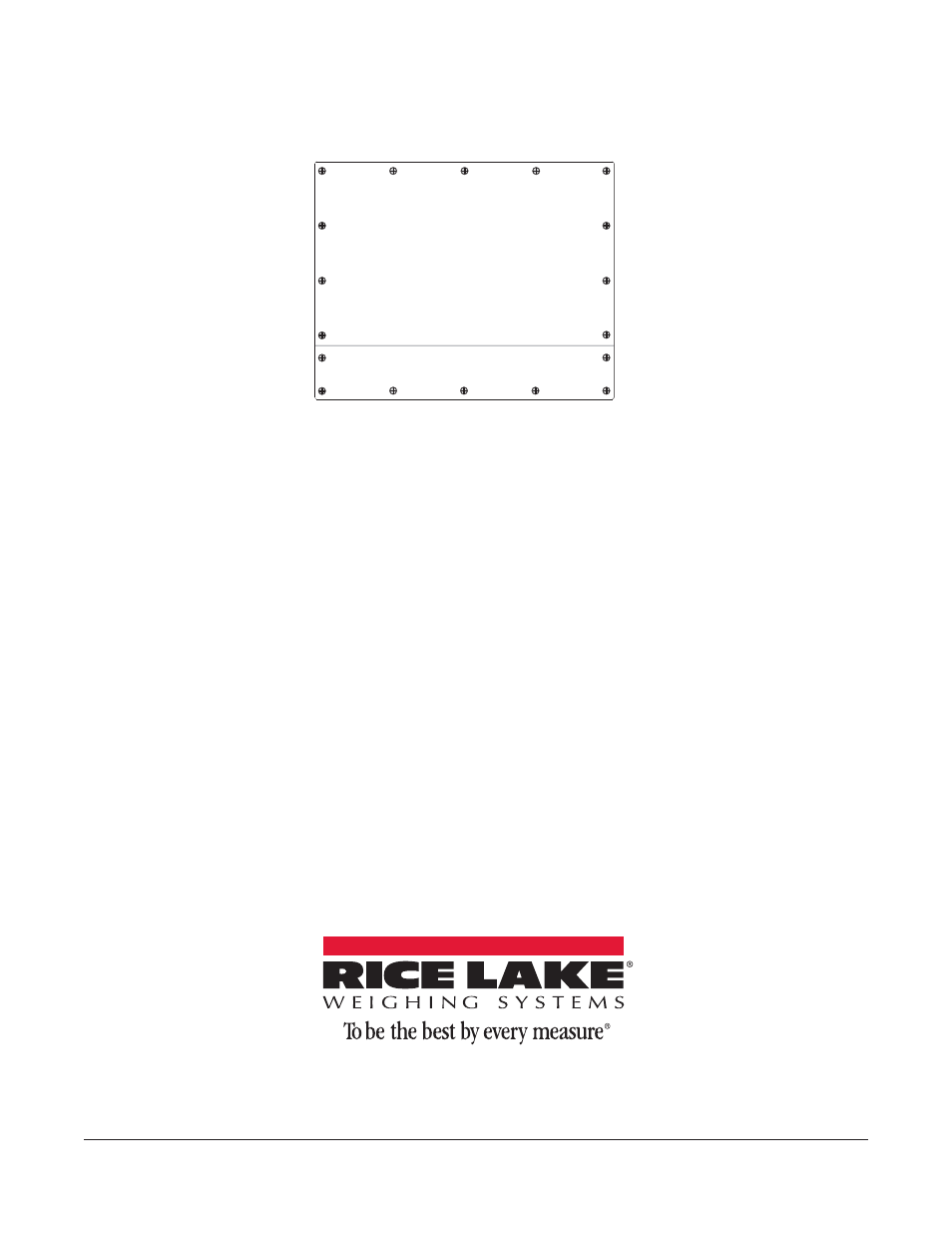

Figure 7. Backplate Torque
10. Torqued screws may become less tight as the gasket is compressed during torque pattern, therefore a
second torque is required using the same pattern and torque value.
Specifications
Input Voltage
9–36 VDC
Output Voltage
+6V (CN2, pin1), –6V (CN2, pin 4)
Output Current
Up to 2.08A
Rated Power
25W
