Rice Lake RL50210 TA, 50-500 lb. Capacities Mild Steel User Manual
Page 11
11

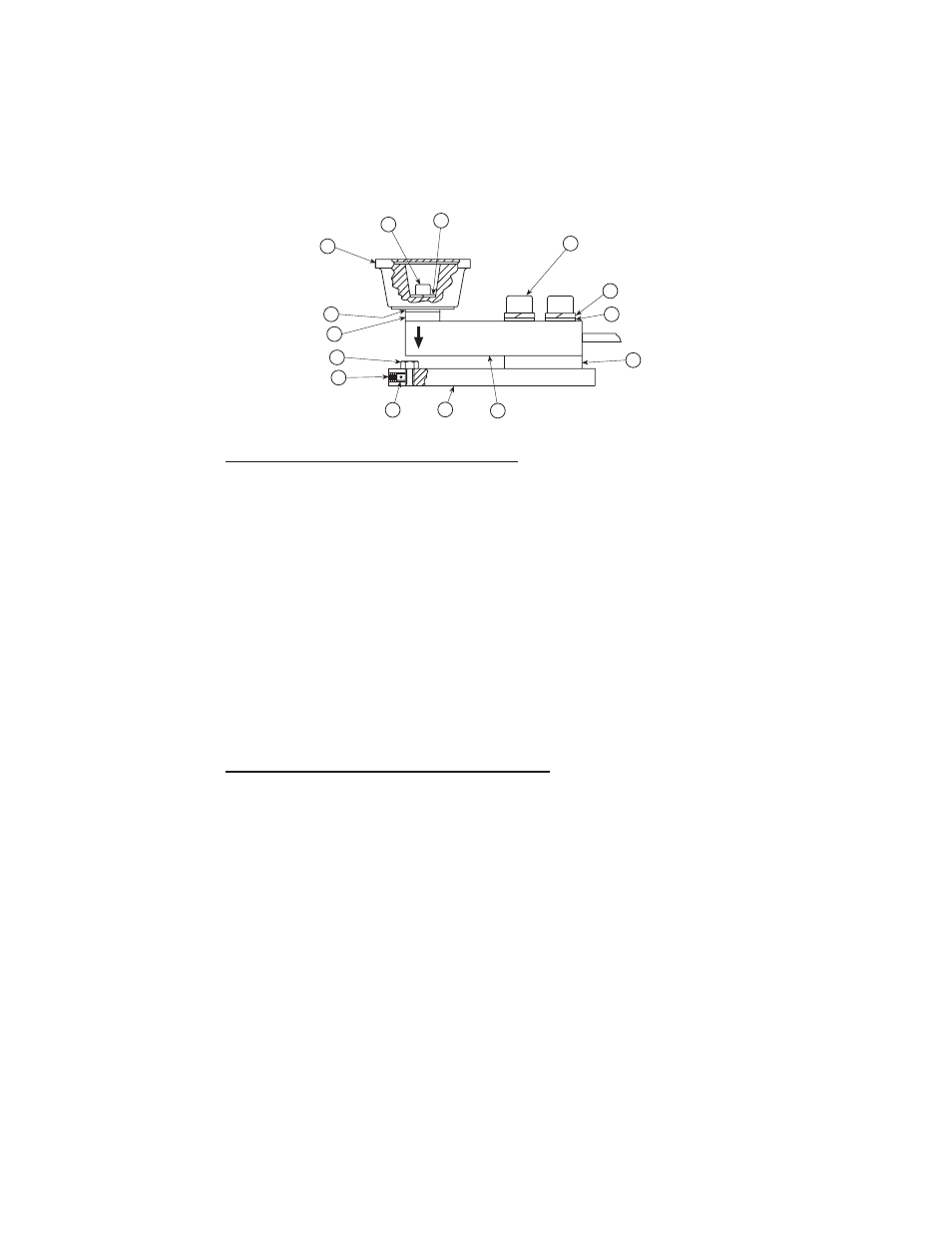

MILD STEEL RL50210TA/65059 500 LB. CAPACITY
No. Description
Qty.
Replacement Part Numbers
RL50210
65059
1 ..... Vibration Mount ......................... 1 ............. 18244 ......................... 18244
2 ..... Socket Head Cap Screw ........... 1 ............. 32185 ......................... 32185
3 ..... Lock Washer ............................. 1 ............. 15167 ......................... 15167
4 ..... Socket Hd. Load Cell Bolts ....... 2 ............. 15069 ......................... 15069
5 ..... 1/2" Lock Washer ..................... 2 ............. 15167 ......................... 15167
6 ..... Deflection Spacer ...................... 1 ............. 17754 ......................... 18260
7 ..... Shear Beam Load Cell .............. 1 ............. See Load Cell Guide
8 ..... Base Plate ................................. 1 ............. 18248 ......................... 18248
9 ..... Nylon Plug ................................ 1 ............. 18246 ......................... 18246
10 ... Socket Head Set Screw ............ 1 ............. 14949 ......................... 14949
11 ... Mach. Screw Overld. Stop ........ 1 ............. 14886 ......................... 14886
12 ... Loading Spacer ......................... 1 ............. 18259 ......................... 18239
13 ... 1/2" Flat Washer ....................... 3 ............. 15173 ......................... 15173
STAINLESS STEEL RL50210TA/65059 500 LB. CAPACITY
No. Description
Qty.
Replacement Part Numbers
RL50210
65059
1 ..... Vibration Mount .......................... 1 ............. 18244 .......................... 18244
2 ..... Socket Head Cap Screw ............ 1 ............. 32280 .......................... 32280
3 ..... Lock Washer .............................. 1 ............. 15168 .......................... 15168
4 ..... Socket Hd. Load Cell Bolts ........ 2 ............. 15065 .......................... 15065
5 ..... 1/2" Lock Washer ...................... 2 ............. 15168 .......................... 15168
6 ..... Deflection Spacer ....................... 1 ............. 18411 .......................... 18383
7 ..... Shear Beam Load Cell ............... 1 ............. See Load Cell Guide
8 ..... Base Plate .................................. 1 ............. 18382 .......................... 18382
9 ..... Nylon Plug ................................. 1 ............. 18246 .......................... 18246
10 ... Socket Head Set Screw ............. 1 ............. 14950 .......................... 14950
11 ... Mach. Screw Overld. Stop ......... 1 ............. 14887 .......................... 14887
12 ... Loading Spacer .......................... 1 ............. 18410 .......................... 18381
13 ... 1/2" Flat Washer ........................ 3 ............. 15170 .......................... 15170
1
2
3
4
5
6
7
8
11
10
9
12
13
13
9
