Practical hints
Replacing bulbs
Correct headlamp adjustment is extremely
important. To check and readjust a head-
lamp, follow the steps described:
̈ Park the vehicle on a level surface
25 feet (7.6 m) from a vertical test
screen or wall.
̈ Switch the headlamps on
(
୴ page 138).
If the beam does not show a beam pattern
as indicated in the figure left, then follow
the steps below:
̈ Open hood ( ୴ page 326).

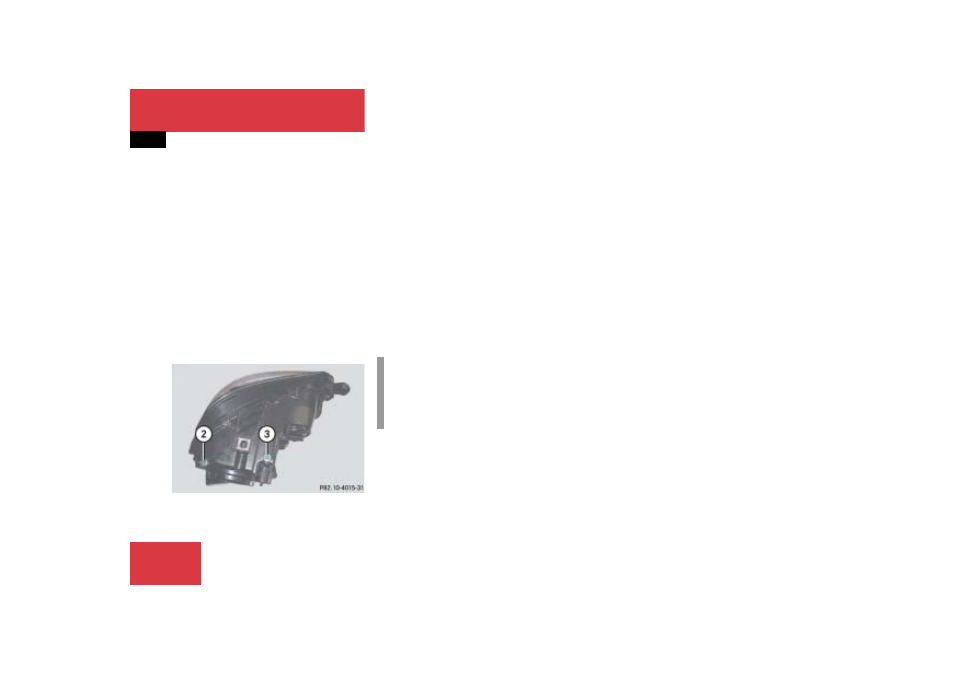

2 Headlamp vertical adjustment screw
3 Headlamp vertical adjustment screw
̈ Always turn adjustment screws 2
and 3 simultaneously for vertical ad-
justment until the headlamp is adjust-
ed as shown
1. Turn clockwise for
upward movement and counterclock-
wise for downward movement.
Graduations:
screw 2: 0.50° pitch
screw 3: 0.67° pitch
The left and right headlamps must be ad-
justed individually.
i
If it is not possible to obtain a proper
headlamp adjustment, have the system
checked at an authorized
Mercedes-Benz Light Truck Center.
