Components of the KISS-Stor 0/5
26 KISS-Stor 0/5 – User’s Manual
SATA Removable Drive Carrier
The SATA removable drive carrier is used for internally mounting of a low-profile,
3.5-inch form factor hard disk drive into an undersized half-height, 5.25-inch
peripheral bay of the KISS-Stor 0/5.
1
6
5
4
3 2

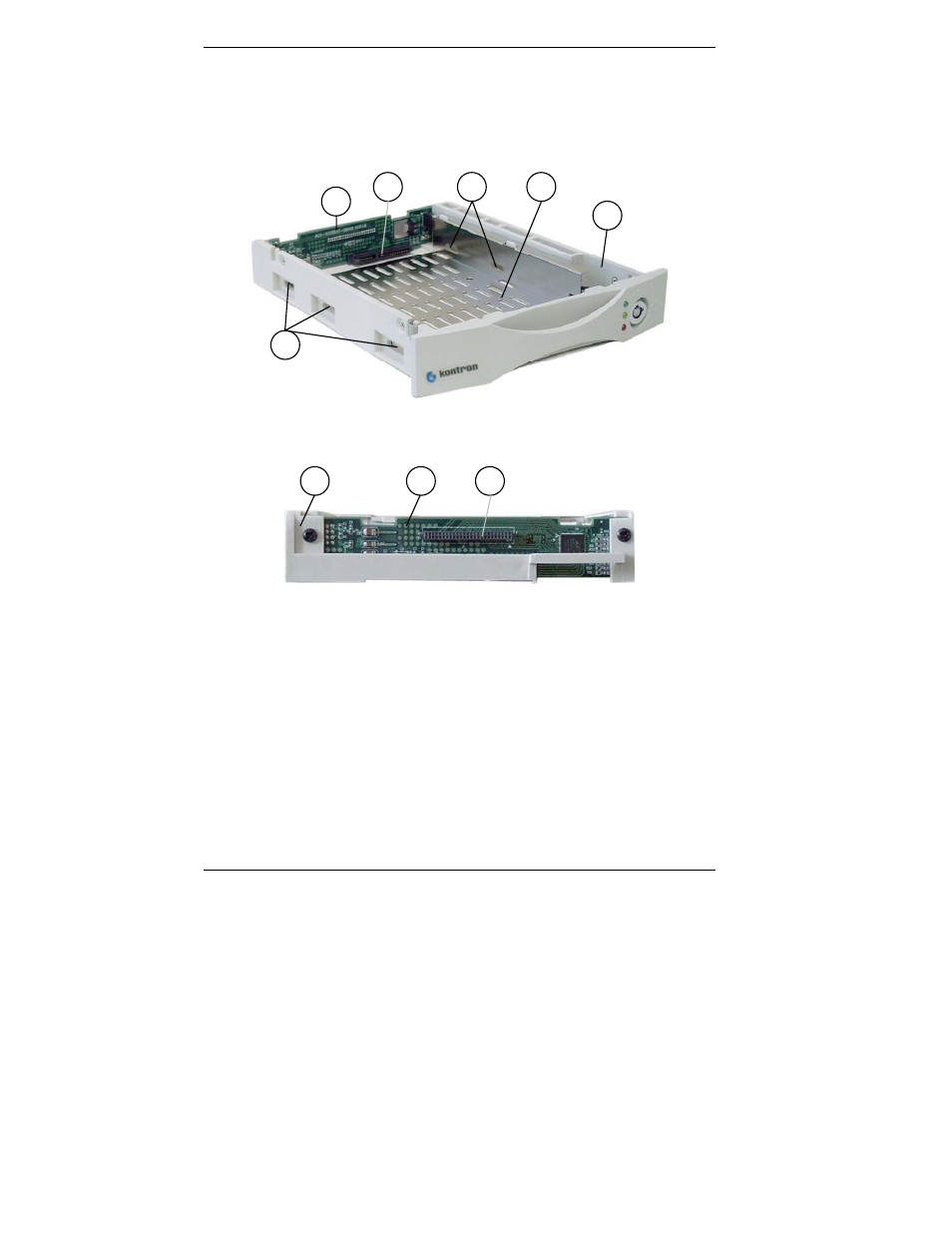

Fig. 12: SATA removable drive carrier
6 7 1
Fig. 12a: Rear side of the SATA removable drive carrier
Legend for Fig. 12 and 12a:
1 SATA removable drive carrier
2 Receiving frame for drive mounting
3 2x elongated holes on the right side
for HDD mounting
4 3x elongated holes on the left side
for HDD mounting
5 Serial ATA and power connector
6 PCB on the rear side of the drive
carrier
7 Docking connector of the drive
carrier
