Product Description
KISS-Stor 0/5 – User’s Manual 21
Rear View
1
2
4 5
7
3
6
Top Side
Buttom Side

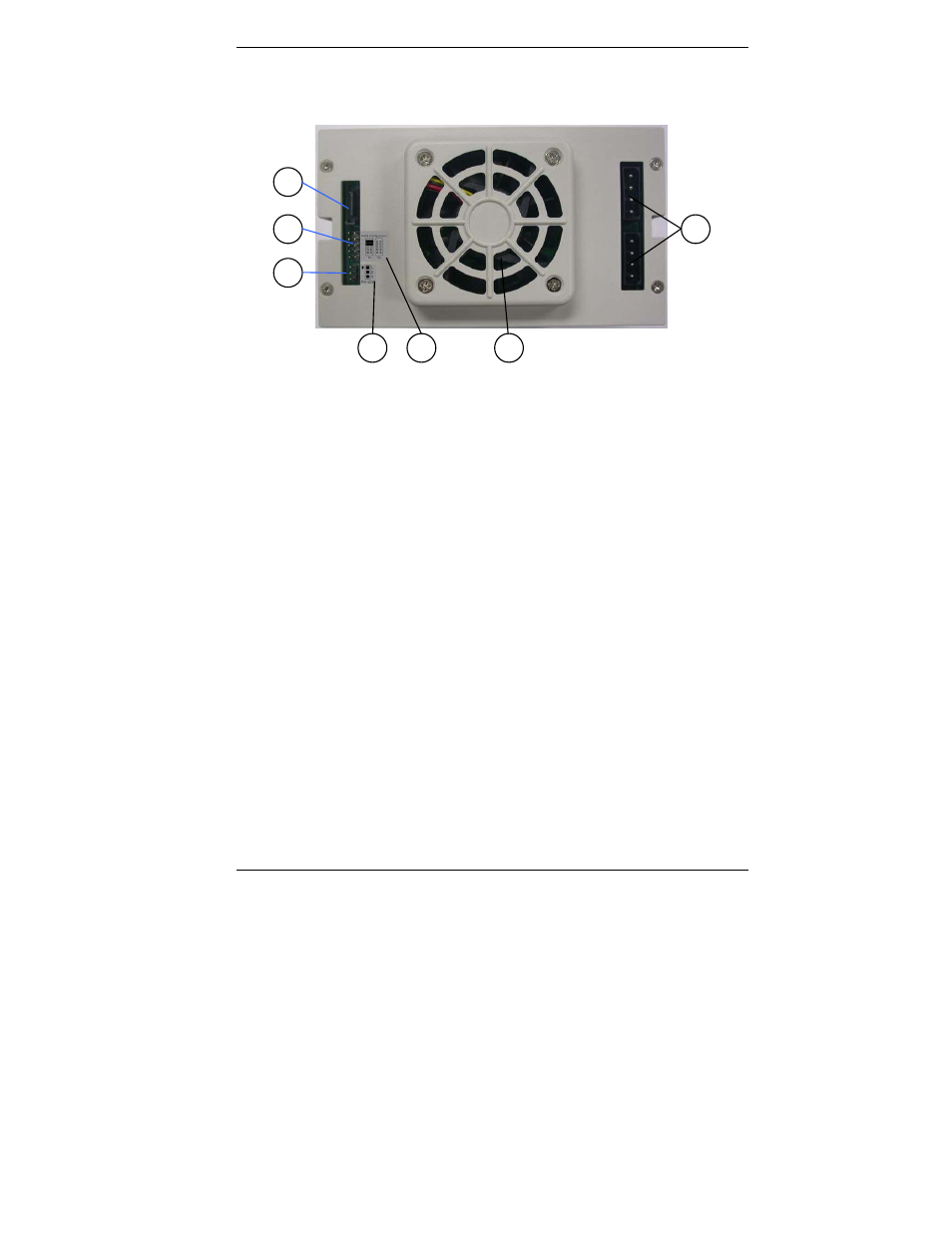

Fig. 7: KISS-Stor 0/5 – Rear side
1 SATA interface connector
2 RAID level configuration jumper pins
3 Serial RS232 connector (3-pin)
(terminal port)
4 Label with marking of the serial 3-pin
connector (on PCB) (in order to
connect properly the serial connecting
cable)
5 Label for RAID 0 or RAID 5
configuration (as information
only)
6 Cooling fan openings
7 2x 4-pin power connectors
SATA Interface Connector
This connector allows you to connect the RAID subsystem to the SATA interface
of the computer via the supplied SATA cable. The
SATA cable is the route used
for reading and writing to the array.
Power Connectors
The power connectors allows you to connect the RAID subsystem to the power
supply of the computer. In order to provide stable power, we recommend to
connect both power connectors of the RAID subsystem to the power supply.
