Product Description
KISS-Stor 0/5 – User’s Manual 19
Front View
Each drive carrier can hold a one-inch high 3.5-inch form factor SATA disk drive.
This makes it easy to hot swap a drive in the event of a failure, without affecting
the status of the remaining drives.
1
2
3

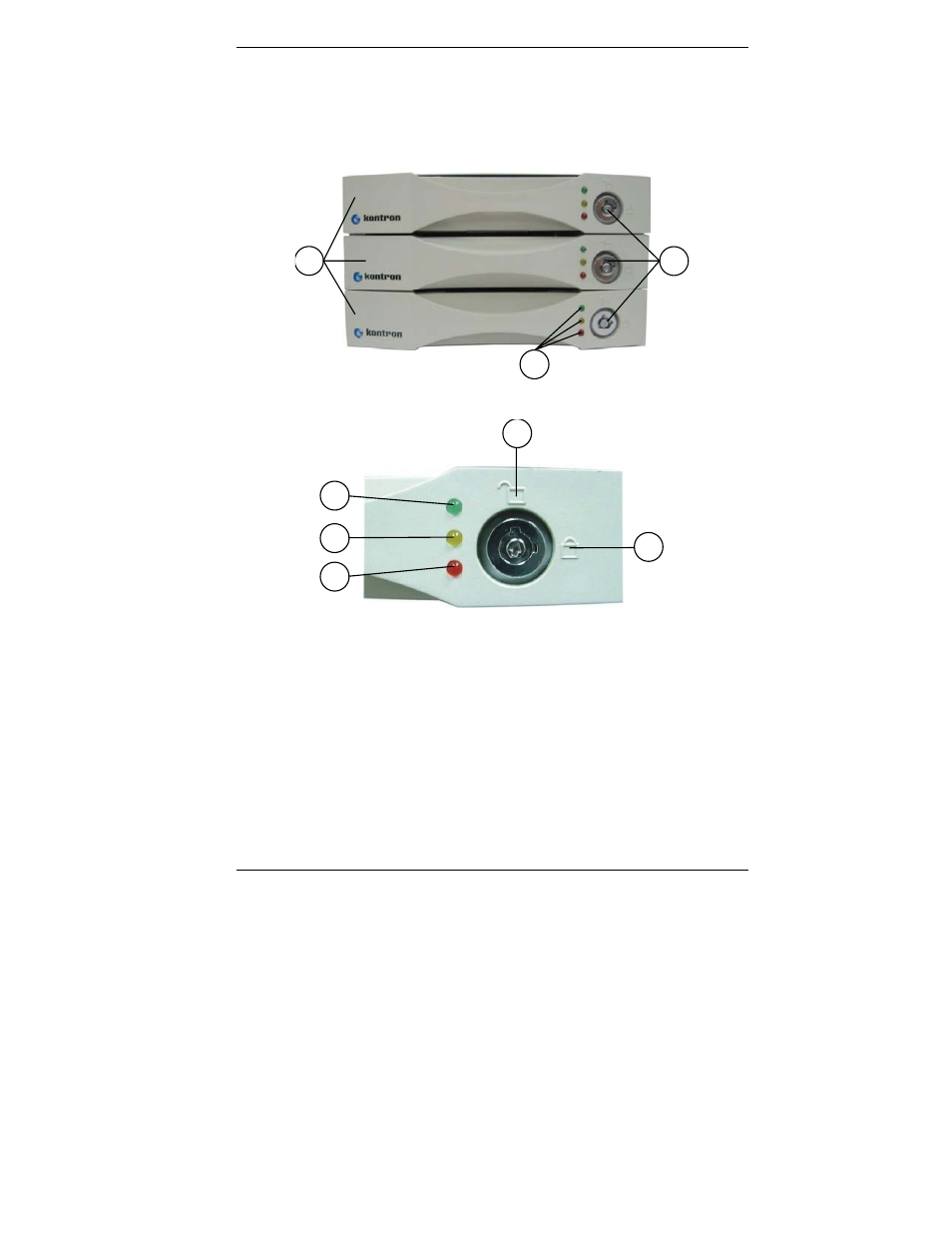

Fig. 5: KISS-Stor 0/5 – Front view
6
4
5
7
8
Fig. 5a: Detail: disk activity LED indicators
Legend for Fig. 3 and 3a:
1 3x drive carrier
2 Disk activity LED indicators
3 Drive carrier lock
4 Drive carrier lock - Unlocked
orientation
5 Drive carrier lock - Locked
orientation
6 Green disk activity LED indicator
7 Amber disk activity LED indicator
8 Red disk activity LED indicator
