13. Standard Interfaces – Pin Assignments KISS 1U Short – User’s Guide (V1.10)

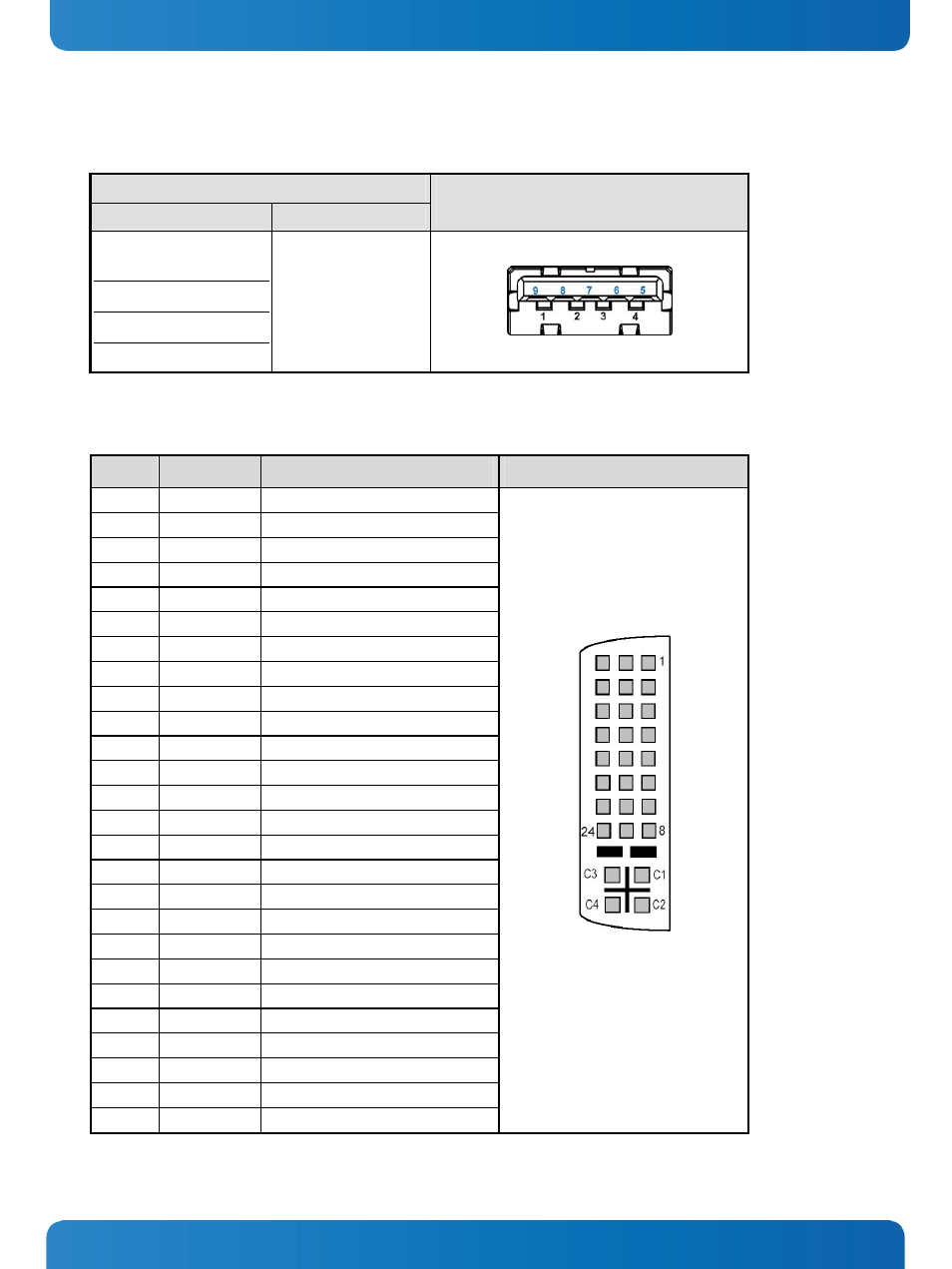

13.1.6. USB Port (3.0)
Pin Signal Name
USB 2.0 contact pins USB 3.0 contact pins
9-pin USB Socket
Type A Version 3.0/2.0
1 VCC,
fused (900 mA max.)
2 Data-
3 Data+
4 GND
5 StdA_SSRX-
6 StdA_SSRX+
7 GND_DRAIN
8 StdA_SSTX-
9 StdA_SSTX+
13.1.7. DVI-I (Single Link) Interface
Pin Signal Name Description DVI-I Connector (female)
1 TMDS2– Differential TMDS Data 2–
2 TMDS2+ Differential TMDS Data 2+
3
GND TMDS 2/4 Shield
4–5 NC
6 DVI_SCL DDC EDID data clock
7 DVI_SDA DDC EDID data
8 DVI_VS Analog VSYNC
9 TMDS1– Differential TMDS Data 1–
10
TMDS1+ Differential TMDS Data 1+
11 GND TMDS Shield
12–13 NC
14 DVI_5V 5V / 100mA Power Supply
15 GND Ground
16 DISPDET Hot Plug Detection
17 TMDS0– Differential TMDS Data 0–
18 TMDS0+ Differential TMDS Data 0+
19 GND TMDS Shield
20–21 NC
22 GND TMDS Shield
23 TMDSSCL+ Differential TMDS Clock+
24 TMDSSCL- Differential TMDS Clock -
C1 DVI_R Analog red
C2 DVI_G Analog green
C3 DVI_B Analog blue
C4 DVI_HS Analog HSYNC
C5–C6 GND Ground
17
Note: The +5V supply is fused.
