7. Product Description KISS 1U Short – User’s Guide (V1.10)
7.1. Front Side
The system is available as rackmount version.

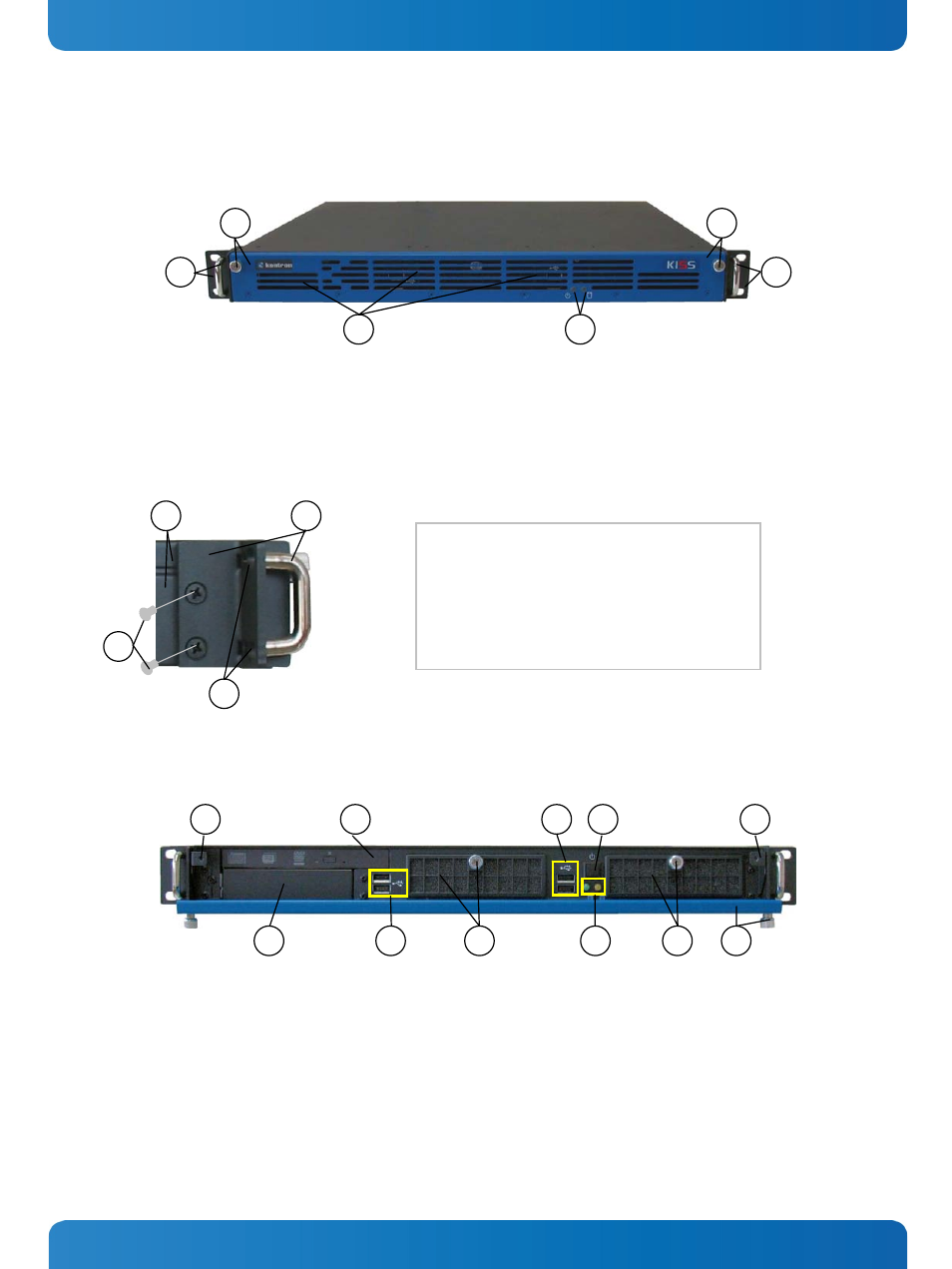

Fig. 6: Front side (rackmount version) with closed front access door
3 2
1 1
4 4
1 19" rack mountable bracket with handle
2 Air grilles
3 Light diffusors for HDD and Power LED indicators
4 Front access door with fastening screws
You can adapt your system to a desktop unit by removing the two 19" rack mountable brackets with handle (one off on
each side).
2
4
3
1
4 Screws for fastening the 19" rack mountable
bracket
3 Holes for mounting in rack cabinets
2 Chassis and cover of the KISS 1U Short
1 19" rack mountable bracket with handle
Fig. 7: 19" rack mountable bracket with fastening screws
The power button, the power- and HDD-LED, 4x USB-interfaces, 2x Filter mat holder and the equipped drives are located
on the front panel of the KISS 1U Short platform behind the front access door.
1 1 2 4 5
3 4 7 6 7 8
Fig. 8: Front side (rackmount version) with opened front access door
1 Buffer for the front access door
2 D1: 5.25”external accessible Slim-line drive bay (shown with
one DVD-drive installed)
3 D2: 3.5" external accessible drive bay (shown without drive
installed)
4 2x2 USB 2.0
5 Power button
6 LED indicators (Power-LED and HDD-LED)
7 2x Filter mat holder with captive knurled screws
8 Front access door with fastening screws
