11. Slide Rails (Option)

KISS 1U Short – User’s Guide (V1.10)

11.1.1. Slide Rails Accessories and Assembling

The “Slide Rails” set consists of following elements:

One pair of slide rails

One pair of short front brackets (with screws and washers)

One pair of long rear brackets (with screws and washers)

2x bar nut kits

8x M4x6 flathead screws

For assembling refer to Fig. 30.

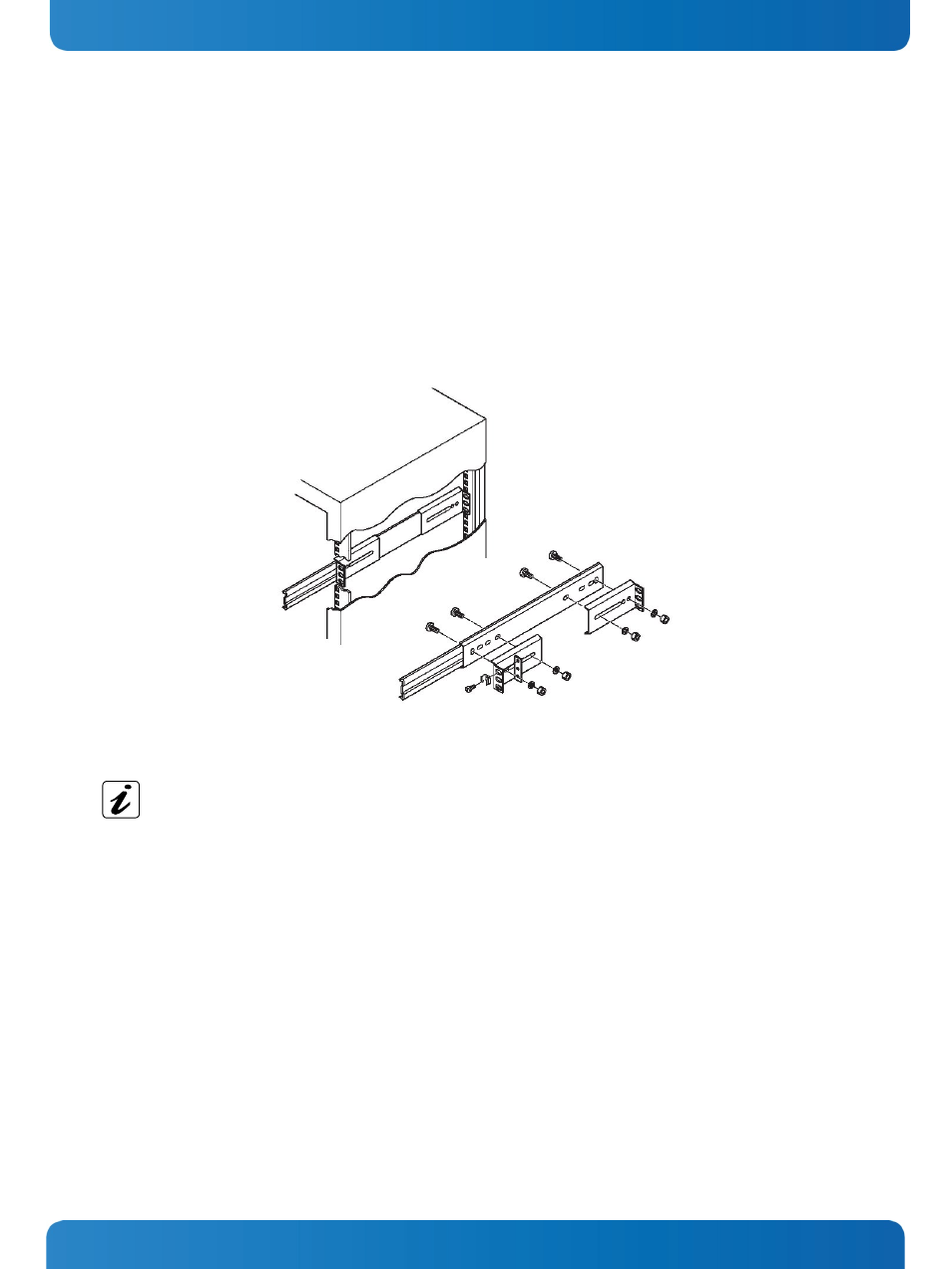

Fig. 30: Assembling the “Telescopic Rail” set

Short brackets are usually used at the front of the chassis and long brackets at the rear.
